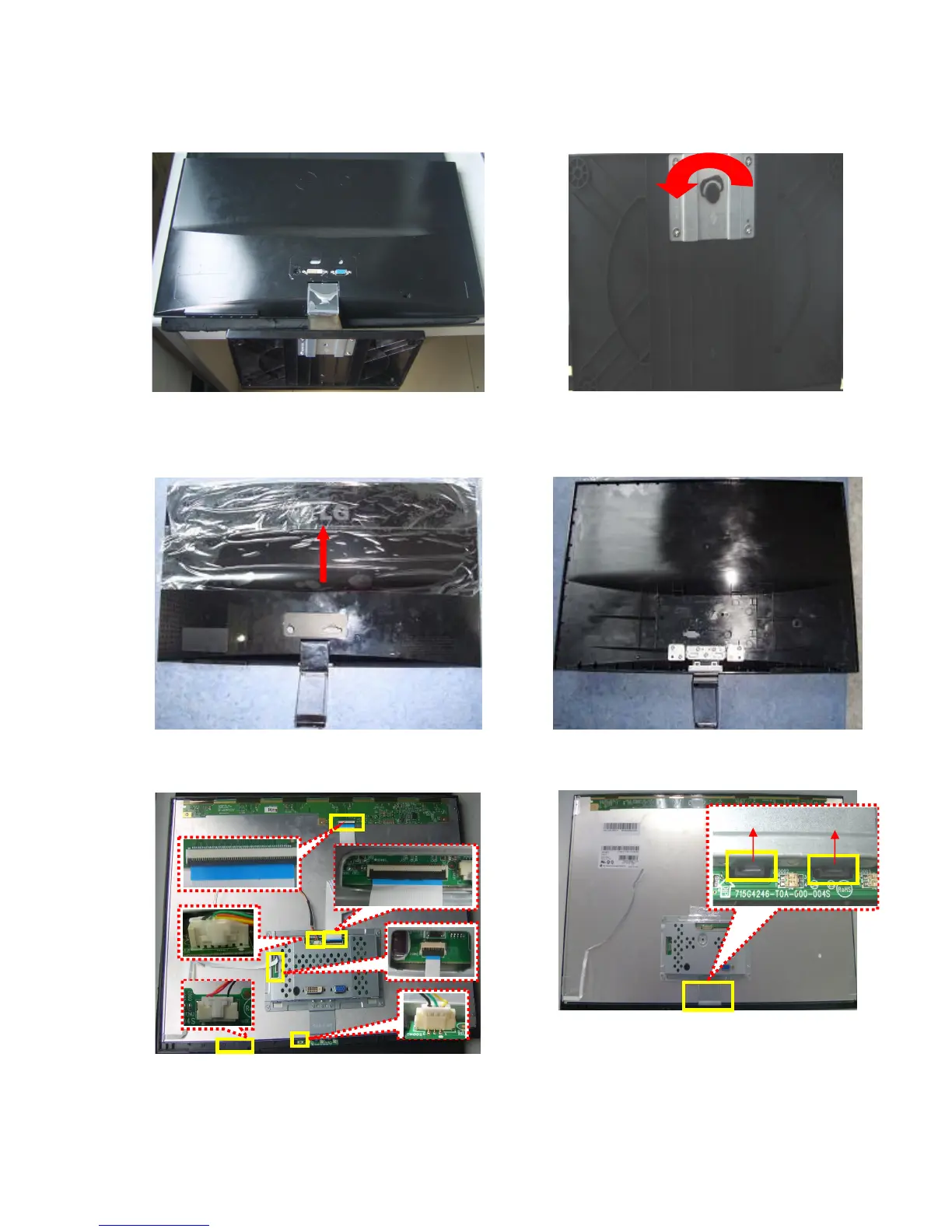

DISASSEMBLY-Set
#1
Put the monitor on a soft flat.
#2
Remove the base ass’y.
Turn the screw by using the screw handle.
#3
Remove the Rear Cover ass’y.
#4
The Rear Cover ass’y.
#5
Disconnect all the wires/FFC cable.
#6
Remove the main frame.
To Next Page
