LG FLATRON - Exploded View Parts List

- 33 -

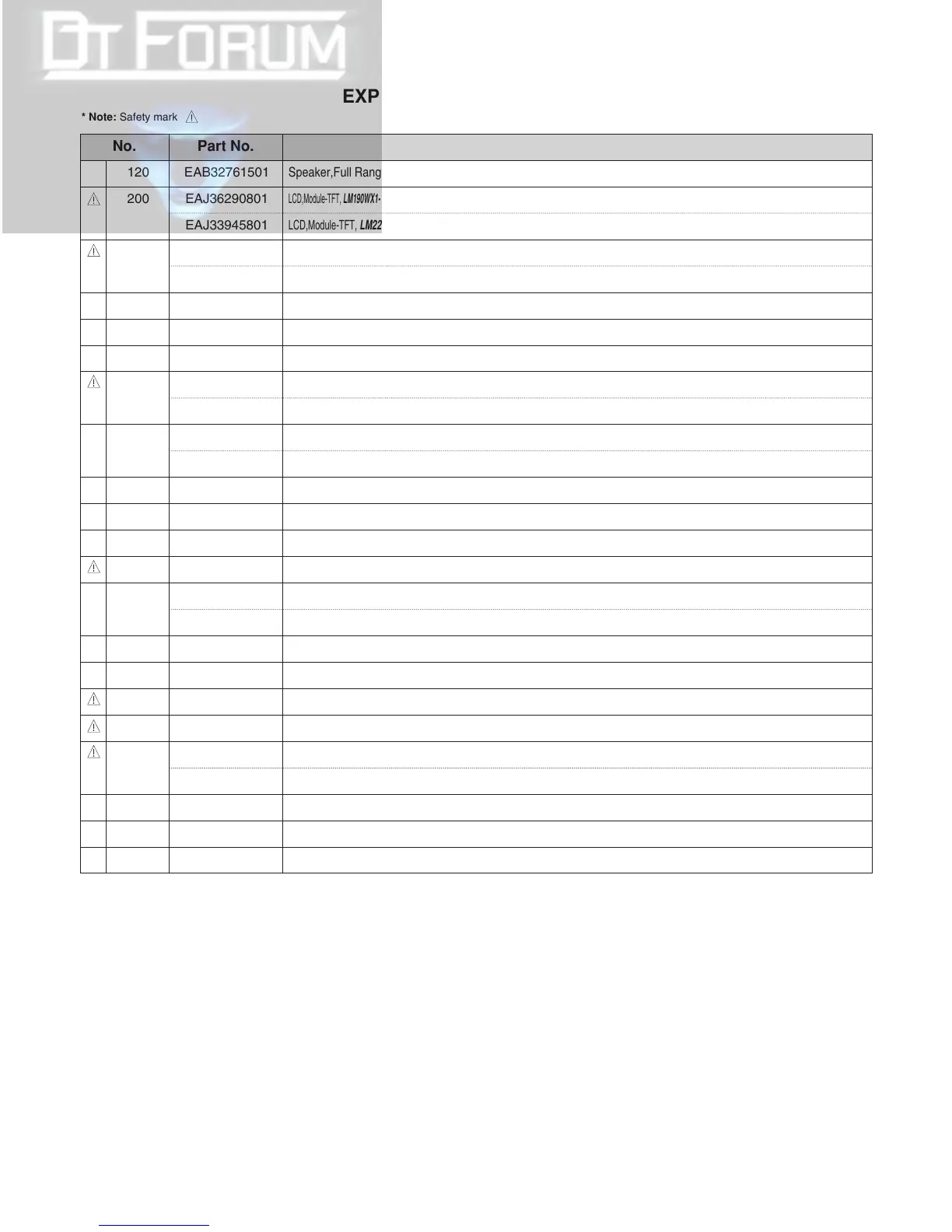

EXPLODED VIEW PARTS LIST
120 EAB32761501 Speaker,Full Range, L07030A-027 ND35 3W 16OHM 85DB 300HZ 30 X 70 X 22 SOLDER SUNLINK COMPANY
200 EAJ36290801 LCD,Module-TFT, LM190WX1-TLC1 DRIVER 19INCH 1440X900 300CD COLOR 72% 16/10 850:1 5ms, MAGNA source D-IC, OKI gate D-IC, TLI T-con, 160/160, P7 LG PHILIPS LCD
EAJ33945801
LCD,Module-TFT, LM220WE1-TLA1 DRIVER 22.0INCH 1680X1050 300CD COLOR 72% 16/10 800:1 160/160 5ms 4LAMPS LG PHILIPS LCD
300 ABJ32323201 Cabinet Assembly, M198W . 19" M198W CABINET ASSY BLACK
ABJ32411701 Cabinet Assembly, M228WA M228WA_CABINET ASS'Y 21" M228WA CABINET ASS'Y (22")
310 MES35944701 Indicator, MOLD PMMA NON MX8W PMMA NON MX8W Model IR lens
320 MES35721501 Indicator, MOLD PMMA LED M198W PMMA NON M198W LED LENS
330 MBG35721401 Button, MOLD ABS HF-350 POWER M198W ABS 1KEY M198W POWER KNOB (BK)
400 ACQ32323322
Cover Assembly,Rear, m198wa BB3 19" M198WA BACK COVER ASSY_7KEY_SOUTH AMERICA_W/SVC LABEL
ACQ32411823 Cover Assembly,Rear, M228WA M228WA BACK_COVER ASS'Y ETC M228WA BACK COVER ASSY _SOUTH AMERICA VERSION(WITH SVC LABEL)
410 ADV31008062 Frame Assembly, M198WA-BTH LP69G(BB3) 19" METAL FRAME ASSY M198WA BB3, NON EU
ADV31008064 Frame Assembly, M228WA-BTH LP69G(BB3) ETC METAL FRAME ASSY M228WA BB3,NON EU
420 MEY35721301 Knob, MOLD ABS HF-350 SUB 7KEY M198W M198W TACT KNOB BK
430 MGJ35722501 Plate,Shield, PRESS SBHG 0.6T FRAME EGI M198W LAMP WIRE SHIELD (0.6T)
500 EBR35410101 PCB Assembly,Sub, LED & P/SW T.T LP69G M198WA/M208WA/M228WA AEUGLPX BRAND
510 6871TPT318G
PCB Assembly,Power, PLLM-M602C POWER T.T CMO L225W 22"Wide Scaler Dimming FREQENCY CHANGE LG INNOTEK CO., LTD
520 EBU35388016 Main Total Assembly, M198WA-BMH for Chile BRAND LP69G
EBU35388018 Main Total Assembly, M228WA-BMH for Chile BRAND LP69G
530 EBR35409501 PCB Assembly,Sub, CONTROL T.T LP69G M198WA/M208WA/M228WA AEUGLPX BRAND
600 MKJ33981413 Remote Controller, COMPLEX LP69B LS1R W/O TXT , W/O PIP , CONTINENT OF ASIA
900 AAN31022505 Base Assembly, STAND m228w/22ls4r CL81 m228w/22ls4rHINGE COVER ASSY
910 MAZ35721601 Bracket, MOLD ABS HF-350 COVER M198W - ABS M198W STAND BODY (BLACK)
920 AAN32323501 Base Assembly, BASE M198W - M8W MODEL STAND BASE ASSY
AAN32323502 Base Assembly, BASE M228W - M8W MODEL STAND BASE ASSY& METAL BASE
930 MCK30233401 Cover, MOLD HIPS 51SF LS1R HIPS 51SF LS1R-holder cable management
940 MCK30246601 Cover, MOLD ABS 380 15LS1R ABS, HF-380 15LS1R-Cover hinge L
950 MCK30246901 Cover, MOLD ABS 380 15LS1R ABS, HF-380 15LS1R Cover hinge R
Description
Part No.
No.
* Note: Safety mark
