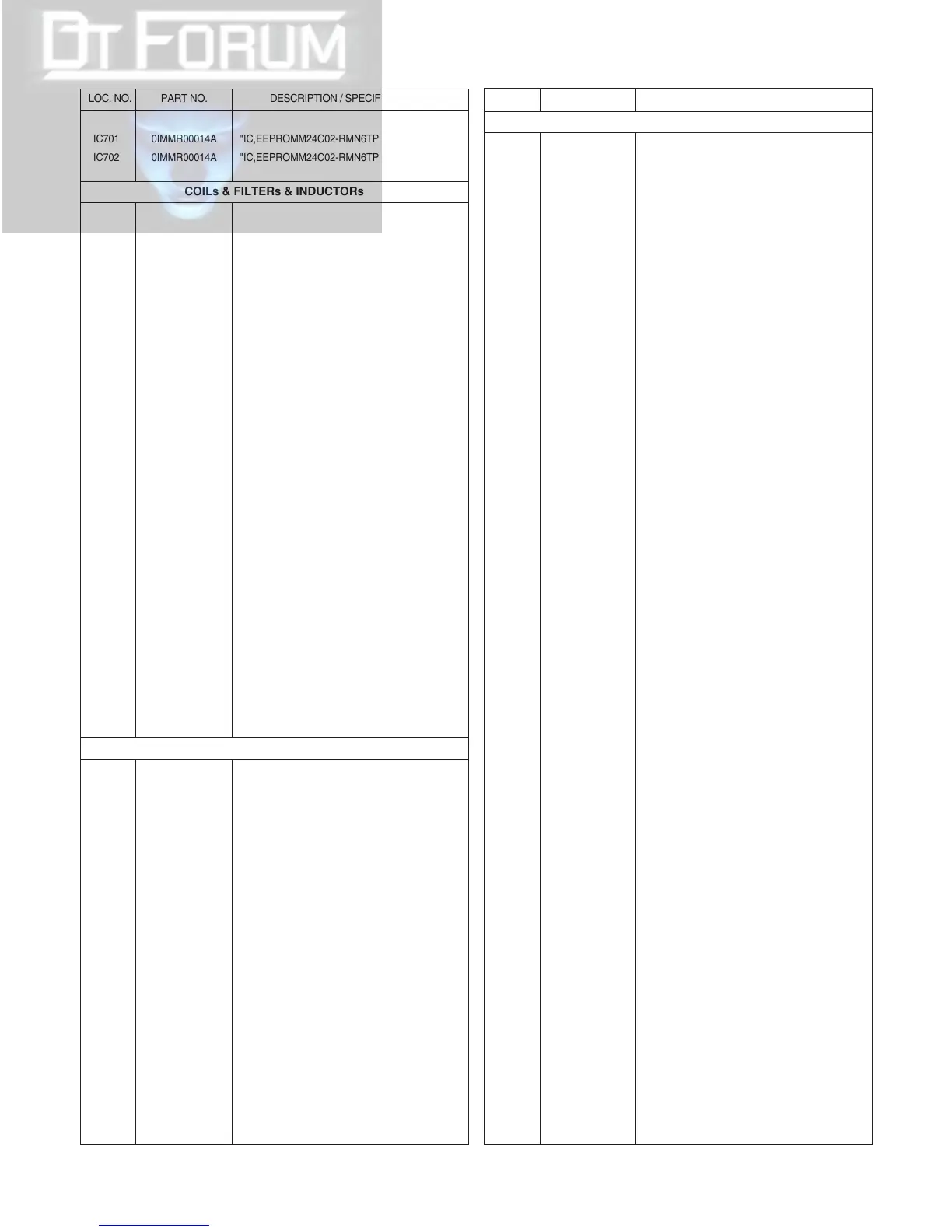

LG FLATRON - Page 37

LOC. NO. PART NO. DESCRIPTION / SPECIFICATION
IC701 0IMMR00014A "IC,EEPROMM24C02-RMN6TP 2KBIT 256X"
IC702 0IMMR00014A "IC,EEPROMM24C02-RMN6TP 2KBIT 256X"
L1104 61409B0002A "Coil,ChokeDBF-1030A 30uH - 2.5A 1"
L500 61409B0002A "Coil,ChokeDBF-1030A 30uH - 2.5A 1"
L501 61409B0002A "Coil,ChokeDBF-1030A 30uH - 2.5A 1"
L503 61409B0002A "Coil,ChokeDBF-1030A 30uH - 2.5A 1"
L504 61409B0002A "Coil,ChokeDBF-1030A 30uH - 2.5A 1"
L1000 6210TCE001A "Filter,BeadHB-1S2012-080JT 8OHM 2"
L1001 6210TCE001A "Filter,BeadHB-1S2012-080JT 8OHM 2"
L1006 6210TCE001A "Filter,BeadHB-1S2012-080JT 8OHM 2"
L1007 6210TCE001A "Filter,BeadHB-1S2012-080JT 8OHM 2"
L1113 6210TCE001G "Filter,BeadHH-1M3216-501JT 500OHM"
L1114 6200J00005E "Filter,BeadHH-1M2012-601JT 600OHM"
L1115 6210TCE001G "Filter,BeadHH-1M3216-501JT 500OHM"
L1116 6200J00005E "Filter,BeadHH-1M2012-601JT 600OHM"
L1117 6200J00005E "Filter,BeadHH-1M2012-601JT 600OHM"
L505 6210TCE001G "Filter,BeadHH-1M3216-501JT 500OHM"
L506 6210TCE001G "Filter,BeadHH-1M3216-501JT 500OHM"
L507 6210TCE001G "Filter,BeadHH-1M3216-501JT 500OHM"
L508 6210TCE001G "Filter,BeadHH-1M3216-501JT 500OHM"
L509 6210TCE001G "Filter,BeadHH-1M3216-501JT 500OHM"
L510 6210TCE001G "Filter,BeadHH-1M3216-501JT 500OHM"
L511 6210TCE001G "Filter,BeadHH-1M3216-501JT 500OHM"
L512 6210TCE001G "Filter,BeadHH-1M3216-501JT 500OHM"
L900 6210TCE001A "Filter,BeadHB-1S2012-080JT 8OHM 2"
L901 6210TCE001A "Filter,BeadHB-1S2012-080JT 8OHM 2"
L1002 0LC0233002A "Inductor,Multilayer,ChipFI-B2012-"
L1003 0LC0233002A "Inductor,Multilayer,ChipFI-B2012-"
L1004 0LC0233002A "Inductor,Multilayer,ChipFI-B2012-"
Q1102 0TR387500AA "TR,Bipolar2SC3875S(ALY) NPN 5V 60"
Q300 0TR387500AA "TR,Bipolar2SC3875S(ALY) NPN 5V 60"
Q302 0TR150400BA "TR,Bipolar2SA1504S(ASY) PNP -5V -"
Q303 0TR150400BA "TR,Bipolar2SA1504S(ASY) PNP -5V -"
Q304 0TR387500AA "TR,Bipolar2SC3875S(ALY) NPN 5V 60"
Q305 0TR387500AA "TR,Bipolar2SC3875S(ALY) NPN 5V 60"
Q500 0TR150400BA "TR,Bipolar2SA1504S(ASY) PNP -5V -"
Q501 0TR387500AA "TR,Bipolar2SC3875S(ALY) NPN 5V 60"
Q600 0TR387500AA "TR,Bipolar2SC3875S(ALY) NPN 5V 60"
Q601 0TR387500AA "TR,Bipolar2SC3875S(ALY) NPN 5V 60"
Q602 0TR387500AA "TR,Bipolar2SC3875S(ALY) NPN 5V 60"
Q603 0TR150400BA "TR,Bipolar2SA1504S(ASY) PNP -5V -"
Q606 0TR150400BA "TR,Bipolar2SA1504S(ASY) PNP -5V -"
Q607 0TR150400BA "TR,Bipolar2SA1504S(ASY) PNP -5V -"
Q307 EBK32753101 FETSI4925BDY P-CHANNEL MOSFET -30
AR400 0RJ1000C687 "Resistor,ArrayRCA86TRJ100R 100OHM"
AR401 0RJ1000C687 "Resistor,ArrayRCA86TRJ100R 100OHM"
AR410 0RJ1000C687 "Resistor,ArrayRCA86TRJ100R 100OHM"
AR411 0RJ1000C687 "Resistor,ArrayRCA86TRJ100R 100OHM"
R1000 0RJ0752D477 "Resistor,ChipMCR03EZPF750 75OHM 1"
R1001 0RJ0752D477 "Resistor,ChipMCR03EZPF750 75OHM 1"
R1002 0RJ4703D677 "Resistor,ChipMCR03EZPJ474 470KOHM"
R1003 0RJ4703D677 "Resistor,ChipMCR03EZPJ474 470KOHM"
R1004 0RJ4703D677 "Resistor,ChipMCR03EZPJ474 470KOHM"
R1005 0RJ0752D477 "Resistor,ChipMCR03EZPF750 75OHM 1"
R1006 0RJ1502D677 "Resistor,ChipMCR03EZPJ153 15KOHM"
R1007 0RJ1502D677 "Resistor,ChipMCR03EZPJ153 15KOHM"
R1008 0RJ4703D677 "Resistor,ChipMCR03EZPJ474 470KOHM"
R1009 0RJ9101D677 "Resistor,ChipMCR03EZPJ912 9.1KOHM"
R101 0RJ1004D477 "Resistor,ChipMCR03EZPF105 1MOHM 1"
R1010 0RJ9101D677 "Resistor,ChipMCR03EZPJ912 9.1KOHM"
R1011 0RJ0752D477 "Resistor,ChipMCR03EZPF750 75OHM 1"
R1012 0RJ1002D677 "Resistor,ChipMCR03EZPJ103 10KOHM"
R1013 0RJ1002D677 "Resistor,ChipMCR03EZPJ103 10KOHM"
R1014 0RJ0752D477 "Resistor,ChipMCR03EZPF750 75OHM 1"
R1015 0RJ0752D477 "Resistor,ChipMCR03EZPF750 75OHM 1"
R1016 0RJ1202D677 "Resistor,ChipMCR03EZPJ123 12KOHM"
R1017 0RJ1202D677 "Resistor,ChipMCR03EZPJ123 12KOHM"
R102 0RJ1000D677 "Resistor,ChipMCR03EZPJ101 100OHM"
R1021 0RJ0152D677 "Resistor,ChipMCR03EZPJ150 15OHM 5"
R1022 0RJ0152D677 "Resistor,ChipMCR03EZPJ150 15OHM 5"
R103 0RJ1000D677 "Resistor,ChipMCR03EZPJ101 100OHM"
R105 0RJ1201D677 "Resistor,ChipMCR03EZPJ122 1.2KOHM"
R106 0RJ1002D677 "Resistor,ChipMCR03EZPJ103 10KOHM"
R107 0RJ4700D677 "Resistor,ChipMCR03EZPJ471 470OHM"
R108 0RH0000D622 "Resistor,ChipMCR10EZHJ000 0OHM 5%"
R109 0RJ1000D677 "Resistor,ChipMCR03EZPJ101 100OHM"
R1103 0RJ1101D677 "Resistor,ChipMCR03EZPJ112 1.1KOHM"
R1104 0RJ1001D677 "Resistor,ChipMCR03EZPJ102 1KOHM 5"
R1105 0RJ1000D677 "Resistor,ChipMCR03EZPJ101 100OHM"
R1106 0RJ1000D677 "Resistor,ChipMCR03EZPJ101 100OHM"
R1107 0RJ1002D677 "Resistor,ChipMCR03EZPJ103 10KOHM"
R111 0RJ0472D677 "Resistor,ChipMCR03EZPJ470 47OHM 5"
R1110 0RJ1002D677 "Resistor,ChipMCR03EZPJ103 10KOHM"
R1115 0RJ6801D477 "Resistor,ChipMCR03EZPF682 6.8KOHM"
R1116 0RJ1053D477 "Resistor,ChipMCR03EZPF1053 105KOH"
R1117 0RJ1002D677 "Resistor,ChipMCR03EZPJ103 10KOHM"
R1118 0RJ1002D677 "Resistor,ChipMCR03EZPJ103 10KOHM"
R112 0RJ0472D677 "Resistor,ChipMCR03EZPJ470 47OHM 5"
R1130 0RJ1500D477 "Resistor,ChipMCR03EZPF151 150OHM"
R1131 0RJ0752D477 "Resistor,ChipMCR03EZPF750 75OHM 1"
R114 0RJ0472D677 "Resistor,ChipMCR03EZPJ470 47OHM 5"
R1140 0RJ1000D677 "Resistor,ChipMCR03EZPJ101 100OHM"
R1141 0RJ1001D677 "Resistor,ChipMCR03EZPJ102 1KOHM 5"
R1146 0RJ0102D677 "Resistor,ChipMCR03EZPJ100 10OHM 5"
R1147 0RJ3300D677 "Resistor,ChipMCR03EZPJ331 330OHM"
R115 0RJ0472D677 "Resistor,ChipMCR03EZPJ470 47OHM 5"
R1150 0RX0102K665 "Resistor,Metal Oxide FilmRSD02F4J"
LOC. NO. PART NO. DESCRIPTION / SPECIFICATION
- 37 -
COILs & FILTERs & INDUCTORs
TRANSISTORs & FETs
RESISTORs
