12

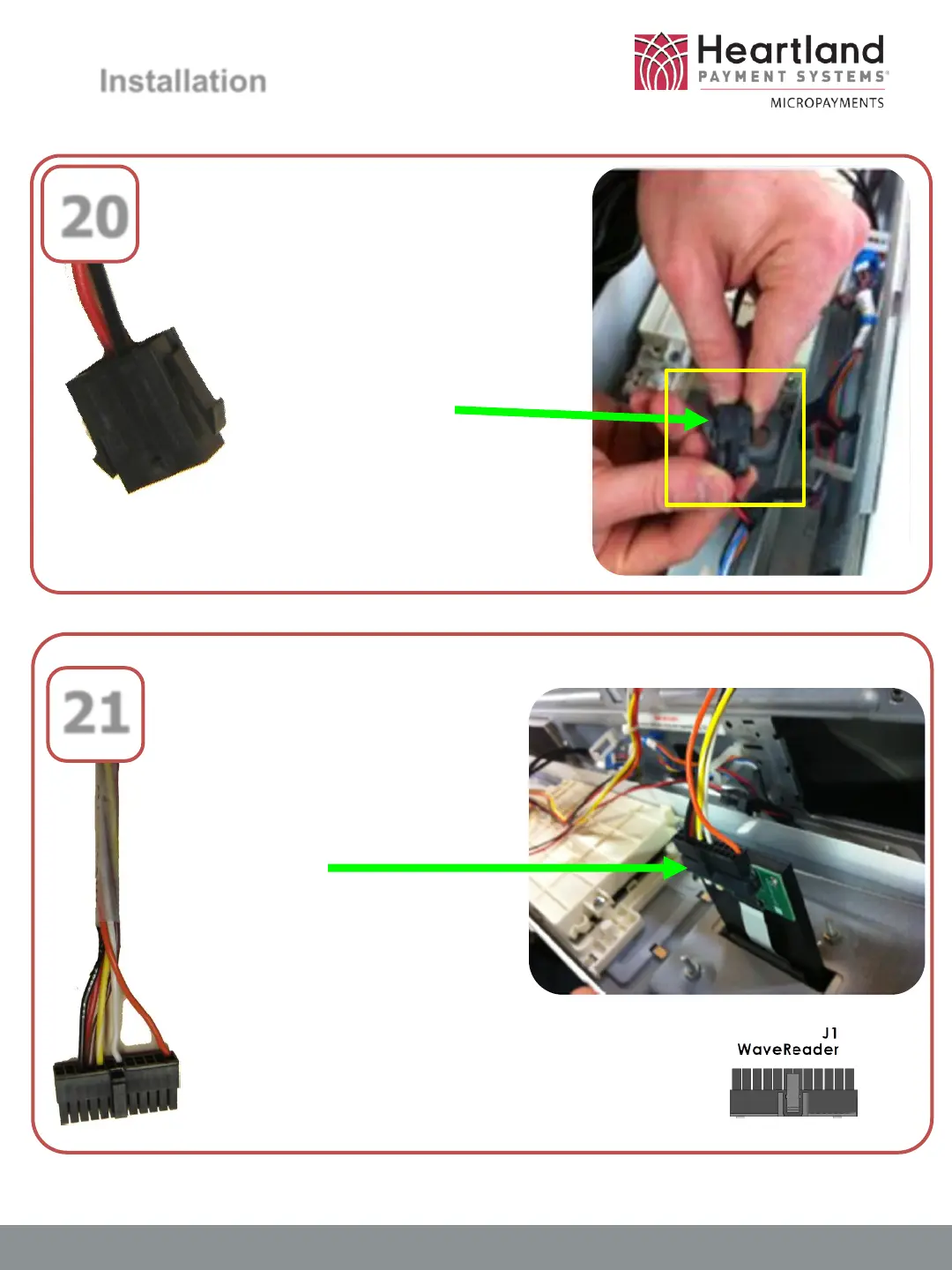

Installation
20
www.heartlandMicroPayments.com
21
Find the mating black
connector on the
WaveReader Interface
Cable and attach the
two together.
Attach the J3 (Black)
connector into the
mating connector on
the back of the
WaveReader Board as
shown.
The connector should
snap once in place.
