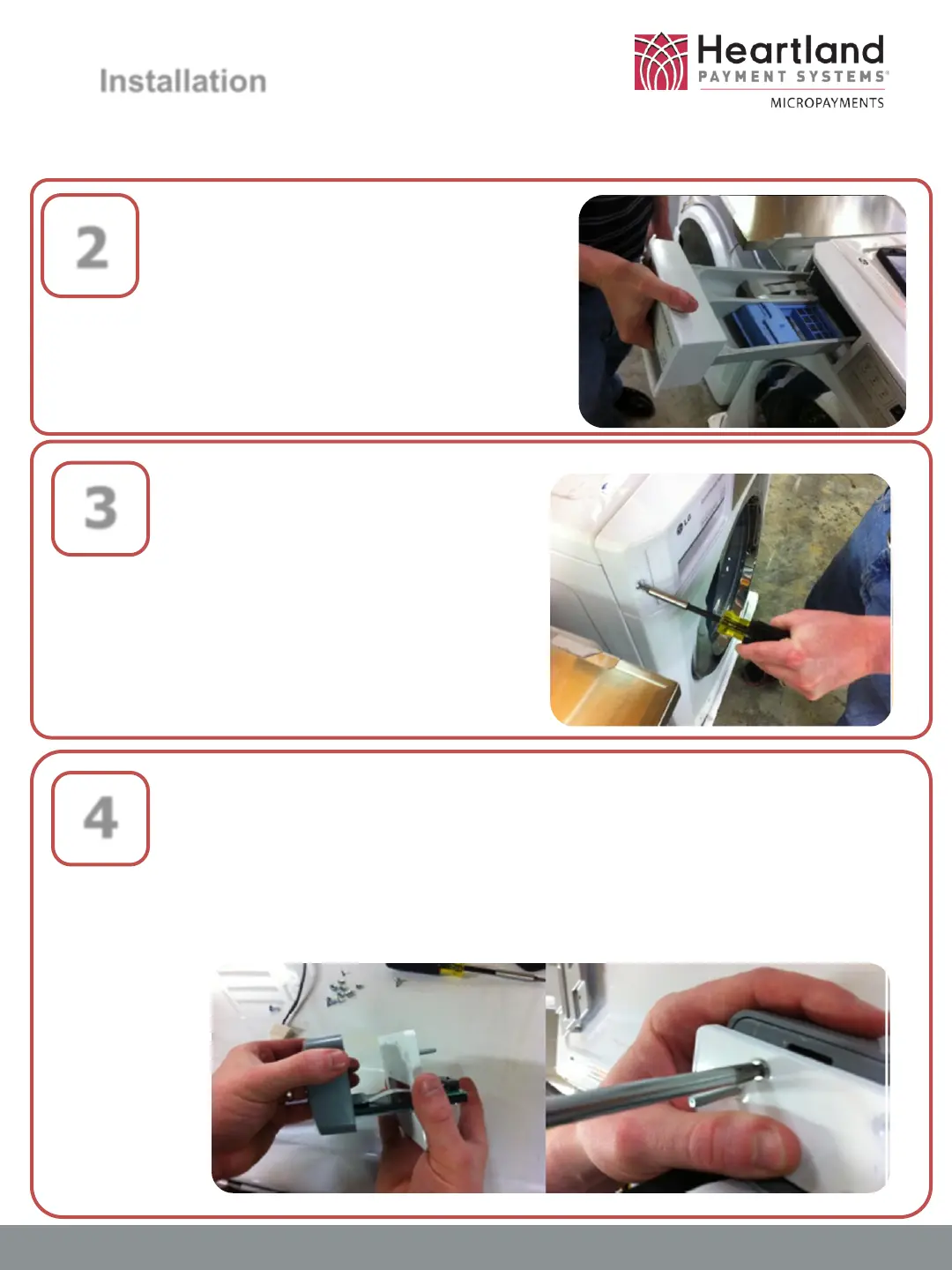

Installation
www.heartlandMicroPayments.com
3
2
Pull out and up on the
dispenser drawer, detaching
it from the machine.
Locate the two Pin-In-Star
security screws, one on
each side of the control
panel. Use the T20 Security
Pin-In-Star Driver. Set the
screws aside keeping them
close at hand.
4
Insert the WaveReader card guide through the LG
Bracket Adapter. Using the provided 6-32 Flat Head
Phillips Machine Screws attach the LG Bracket Adapter
onto the rear of the WaveReader in the 4 tapped holes.
