12
13
9

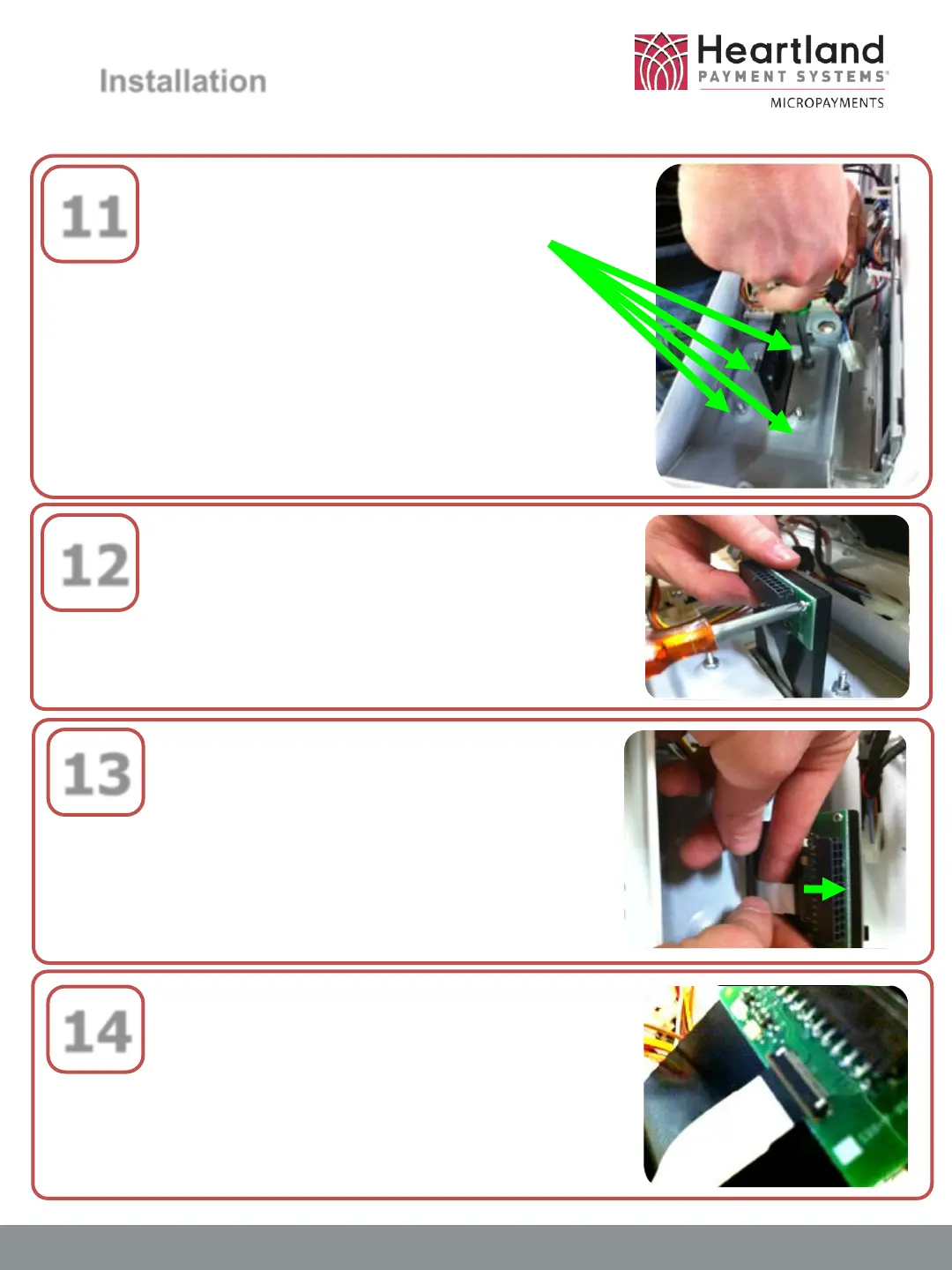

Installation
11
www.heartlandMicroPayments.com
Using the provided 8x32 Locking
Nuts, bolt in the Adapter
Bracket to the Control Panel.
Reattach the Circuit Board to the
Card Guide using a small Phillips
head screw driver.
Slide the Ribbon Cable into the
ribbon connector slot located on
the Circuit Board. Using your
thumb nail, lock the slide back into
place by pushing it back in the
direction of the arrow.
14
Check to see that the ribbon cable
is secured evenly and not at an
angle as not to cross connections
and short out a wire.
