Installation
8
www.heartlandMicroPayments.com
9
10

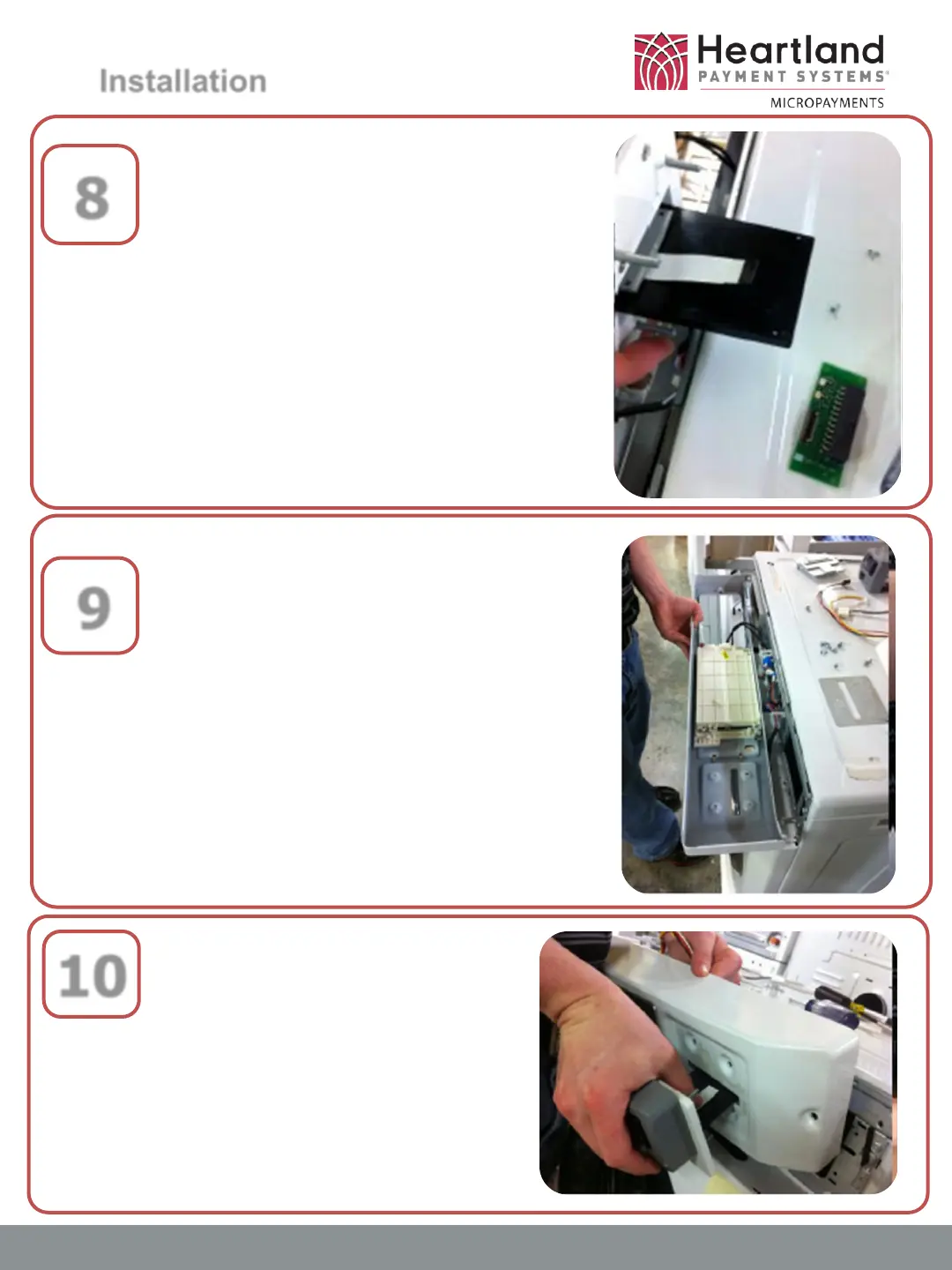

Detach the Circuit Board
from the WaveReader.
Keep it close by, as you
will need it soon.
Detach the control panel
from the machine and flip
downward as show, exposing
the controller box and wiring
harness.
With the WaveReader
attached to the LG Adapter
Bracket and the Circuit Board
Removed, slide the card
guide and ribbon cable
through the front of the
control panel as shown.
