23
PROGRAMMING MODE
NOTE
• Do not use , .
• It is only used in inspecting the machine.
Algorithm flow chart shows how to control programming mode.
Before program set, check the structure of programming mode.
1. Turn on/off toggle switch or Insert service card, for entering set up mode.
2. Press Whites button to move to the upper level.
3. Press Colors(+) or Perm.Press(-) button if you want to be at the same level.
4. Press Start button to enter the details of Set up, Diagnostic Tests.
is to set price value, time value, and vend type etc.
consists of line test, reset, free cycle, and kill cycle.
Is to collect the usage data.
Card / Coin type

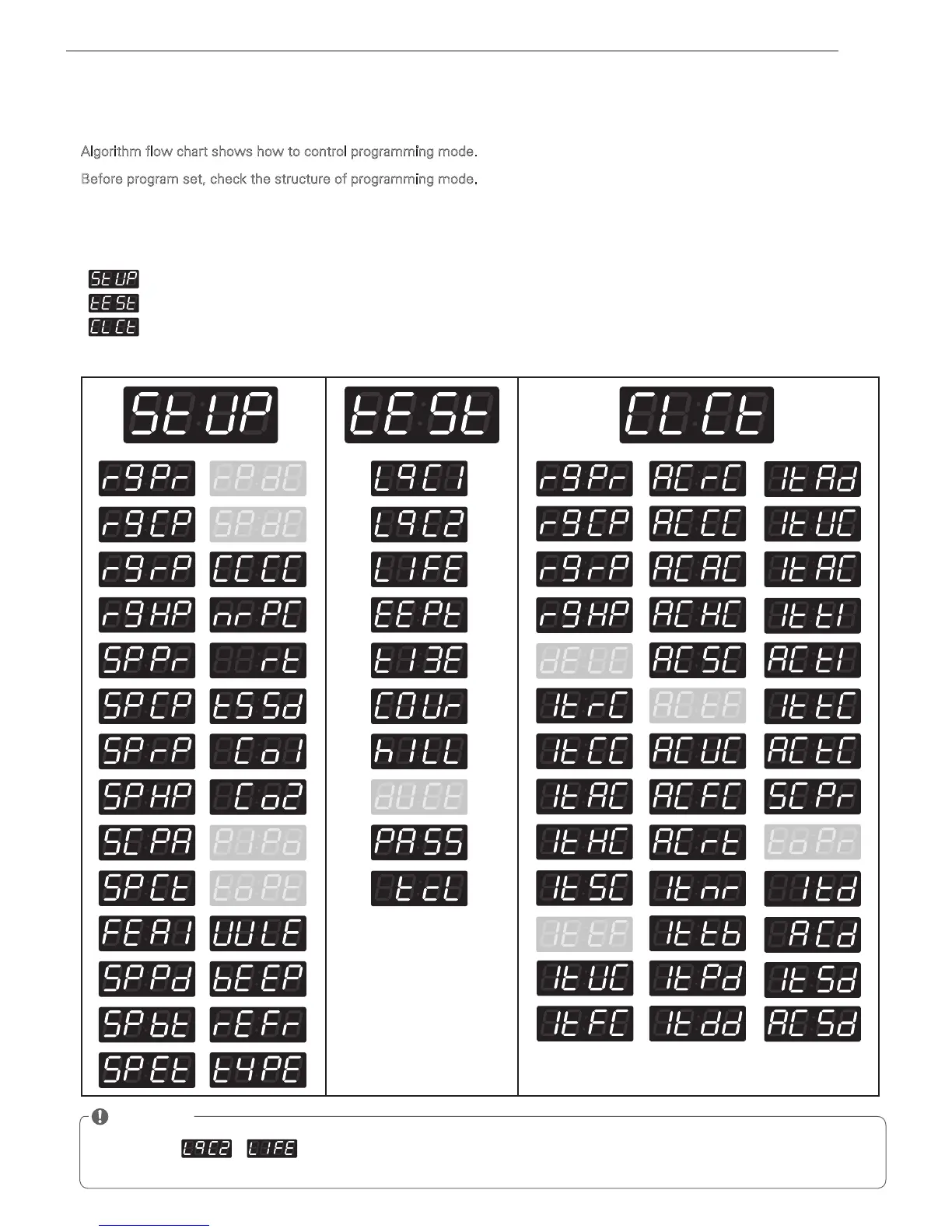

Structure of Programming mode
To Next Page
