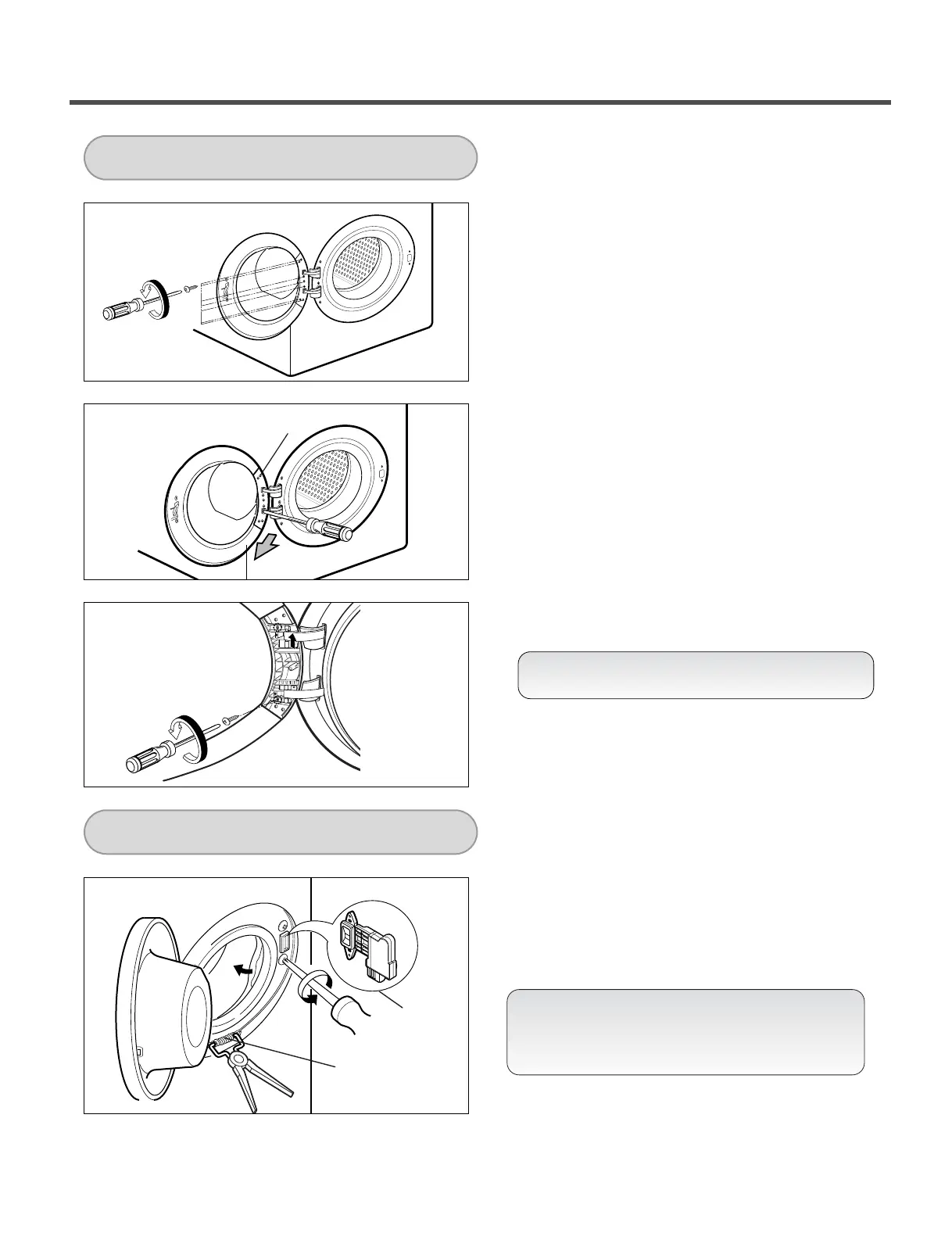

1. Open the DOOR.

2. Unscrew the 7 screws from the HINGE COVER.

3. Put a flat ( - ) screwdriver into the openng of the hinge, and

pull out the HINGE COVER.

4. Unscrew a screw from the lower side of DOOR.

5. Lift door and remove.

HINGE COVER

DOORASSEMBLY

1. Open the DOOR and disassemble the CLAMP

ASSEMBLY.

2. Unscrew the 2 screws.

3. Remove connector from DOOR S/W ASSEMBLY.

DOOR SWITCH

ASSEMBLY

CLAMP

ASSEMBLY

DOORLOCKSWITCHASSEMBLY

※※

Be careful! The door is heavy.

※※

NOTE

• Reconnect the connector after replacing the

DOOR SWITCH ASSEMBLY.
