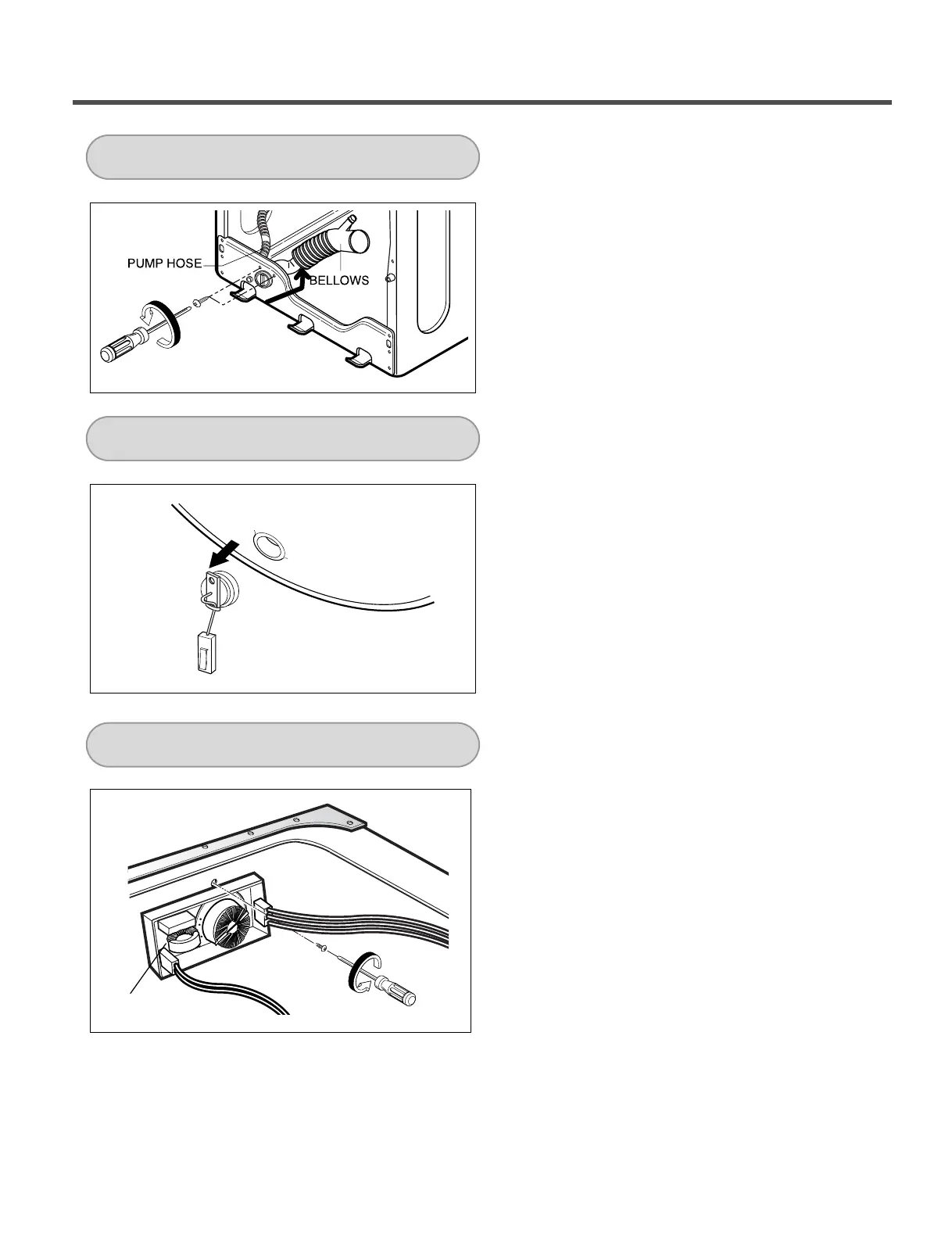

PUMP ASSEMBLY
THERMISTOR
1. Disassemble the CABINET COVER
(refer to page 33).
2.
Separate the PUMP HOSE and the BELLOWS
from the PUMP ASSEMBLY.
3. Unscrew 2 screws.
4.
Remove the PUMP ASSEMBLY in arrow
direction.
1. Disassemble the CABINET COVER
(refer to page 33).
2.
Unplug the white connector from the THERMISTOR.
3.
Pull it out by holding the bracket of the THERMISTOR.
1. Disassemble the CONTROL PANEL ASSEMBLY
(refer to page 29).
2. Disassemble the
TOP PLATE
ASSEMBLY
(refer to page 30).
3. Disassemble two (or three) connectors from
the NOISE FILTER.
4. Unscrew a screw from the TOP BRACKET.
