MOTOR ASSEMBLY
DAMPER

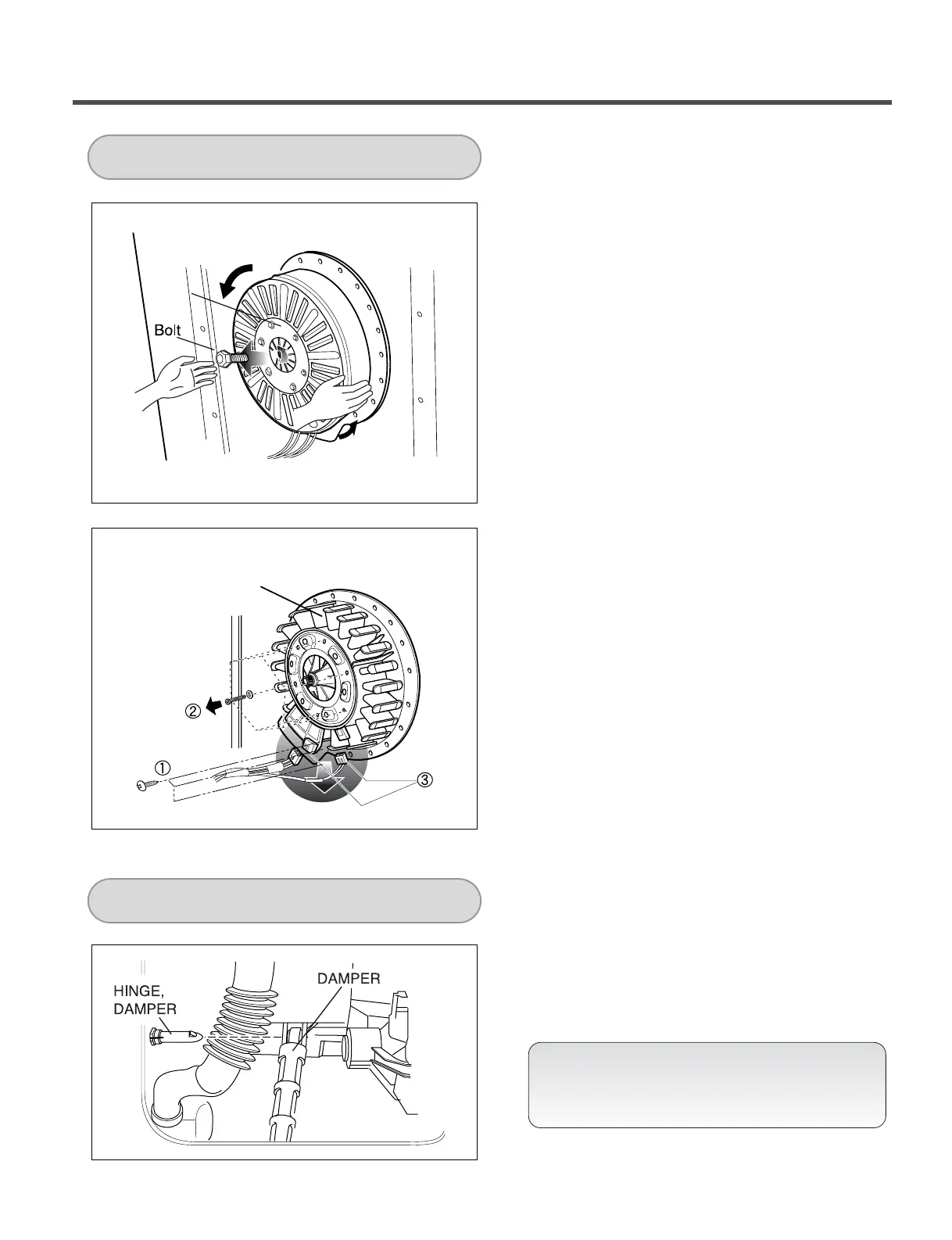

1.
Disassemble the BACK COVER.
2.
Remove the bolt.
3.
Pull out the ROTOR.
4.
Unscrew the 2 screws from the tub bracket.
5.
Remove the 6 bolts on the stator.
6.
Unplug the 2 connectors from the STATOR.
1.
Disassemble the CABINET COVER or BACK COVER.
2.
Disassemble the damper hinges from the tub
and base.
3.
Separate the dampers.
※※
NOTE
• Do not re-use an old damper pin. Always
replace it with a new one.
To Next Page
