33
1. Disassemble theCONTROL PANELASSE MBLY
(Refer to page 37)
-Single model-
-Stack model-
2. Disassemble the
TOP PLATE
ASSEMBLY
(Refer to page 38)
3. Disassemble theclampsand hoses.
4.
Disassemble the bellows at the lower side of DISPENSE R
1. Disassemble theCONTROL PANELASSE MBLY
(Refer to page 37)
2. Disassemble the
TOP PL ATE
ASSEMBLY
(Refer to page 38)
3.
Disassemble the 4 connectors from the VALVES .
4. Disassemble theclampsand hoses.
5. Unscrew the2 screwsin theback.
Connector Color
ྙ
Red Housing(OR-BK)
ྚ
White Housing (WH-BK)
ྛ
Blue Housing (GY-BK)
ྜ
Red Housing (BL-BK)

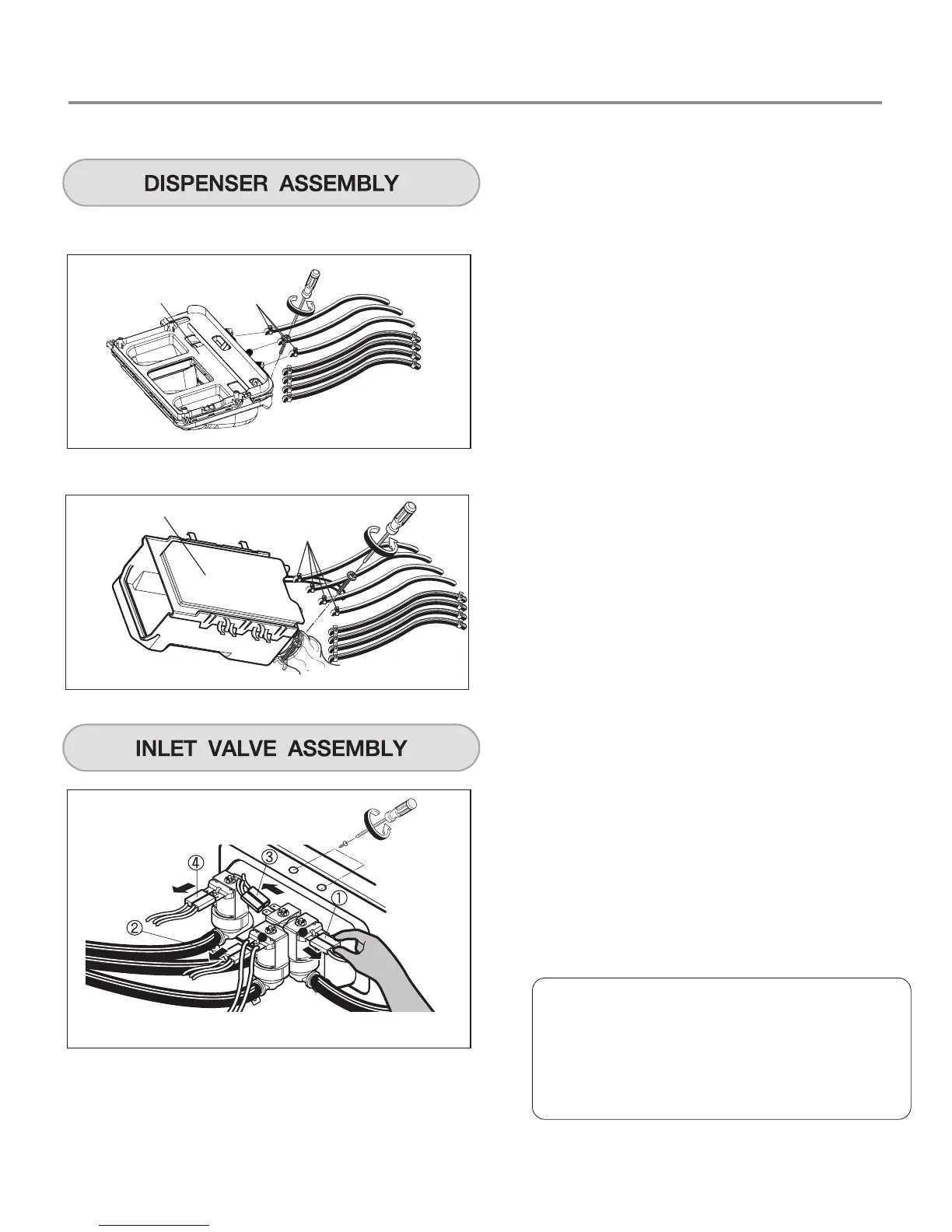

DISPENSER ASSEMBLY
Clamp
DISPENSER ASSEMBLY
Clamp
To Next Page
