LG GCWF1069QS1 - Motor and Damper Assembly Disassembly

45
38
ROTOR
MOTOR ASSEMBLY
DAMPER

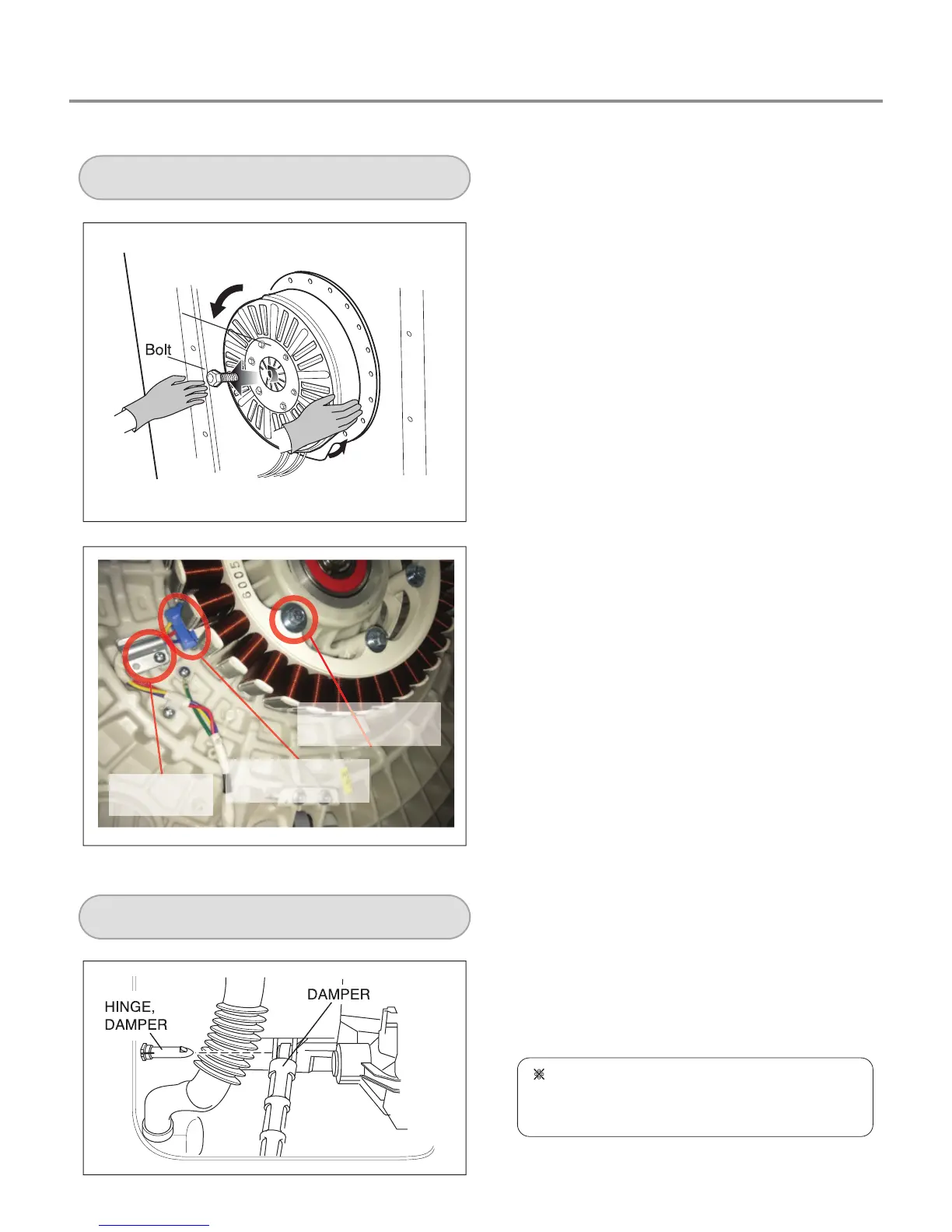

1. Disassemble the BACK COVER.
2. Remove the bolt.
3. Pull out the ROTOR.
4. Unscrew a screw from the bracket.
5.
Remove the 6 bolts on the stator.
6. Unplug the connector from the STATOR.
1. Disassemble the CABINET COVER or BACK COVER.
2. Disassemble the damper hinges from the tub
and base.
3.
Separate the dampers.
୔
NOTE
Do not re-use an old damper pin. Always
replace it with a new one.
