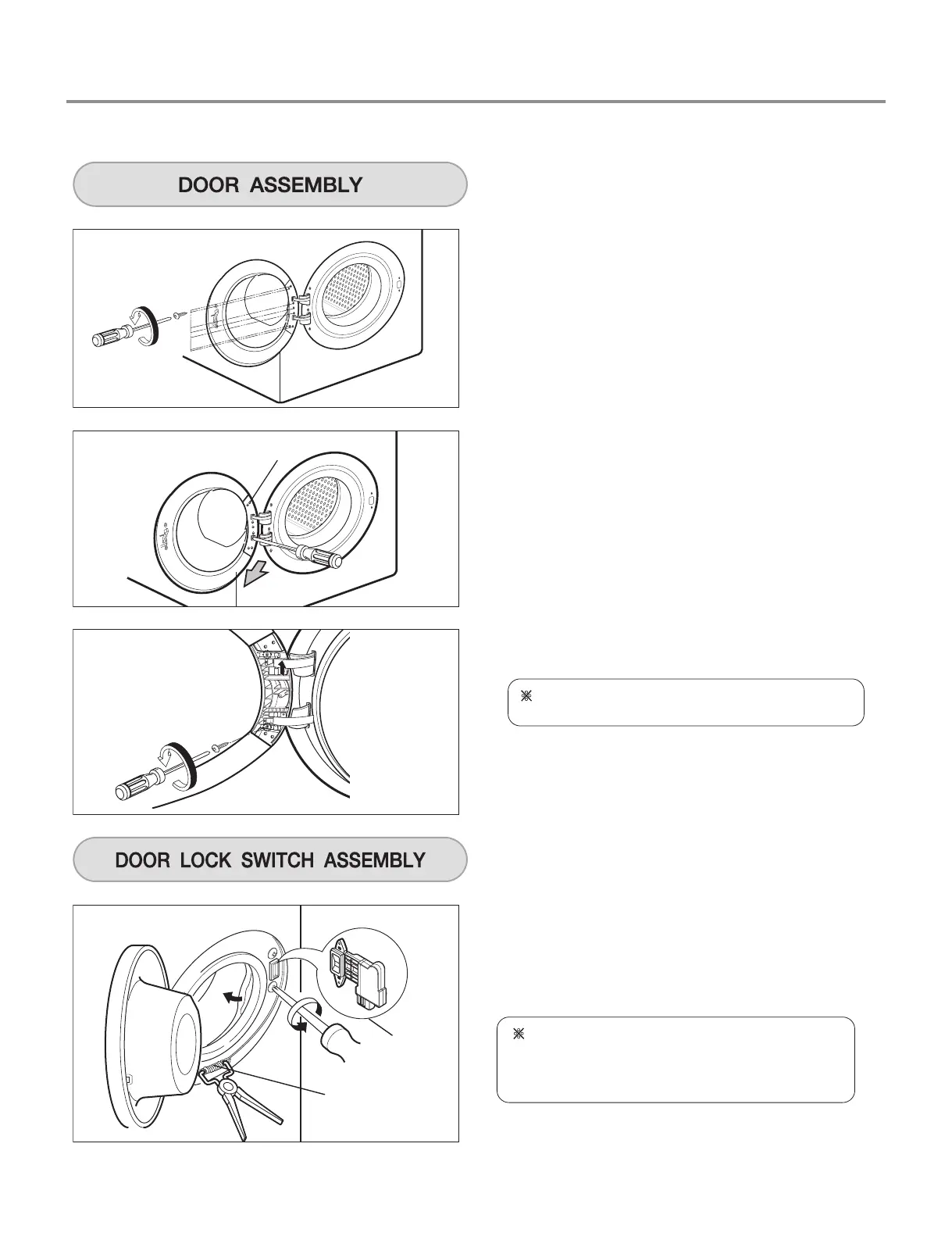

1. Open the DOOR.
2. Unscrew the 7 screws from the HINGE COVER.
3. Put a flat ( - ) screwdriver into the openng of the hinge, and
pull out the HINGE COVER.
4. Unscrew a screw from the lower side of DOOR.
5. Lift door and remove.
HINGE COVER
1. Open the DOOR and disassemble the CLAMP
ASSEMBLY.
2. Unscrew the 2 screws.
3. Remove connector from DOOR S/W ASSEMBLY.
DOOR SWITCH
ASSEMBLY
CLAMP
ASSEMBLY
Be careful! The door is heavy.
NOTE
Reconnect the connector after replacing the
DOOR SWITCH ASSEMBLY.
