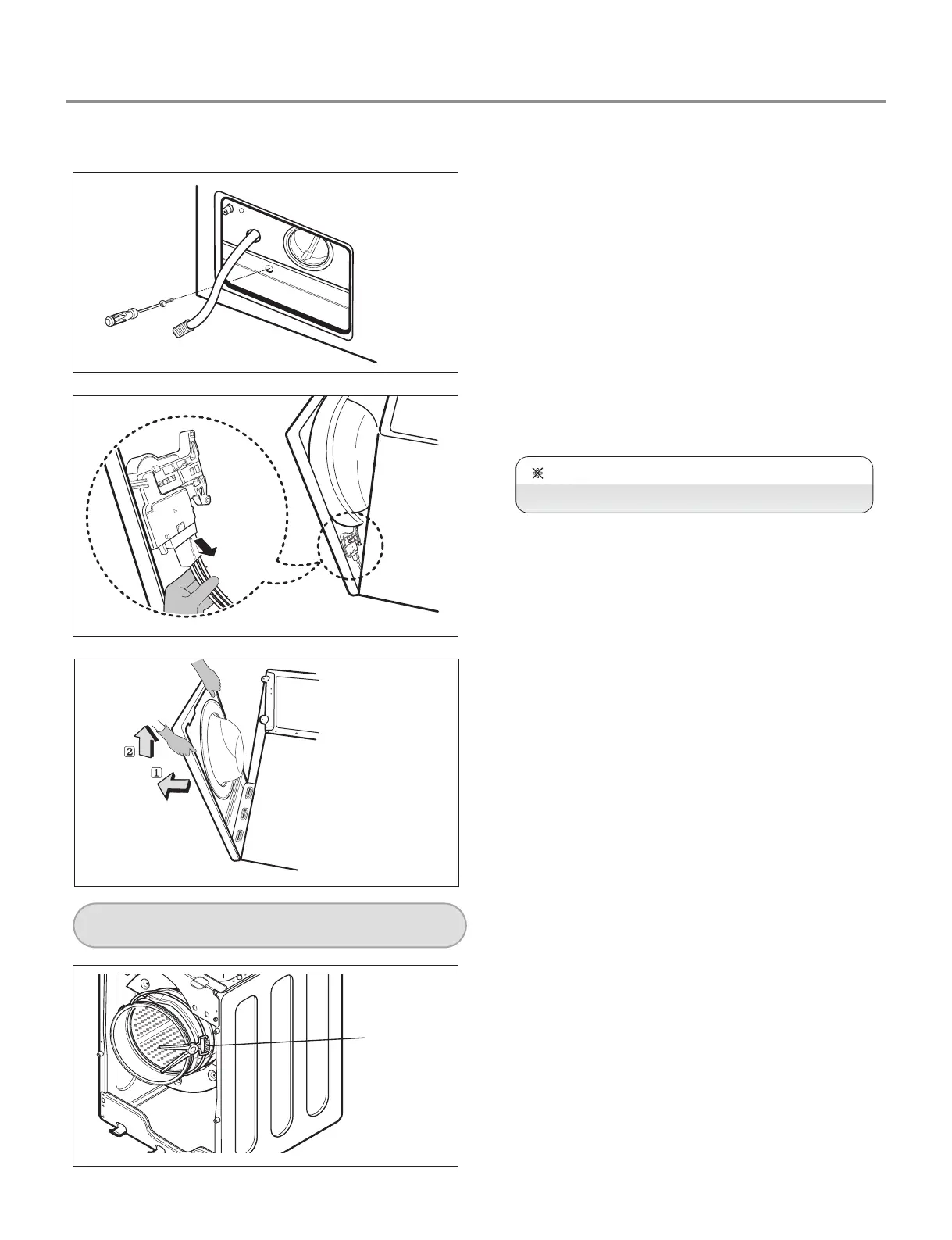

9. Tilt the CABINET COVER.
10. Disconnect the DOOR S/W connector.
NOTE: When assembling the CABINET
COVE R, connect the connector.
11. Lift and separate the CABINET COVER.
8. Unscrew the screw from the lower side of the CABINET
COVER.
1. Disassemble the CABINET COVE R
(refer to previous page)
2. Disassemble the CLAMP ASSEMB LY.
3. Disassemble the GASKET.
TUB GASKET
CLAMP
nhzrl{
To Next Page
