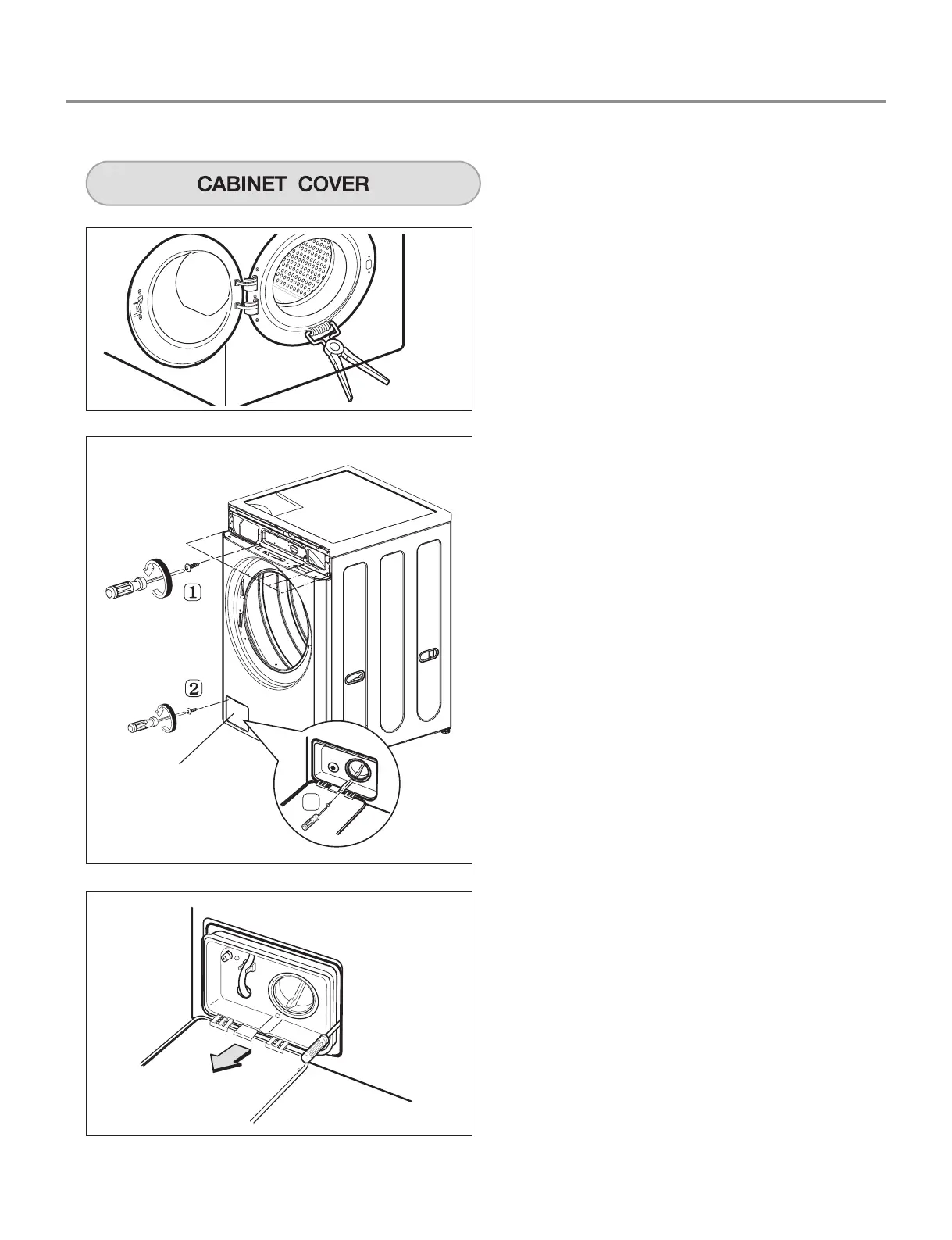

1. Disassemble theCONTROL PANELASSE MBLY
(Refer to page 38)
2. Open theDOOR.
3. Disassemble theCLAMP ASSEMBLY.
4. Unscrew the 4 screws from the CABINET COVER.
5. Unscrew thescrew from CAPCOVER.
6. Unscrew thescrew from insideCAP COVER.
7. Puta flat (
-
) screwdriverorputty knifeintoboth sides
of theCAP COVER, and pull it out.
3
CAP COVER
