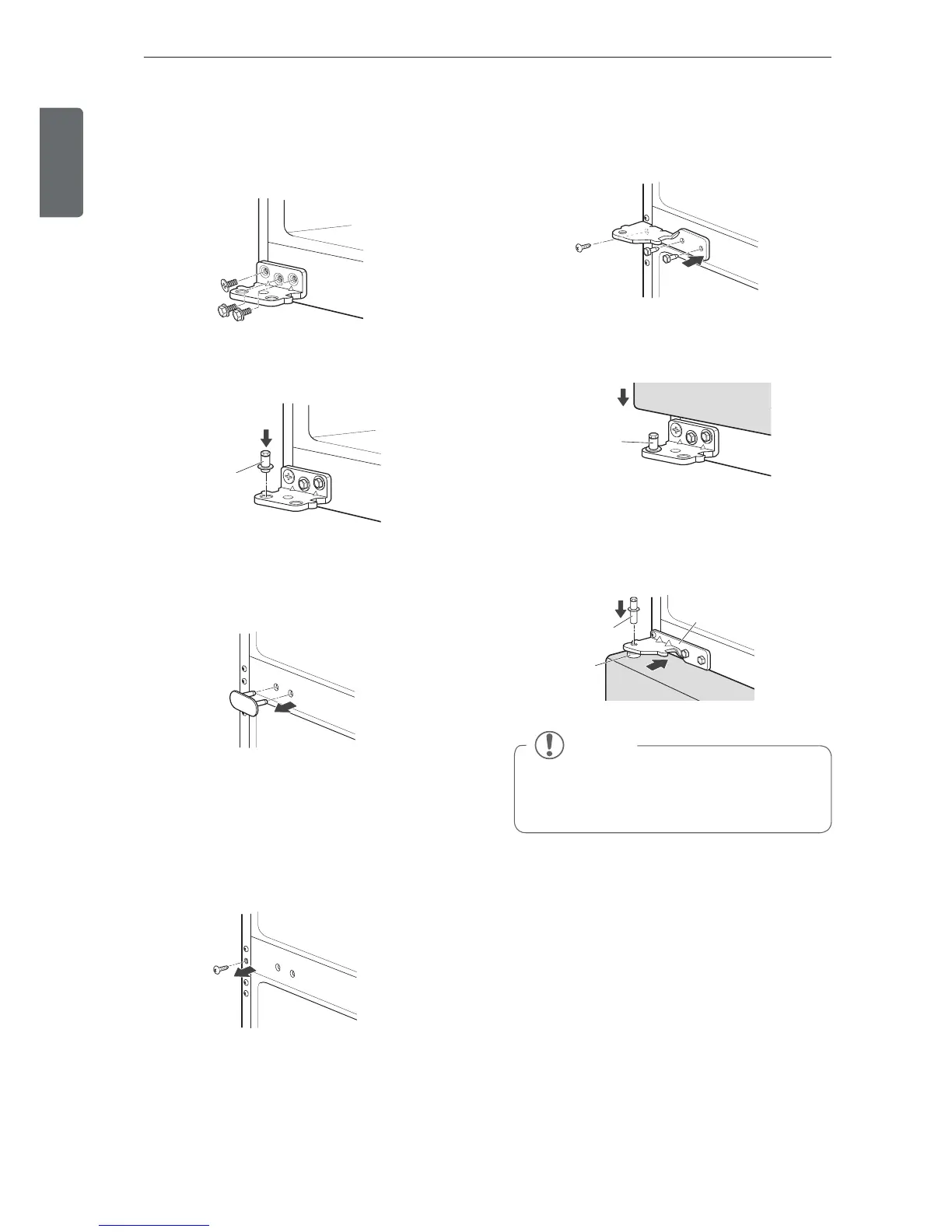

INSTALLATION
14
Using a 13/32 in. or 10 mm socket wrench
with a 2 in. (50.8 mm) extension and a
screwdriver, tighten the two bolts and the
screw, and assemble the bottom hinge on
the left side of the ange.
15
Attach the hinge pin using a ¼ in. (6.35 mm)
socket wrench.
16
With a at-head screwdriver, carefully pry
o and remove the cover over the bolt
holes on the left side of the refrigerator.
17
Remove the outer lower decorative screw
from the ange on the frame between
the freezer and refrigerator doors. (You
will need this hole for the middle hinge
bracket.)
18
Flip the middle hinge bracket and position
it on the left side of the refrigerator and
reattach it with two bolts and a screw.
19
Place the freezer door down on the bottom
hinge pin.
20
Reattach the middle hinge pin using a ¼ in
(6.35 mm) socket wrench. Replace the
washer.
NOTE
The bracket has been ipped, but the
hinge pin stays in the same orientation
with its hexagonal end facing upward.
Bottom Hinge Pin
Middle Hinge Pin
Washer
Middle Hinge Bracket
Bottom Hinge
Pin
