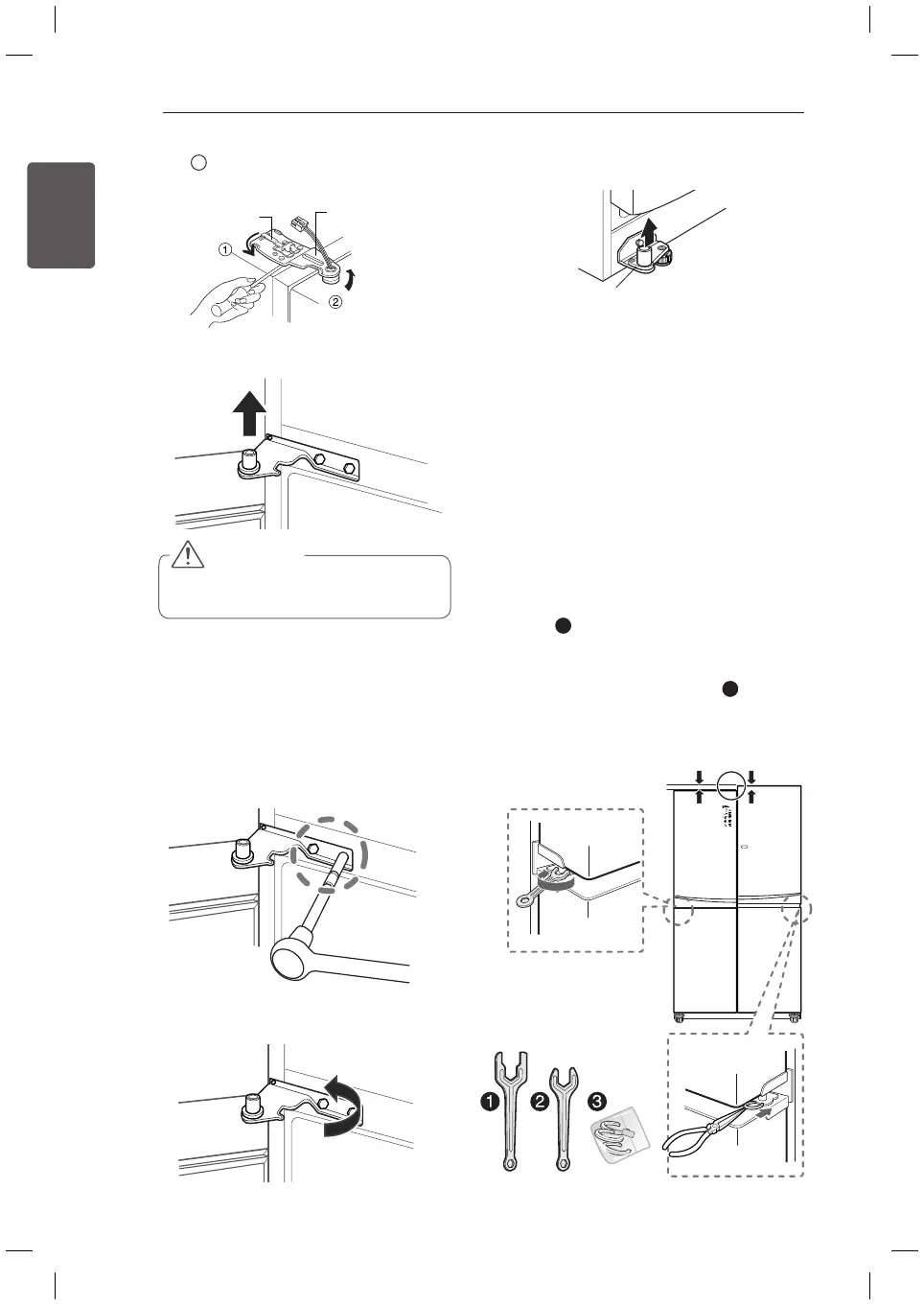

Height Adjustment
Leveling the doors may not be possible when
the floor is not leveled, or is of weak or poor
construction. The fridge is heavy and should be
installed on a rigid and solid surface. Some Timber
flooring may cause levelling difficulties if it flexes
excesively.
Fridge Door Height Adjustment
If the left side door is lower, lift the left side
y
door, and turn the hinge bolt using the spanner
as in the drawing. (for upper fridge doors, use
spanner
1
.)
If the right side door is lower, lift the right
y
side door, and use a pair of long nose pliers
(not supplied) to additionally insert
3
a snap
ring until the heights are balanced as in the
drawing.
3
Remove the door by raising it from the lower
hinge.
How to Remove the Freezer Door
(TURN OFF THE MAIN POWER.
Same procedure for left and
right doors)
1
Remove the inner hinge bolt.
2
Twist the hinge to raise the pivoting end so
that the door can be lifted off.
3
Turn
1
around to release lock and raise
hinge up.
4
Disassemble Door, raising it from Hinge
Center.
Upper hinge
Keeper
CAUTION
Remove it after you open Door to 90
degrees.
Lower hinge
Refrigeration
left hand door
Height difference
Refrigeration
right hand door
To Next Page
