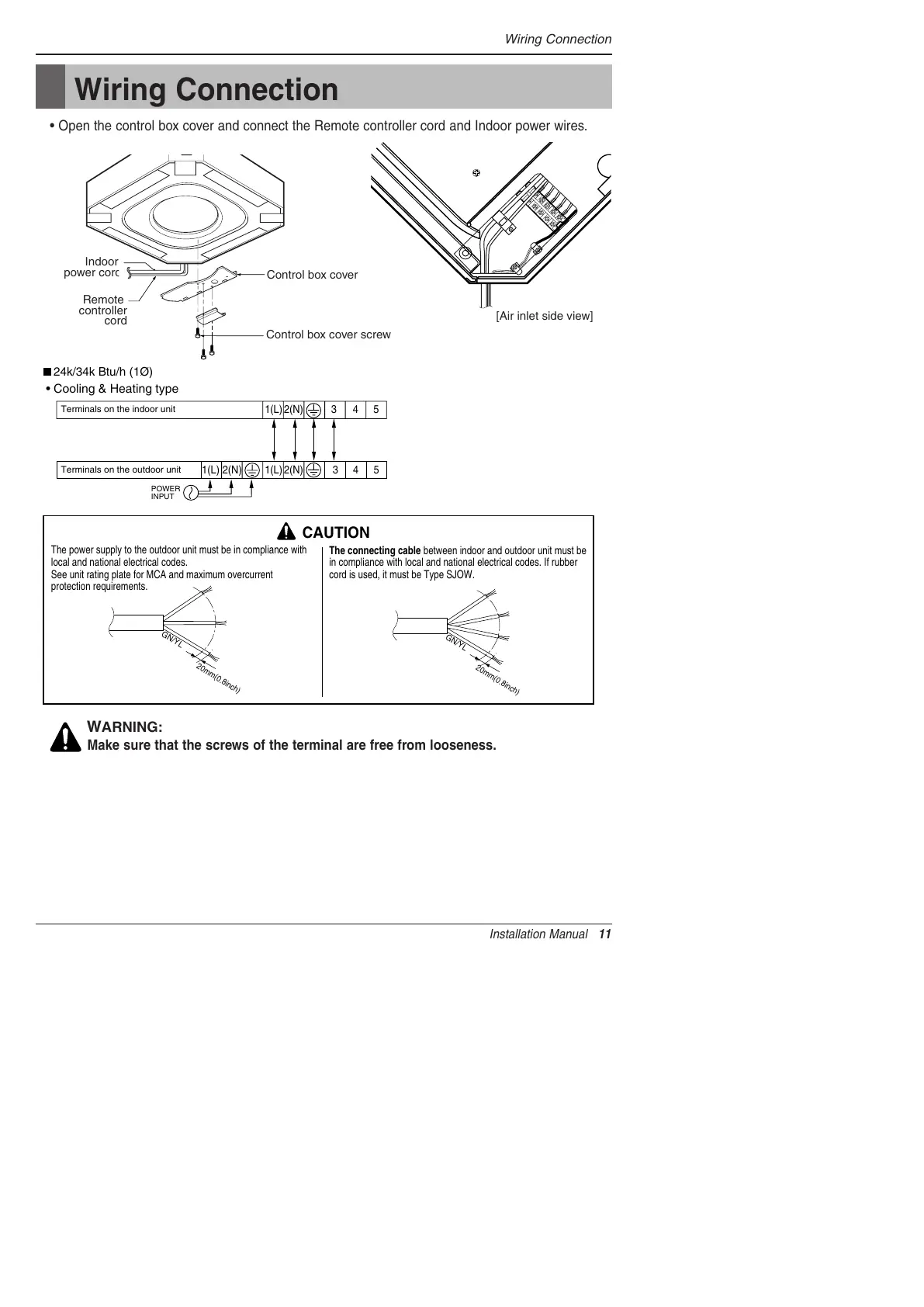

LG HEAT CONTROLLER A-DMC24CA-1 - Wiring Connection

Installation Manual 11
Wiring Connection
• Open the control box cover and connect the Remote controller cord and Indoor power wires.
[Air inlet side view]
Control box cover
Indoor
power cord
Remote
controller
cord
Control box cover screw
• Cooling & Heating type
CAUTION
20mm(0.8inch)
GN/YL
20mm(0.8inch)
GN/YL
24k/34k Btu/h (1Ø)
POWER
INPUT
Terminals on the indoor unit
Terminals on the outdoor unit
1(L) 2(N) 2(N) 31(L)
2(N) 3 4 51(L)
45
The power supply to the outdoor unit must be in compliance with
local and national electrical codes.
See unit rating plate for MCA and maximum overcurrent
protection requirements.
The connecting cable between indoor and outdoor unit must be
in compliance with local and national electrical codes. If rubber
cord is used, it must be Type SJOW.
WARNING:
Make sure that the screws of the terminal are free from looseness.
