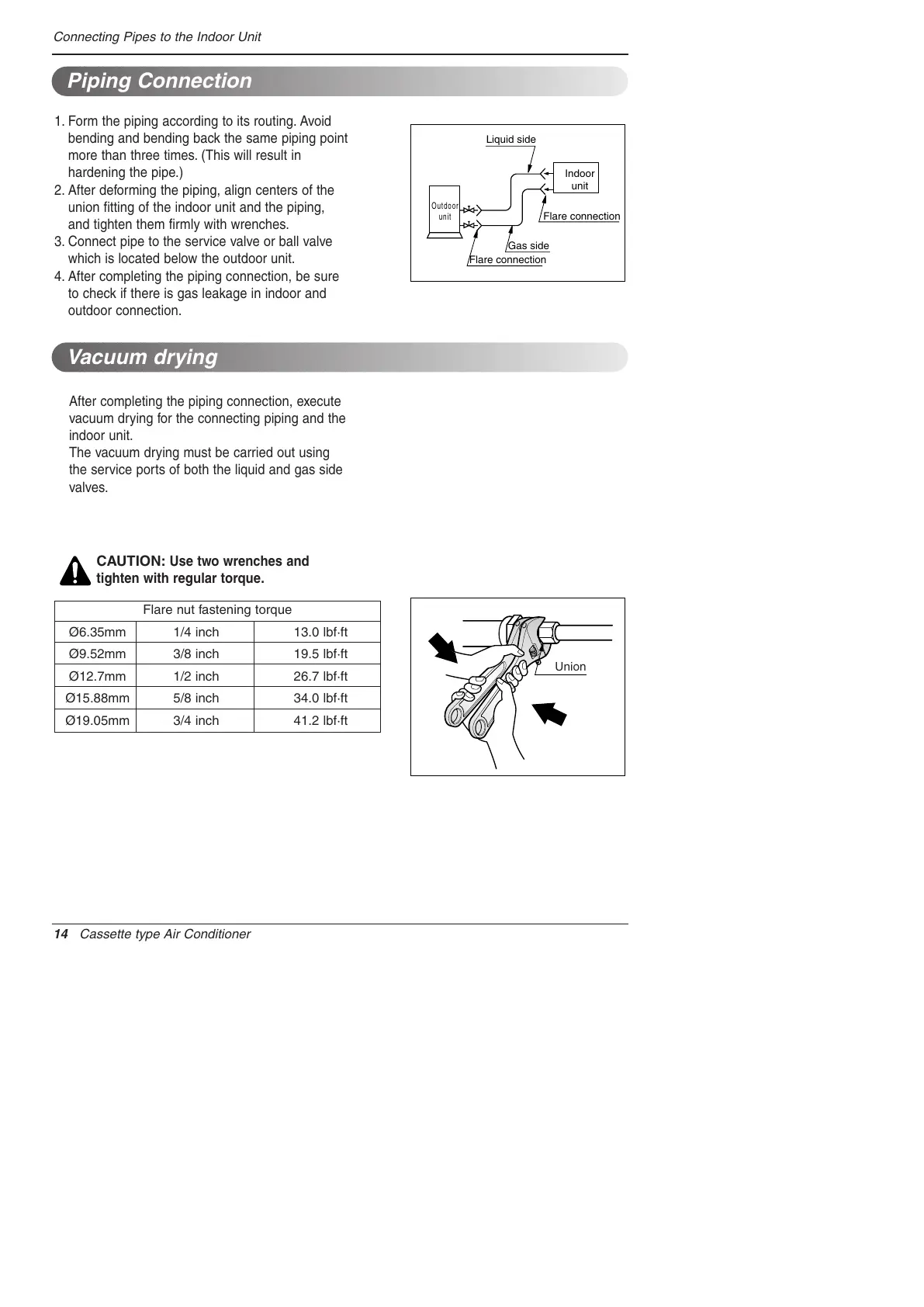

14 Cassette type Air Conditioner
Connecting Pipes to the Indoor Unit
1. Form the piping according to its routing. Avoid
bending and bending back the same piping point
more than three times. (This will result in
hardening the pipe.)
2. After deforming the piping, align centers of the
union fitting of the indoor unit and the piping,
and tighten them firmly with wrenches.
3. Connect pipe to the service valve or ball valve
which is located below the outdoor unit.
4. After completing the piping connection, be sure
to check if there is gas leakage in indoor and
outdoor connection.
After completing the piping connection, execute
vacuum drying for the connecting piping and the
indoor unit.
The vacuum drying must be carried out using
the service ports of both the liquid and gas side
valves.
CAUTION:
Use two wrenches and
tighten with regular torque.
Flare nut fastening torque
Ø6.35mm 1/4 inch 13.0 lbf·ft
Ø9.52mm 3/8 inch 19.5 lbf·ft
Ø12.7mm 1/2 inch 26.7 lbf·ft
Ø15.88mm 5/8 inch 34.0 lbf·ft
Ø19.05mm 3/4 inch 41.2 lbf·ft
Piping Connection
Vacuum drying
