2 Cassette type Air Conditioner

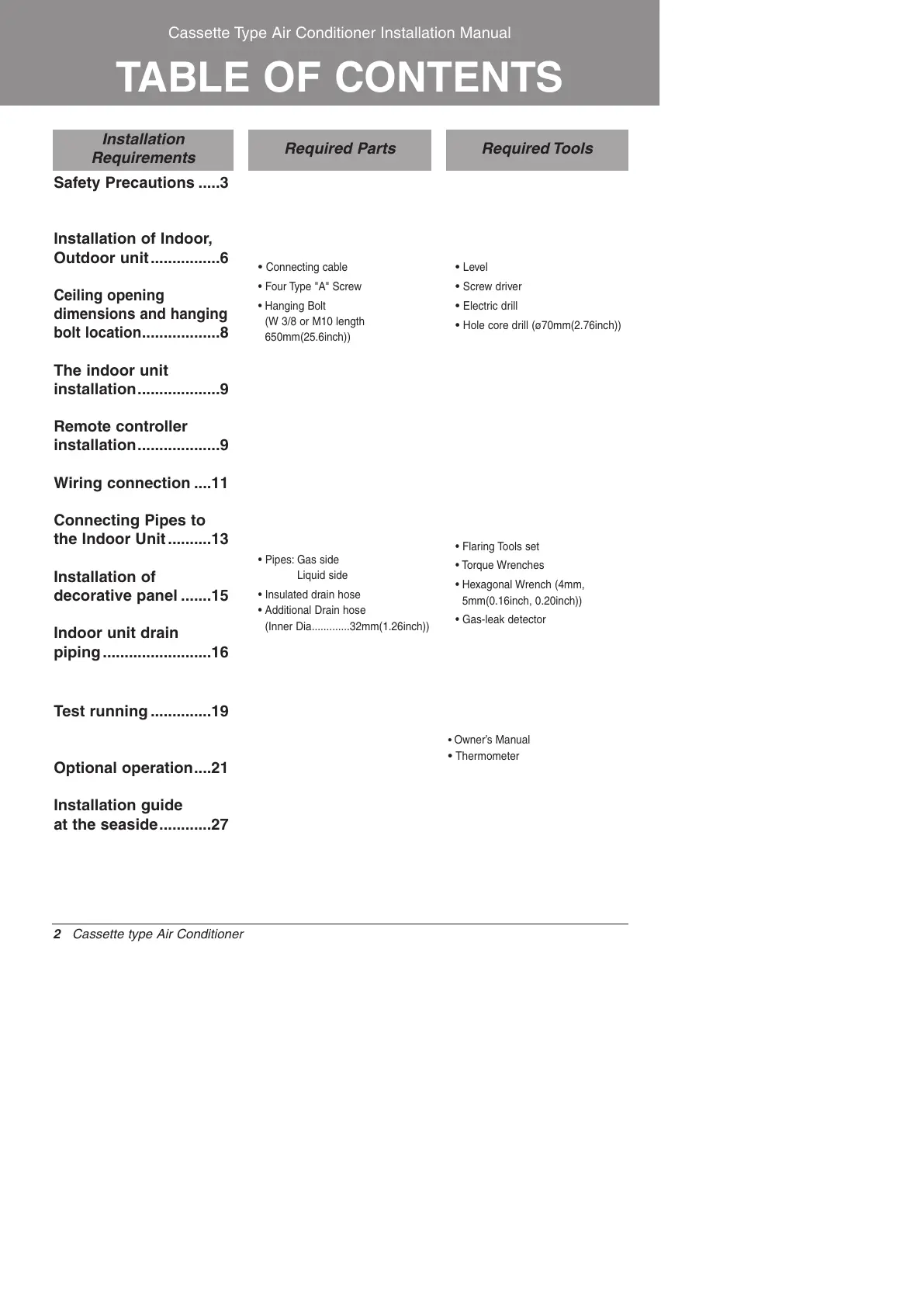

Cassette Type Air Conditioner Installation Manual
TABLE OF CONTENTS
Safety Precautions .....3
Installation of Indoor,
Outdoor unit................6
Ceiling opening
dimensions and hanging
bolt location
..................8
The indoor unit
installation...................9
Remote controller
installation...................9
Wiring connection ....11
Connecting Pipes to
the Indoor Unit ..........13
Installation of
decorative panel .......15
Indoor unit drain
piping .........................16
Test running ..............19
Optional operation....21
Installation guide
at the seaside............27
•
Connecting cable
• Four Type "A" Screw
• Hanging Bolt
(W 3/8 or M10 length
650mm(25.6inch))
• Pipes: Gas side
Liquid side
• Insulated drain hose
• Additional Drain hose
(Inner Dia.............32mm(1.26inch))
•
Level
•
Screw driver
•
Electric drill
•
Hole core drill (ø70mm(2.76inch))
• Flaring Tools set
• Torque Wrenches
• Hexagonal Wrench (4mm,
5mm(0.16inch, 0.20inch))
• Gas-leak detector
•
Owner’s Manual
•
Thermometer
Installation
Requirements
Required Parts Required Tools
