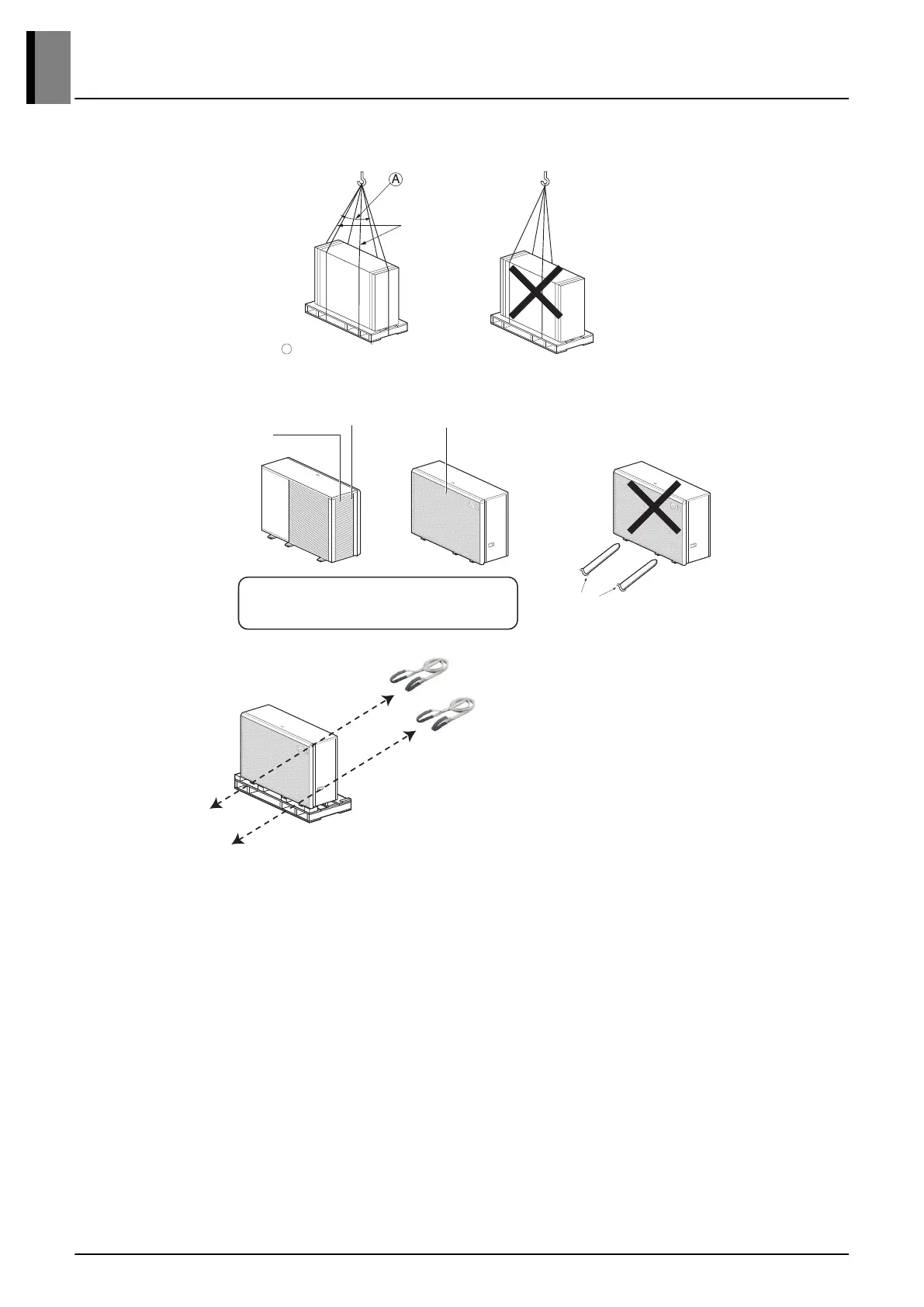

2.3 Lifting method
A
40º or less
Sub line
Air outlet grille
Forklift
Always hold the unit by the corners, as holding
it by the side intake holes on the casing may
cause them to deform.
Intake hole
Corner
Put the sling belt (delivered as accessory) through
the unit's foot.
Carry the unit using the sling belts and the unit's han-
dle (right), and put it onto the installation structure.
Remove the sling belts and dispose them.
< ! > CAUTION
• Be very careful while carrying the product.
• PP bands are used to pack some products. Do not use them as a mean for transportation because they are dangerous.
• Do not touch heat exchanger fins with your bare hands. Otherwise you may get a cut in your hands.
• Tear plastic packaging bag and scrap it so that children cannot play with it.
Otherwise plastic packaging bag may suffocate children to death.
• When carrying in Outdoor Unit, be sure to support it at four points.
Carrying in and lifting with 3-point support may make Outdoor Unit unstable, resulting in a fall.
• Use 2 belts of at least 8m(26.2ft) long.
• Place extra cloth or boards in the locations where the casing comes in contact with the sling to prevent damage.
• Hoist the unit making sure it is being lifted at its center of gravity.
