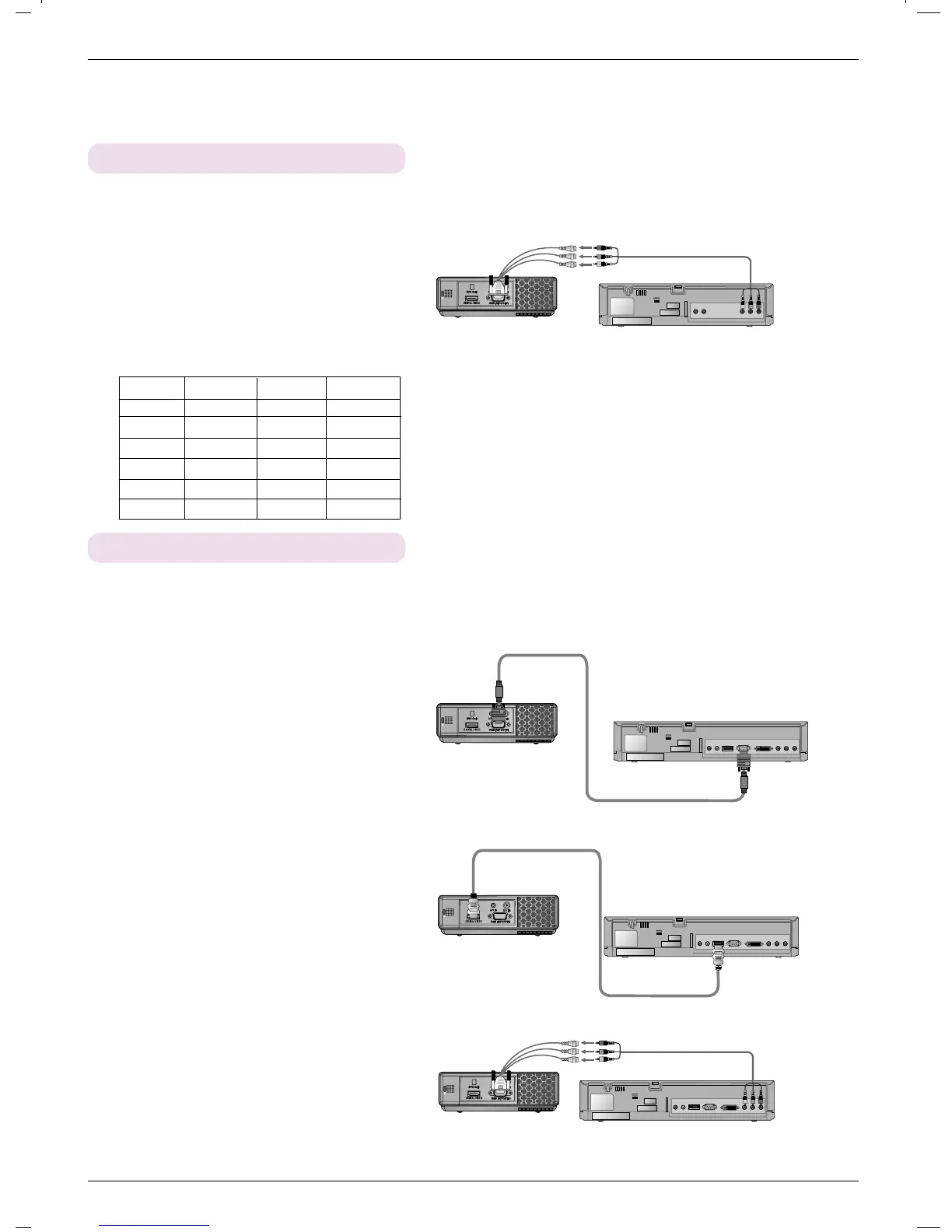

LG HS101 - Connecting to a DVD; Connecting to a D-TV Set-Top Box

Connection
16
Connecting to a DVD
< How to connect >
a.After connecting the Component cable of DVD to the RGB to
Component cable, connect it to the RGB IN(PC/DTV) termi-
nal of the projector.
* When connecting the component cable, match the jack colors
with the component cable.(Y=green, PB=blue, PR
=red)
b.You can set the Digital video mode olny when there is a
HDMI terminal in the DVD device.
PR
PB
Y
(R) AUDIO (L)
* The output jacks (Y, PB, PR) of the DVD might be labelled as Y, Pb, Pr / Y, B-Y, R-Y / Y, Cb, Cr according to the equipment.
<DVD>
Component cable
HDMI cable
Connecting to a D-TV Set-Top Box
< How to connect an RGB source >
a. Connect RGB cable to RGB IN (PC/DTV) of the
projector.
* When it is connected to the D-TV Set-top box with DVI output, you
can watch at the Digital Video mode by using the DVI to HDMI
cable.
b. Use a DTV receiver with DTV 480p(576p)/720p/1080i mode.
< How to connect a Digital Video source >
a.Connect the DIGITAL VIDEO terminal of the projector to the
HDMI output terminal of the D-TV Set-Top Box via HDMI
cable.
b. Use a DTV receiver with DTV 480p(576p)/720p/1080i mode.
(R) AUDIO (L)
DTV OUTPUT
DVI OUTPUT
PR
PB
Y
HDMI OUTPUT
(R) AUDIO (L)
DTV OUTPUT
DVI OUTPUT
PR
PB
Y
HDMI OUTPUT
* To receive D-TV programmes, it is necessary to purchase a D-TV receiver (Set-Top Box) and
connect it to the projector.
* Please refer to the owner's manual of the D-TV Set-Top Box for the connection between projector and
D-TV Set-Top Box.
<D-TV Set-Top Box>
Component cable
< How to connect a Component source >
a.Connect the D-TV Set-Top Box Component cable with RGB
to Component cable and than connect it to RGB
IN(PC/DTV) of the projector.
* When connecting the component cable, match the jack colors
with the component cable.(Y=green, P
B=blue, PR=red)
b. Use a DTV receiver with DTV 480p(576p)/720p/1080i mode.
(R) AUDIO (L)
DTV OUTPUT
DVI OUTPUT
PR
PB
Y
HDMI OUTPUT
Signal
480i
480p
720p
1080i
576i
576p
Component
O
O
O
O
O
O
RGB/DTV
X
O
O
O
X
O
HDMI/DVI
X
O
O
O
X
O
<D-TV Set-Top Box>
<D-TV Set-Top Box>
RGB to Component Cable
RGB to Component Cable
