LG HT303PD - Page 33

2-24
1)
• R703 → TP704
2)
• R720 → TP711
3)
• R704 → TP707
or
R717
→ TP705
4)
• R709 → TP713
5)
• R707 → TP702
6)
• R701 → TP708

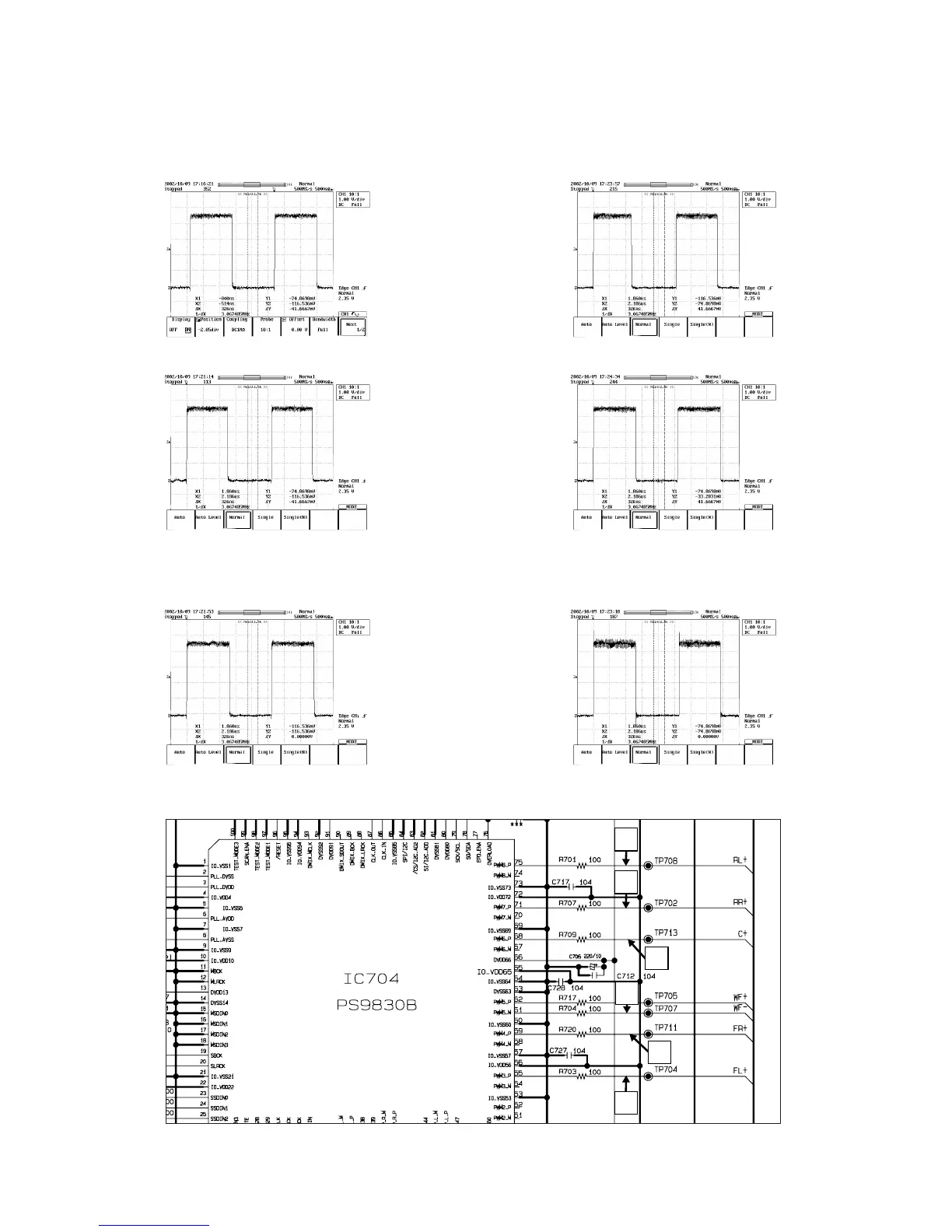

13. DVD & AMP WAVEFORMS
6
5
1
4
3
2
