Setting up
Connect the black end of each wire to
the terminals marked -(minus) and the
other end to the terminals marked +
(plus).
cc
Connect the wires to the speakers.
Connect the other end of each wire to the correct speaker according to
the colour coding
:
To connect the cable to the speakers, press each plastic finger pad to open the
connection terminals on the base of each speaker. Insert the wire and release
the finger pad.
Be careful of the following
•
Be careful to make sure children do not put their hands or any objects into
the *speaker duct.
*Speaker duct: A hall for plentiful bass sound on speaker cabinet(enclosure)
• Use the rear speaker at least 30 CM away from either TV screen or PC
monitor.
Attaching the speakers to the DVD receiver
aa
You will have received three speaker cables.
Each one is colour-coded by a band near each end and connects one of
the three speakers to the DVD receiver.
bb
Connect the wires to the DVD receiver.
Match each wire’s coloured band to the same coloured connection termi-
nal on the rear of the DVD receiver. To connect the cable to the DVD
receiver, press each plastic finger pad to open the connection terminal.
Insert the wire and release the finger pad.
Orange
Red
White
Sub Woofer
Front
Front
In front of you, to the right of
the screen.
In front of you, to the left of
the screen.
POSITION
SPEAKER
COLOUR

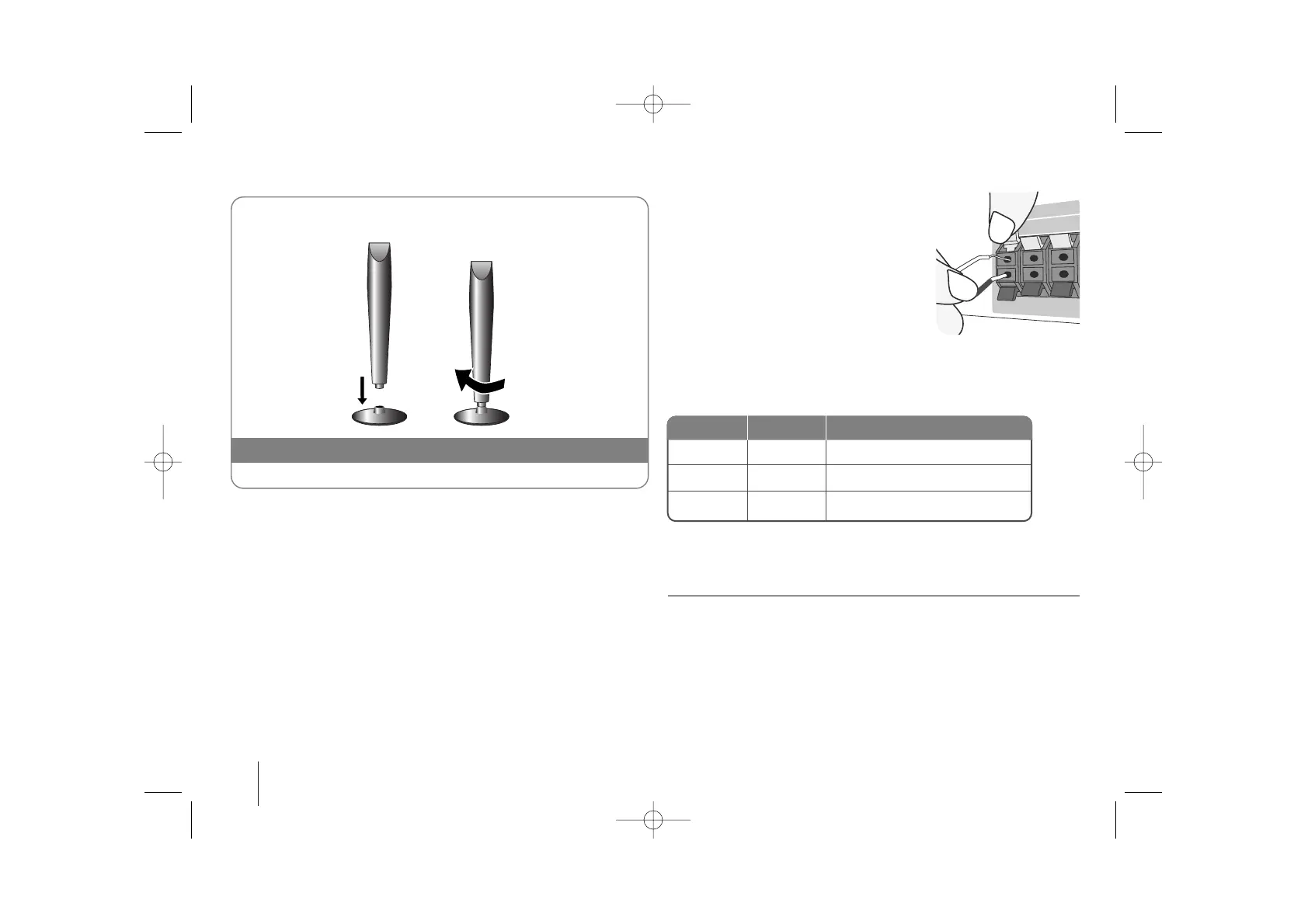

Fix the speaker to the base by rotating the speaker
The speakers are detached from the speaker stands.
Assembling to the Speakers
To Next Page
