2-1

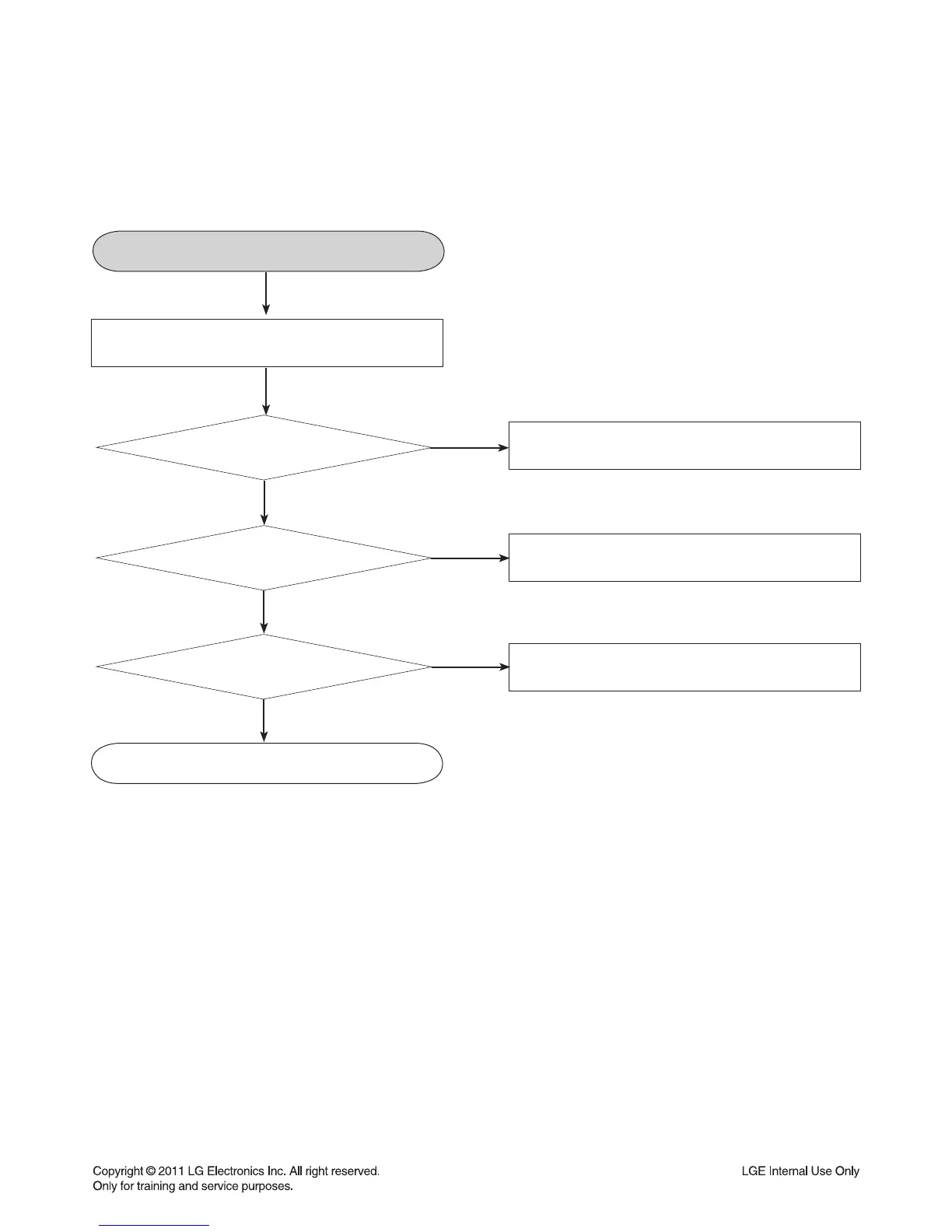

TROUBLESHOOTING GUIDE
1. Power Supply Circuit
YES
Check power supply circuit.
Check tracking servo circuit.
Check audio circuit.
NO
NO
NO
Is power on?
YES
Does it play?
YES
Does it output
audio?
YES
YES
Turn power on.
INSERT POWER CORD.
OK
SECTION 2. ELECTRICAL PART
9
11
Table of Contents
Table of Contents
2
Section 1. General
3
Servicing Precautions
3
Esd Precautions
5
Service Information for Eeprom
6
How to Update DVD & Audio Micom Programs
7
Specifications
8
Section 2. Electrical Part
10
Troubleshooting Guide
10
Front Circuit
11
System Operation Flow
13
Details and Waveforms on System Test and Debugging
22
Wiring Diagram
36
Overall Block Diagram
37
Circuit Diagrams
38
Circuit Diagrams
40
Circuit Voltage Chart
43
Section 3. Exploded Views
50
Cabinet and Main Frame Section
50
Deck Mechanism Exploded View (Dp-15T)
51
Packing Accessory Section
52
Speaker Section
53
Section 4. Mechanism (Dp-15T) [Contents]
56
Section 4. Mechanism (Dp-15T)
56
Deck Mechanism Parts Locations
57
Bottom View
57
Top View
57
Top View(Without Tray Disc)
57
Deck Mechanism Disassembly
58
Clamp Assembly Disc
58
Clamp Upper
58
Magnet Clamp
58
Main Base
58
Plate Clamp
58
Tray Disc
58
Base Assembly Sled
59
Gear Feed
59
Gear Middle
59
Gear Rack
59
Rubber Rear
59
Base Main
60
Belt Loading
60
Frame Assembly Up/Down
60
Gear Loading
60
Gear Pulley
60
Guide Up/Down
60
PWB Assembly Loading
60
Deck Mechanism Exploded View (Dp-15T)
61
