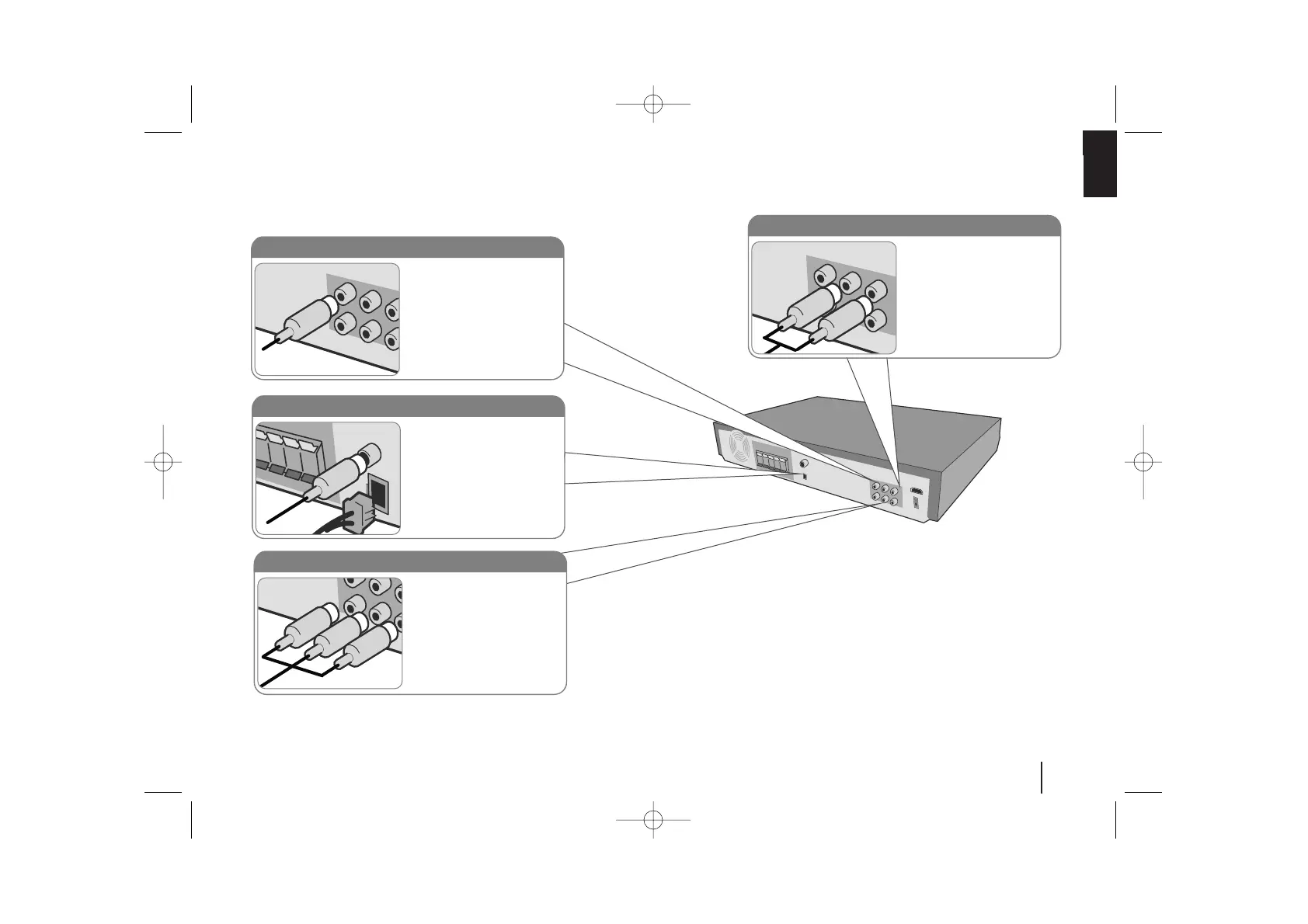

Hooking up the unit
a Connect jacks on the unit and your TV (DVD player or Digital Device etc.) using the cables.
b Plug the power cord into the power source.
Audio In connection
The unit’s Audio jacks are
colour coded (red for right
audio and white for left
audio). If your TV has only
one input for audio (mono),
connect it to the left (white)
audio jack on the unit.
AM/FM connection
AM - Connect the AM loop
aerial to the DVD receiver.
FM - Connect the FM aerial.
The reception will be its best
when the two loose ends of
the aerial are in a straight and
horizontal line.
Video Out connection
Connect the VIDEO OUT-
PUT (MONITOR) jack on the
unit to the corresponding
input jack on your TV using a
Video cable.
Component Video connection
Connect the COMPONENT
VIDEO (PROGRESSIVE
SCAN) OUTPUT jacks on
the unit to the corresponding
input jacks on your TV using
a Y PB PR cable.
HT554TM-AK_BVNMLLK_ENG_4221 1/29/10 10:40 AM Page 5

LG HT554TM Specifications

General

Equalizer	Yes
RMS rated power	1000 W
Audio output channels	5.1 channels
Center speaker RMS power	70 W
Center speaker impedance	4 Ω
Disc types supported	DVD+R, DVD+R DL, DVD+RW, DVD-R, DVD-RW
Number of optical discs	1 discs
Optical disc player type	DVD player
Weight	3600 g
Dimensions (WxDxH)	430 x 73 x 327 mm
Power requirements	230V 50Hz
Surround speaker weight	3400 g
Surround speaker dimensions (WxHxD)	275 x 1050 x 275 mm
USB version	2.0
Product color	Black

Weight and Dimensions

Subwoofer weight	5900 g
Center speaker weight	1050 g
Subwoofer dimensions (WxDxH)	216 x 382 x 312 mm
Center speaker dimensions (WxDxH)	350 x 93 x 105 mm
