LG HT762DZ-D0 Service Manual

3-2
Copyright © 2007 LG Electronics. Inc. All right reserved.
Only for training and service purposes
LGE Internal Use Only

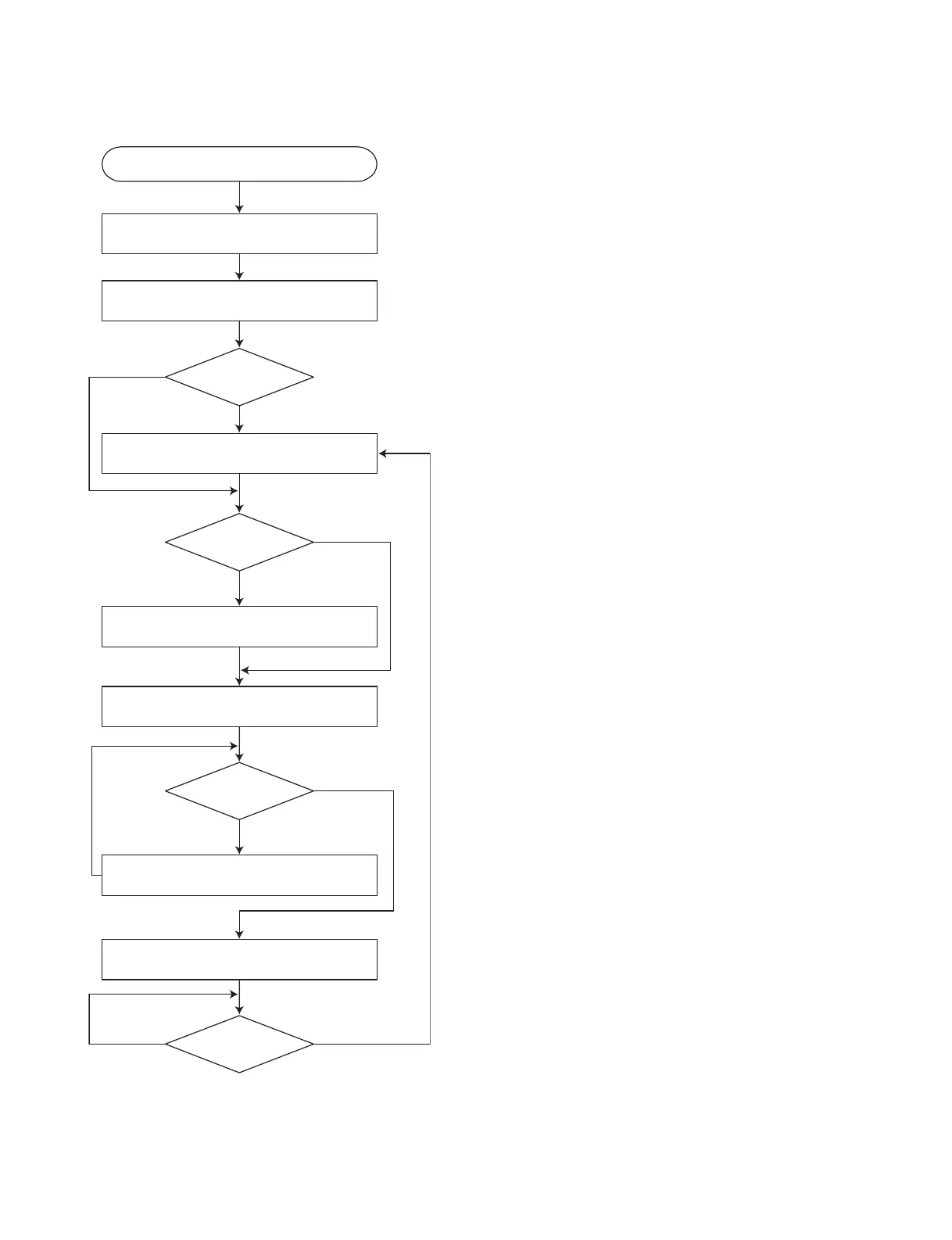

2. SYSTEM OPERATION FLOW
Power On
No
Yes
Yes
Yes
No
No
No
Show LOGO
Tray Closed?
Tray close to closed.
SLED Moves to Inner Position
Recieve
OPEN/ CLOSE
Key?
Receive
CLOSE Key?
1. Stop Playback & Open Tray
2. Display tray open message & LOGO
1. Execute Pressed Key & IR Key
2. System operation Routine Loop
1. Judge whether have disc and disc type
2. Jump to related disc reading procedure
SLED at Inner
Side?
1. IC101 initializes SERVO, DSP & RISC registers
2. Write RISC code to SDRAM
3. Reset RISC
