Introduction
Do not touch the inner pins of the jacks on the rear panel. Electrostatic discharge may cause permanent
damage to the unit.
HDMI OUTHDMI OUT
OUT PUT
INPUT
L - AUX - R
MONITOR
Y
COMPONENT VIDEO (PROGRESSIVE SCAN)
FM Antenna connector
AM Loop Antenna connectors
SPEAKER connectors
Power Cord
MONITOR OUT connector
COMPONENT VIDEO OUT terminals
Connect to a TV with Y PB PR inputs.

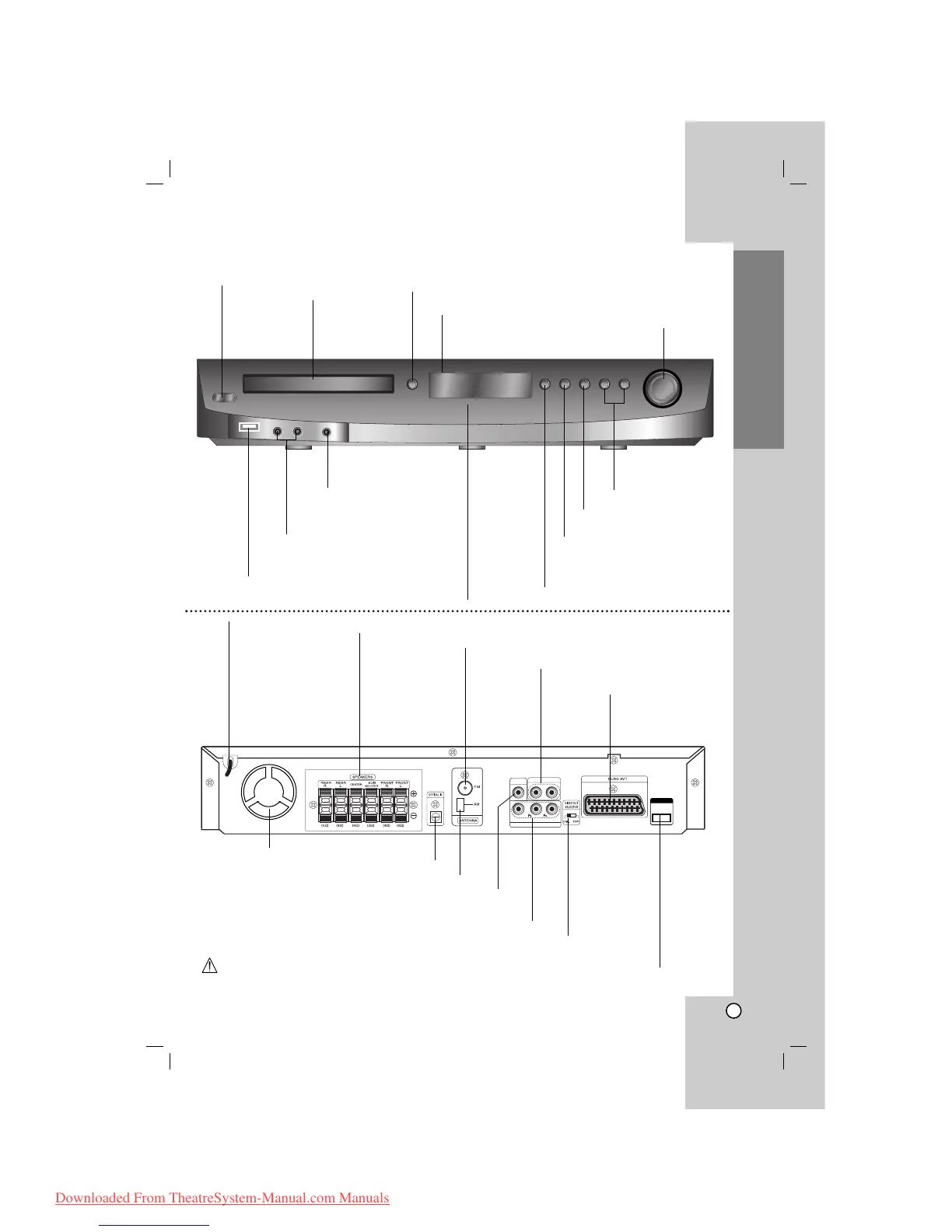

Front Panel/Rear Panel
OUTPUT (TO TV)
EURO AV socket
Connect to a TV with
SCART jack.
Cooling fan
OPTICAL IN connector
AUX AUDIO Input
(L/R) connector
VIDEO OUT SELECTOR switch
HDMI OUT
HDMI output providing a high quality
interface for digital audio and video.
OPEN/CLOSE button
TUNING(-/+)/SKIP/
SEARCH(
..
/
>>
)
KEY CONTROL(b)/(#)
Remote sensor
AUDIO IN connector
VOLUME controller
POWER
DISPLAY Window
DISC Tray
USB port
Connect to a USB port of a memory
device (USB memory etc.)
FUNC.(-)/PLAY(B)
Press and hold down this button
about 3 seconds, then press
repeatedly to select other function.
PAUSE (
XX
)/
MONO/STEREO (ST.)
STOP (x)
MIC 1/MIC 2
Connect a microphone to MIC 1 or
MIC 2 or to both sockets.
