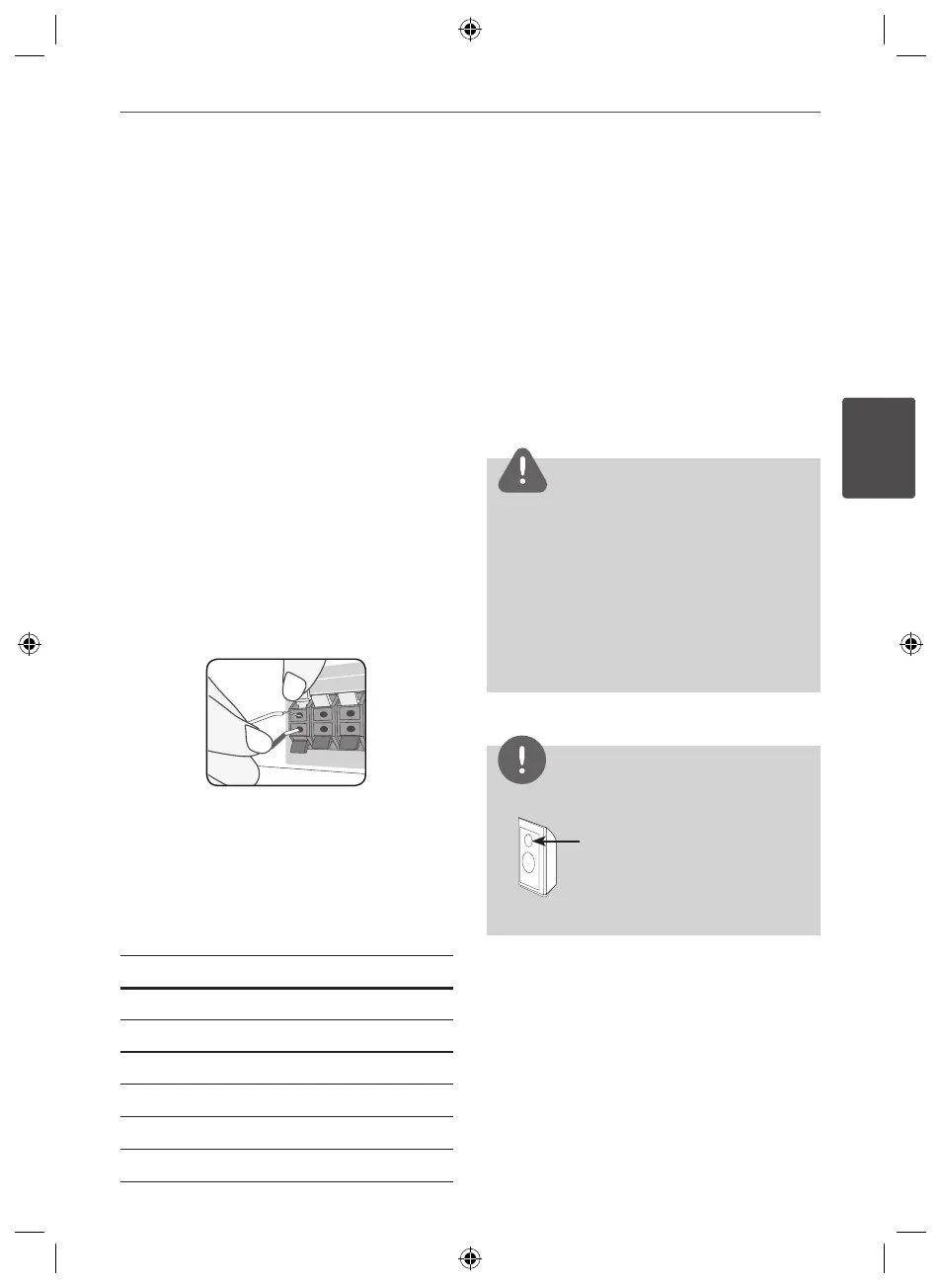

Attaching the
speakers to the unit
1. Connect the wires to the unit.
Match each wire’s colored band to the same
colored connection terminal on the rear of
the unit. To connect the cable to the unit,
press each plastic nger pad to open the
connection terminal. Insert the wire and
release the nger pad.
Connect the black end of each wire to the
terminals marked -(minus) and the other end
to the terminals marked + (plus).
2. Connect the wires to the speakers.
Connect the other end of each wire to the
correct speaker according to the color coding:
Color Speaker Position
Grey Rear Rear right
Blue Rear Rear left
Green Center Center
Orange Sub woofer Any front position
Red Front Front right
White Front Front left
To connect the cable to the speakers, press
each plastic nger pad to open the connection
terminals on the base of each speaker. Insert
the wire and release the nger pad.
CAUTION
• Becarefultomakesurechildrendonotputtheir
handsoranyobjectsintothe*speakerduct.
*Speakerduct:Aholeforplentifulbasssound
on speaker cabinet (enclosure).
• Thespeakerscontainmagnetparts,socolor
irregularity may occur on the TV screen or PC
monitor screen. Please use the speakers far away
from either TV screen or PC monitor.
NOTE
[Rear speakers]
Speaker Deco : This part of
speaker makes a no sound.
