MAKING CONNECTIONS
Connecting to a HD
receiver, DVD, or
VCR player
Connect a HD receiver, DVD, or VCR
player to the projector and select an
appropriate input mode.
HDMI Connection
Transmits the digital video and audio
signals from an external device to the
projector. Connect the external device
and the projector with the HDMI cable

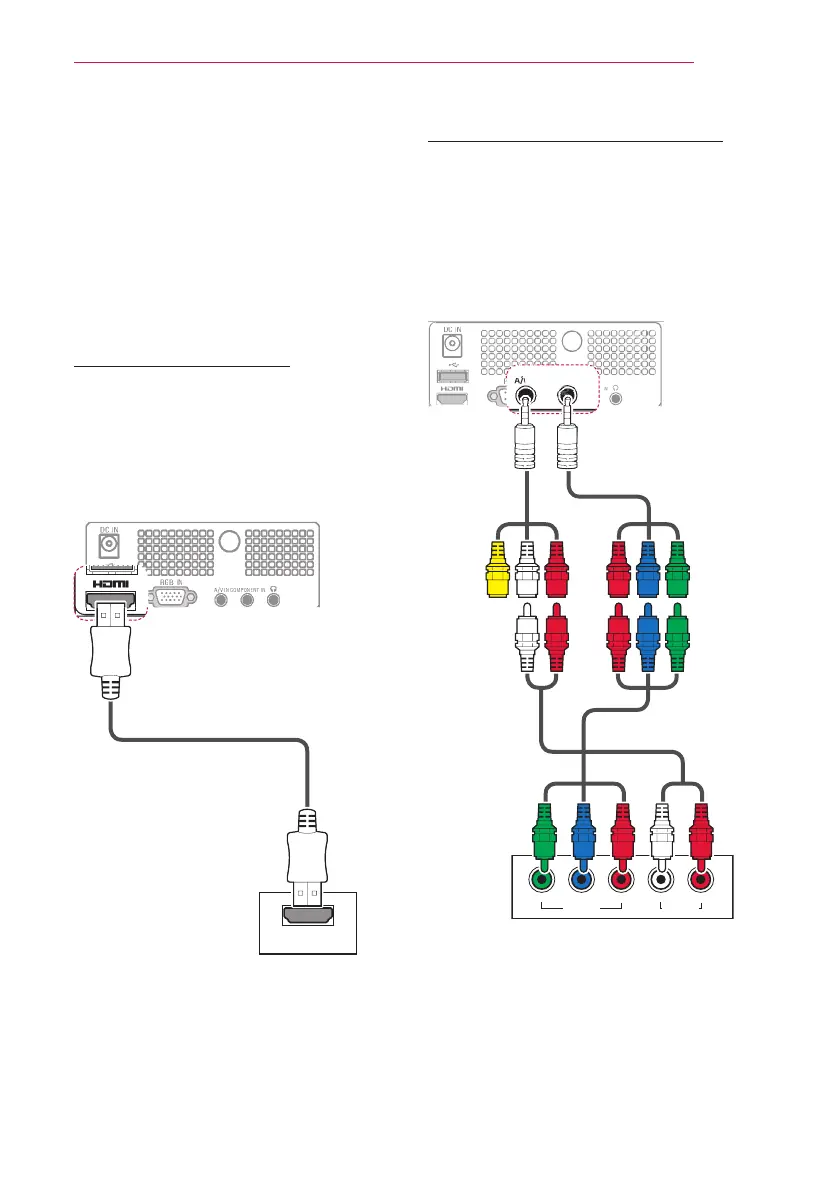

as shown in the following illustration.
'&,1
5*%,1
$9,1&20321(17,1
HDMI OUT
Component Connection
Transmits the analog video and audio
signals from an external device to the
projector. Connect the external device
and the projector with the component
cable as shown in the following
illustration.
'&,1
5*%,1
$9,1&20321(17,1
VIDEO OUT
(L)Y P
B PR (R)
AUDIO OUT
