Connecting the Display
Using the Computer
1. Connect the signal cable. When attached, tighten the thumbscrews to secure
the connection.
2. Connect the power cord into a proper power outlet that is easily accessible and
close to the display.
3. Press button on the front switch panel to turn the
power on. When product power is turned on, the 'Self
Image Setting Function' is executed automatically.
'Self Image Setting Function'?
Self Image Setting function provides the user with optimal display settings.When the user connects the monitor
for the first time, this function automatically adjusts the display to optimal settings for individual input signals. If you
want to adjust the monitor while in use, or wish to manually run this function once again, push the ‘AUTO/SELECT’
button on the front panel of the monitor. Otherwise, you may execute the ‘ Factory reset’ option on the OSD
adjustment menu. However, be aware that this option initializes all the menu items except ‘Language’.

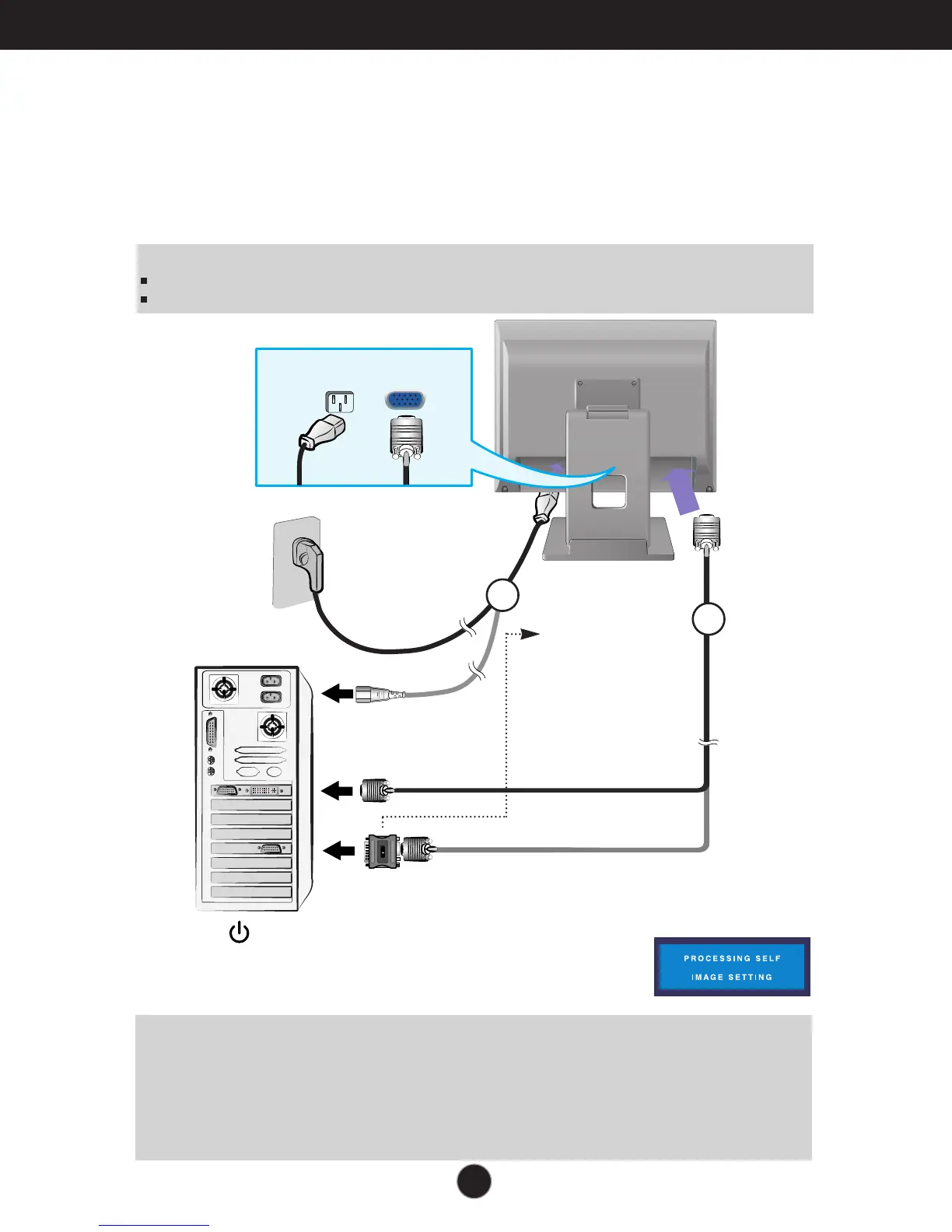

Wall-outlet type*
PC-outlet type*
PC
MAC
Power Cord
Signal Cable
Analog signal
D-sub
*
Varies according to model.
1
2
Mac adapter
For Apple Macintosh use, a
separate plug adapter is
needed to change the 15 pin
high density (3 row) D-sub
VGA connector on
thesupplied cable to a 15 pin
2 row connector.
NOTE
This is a simplified representation of the rear view.
This rear view represents a general model; your display may differ from the view as shown.
