11

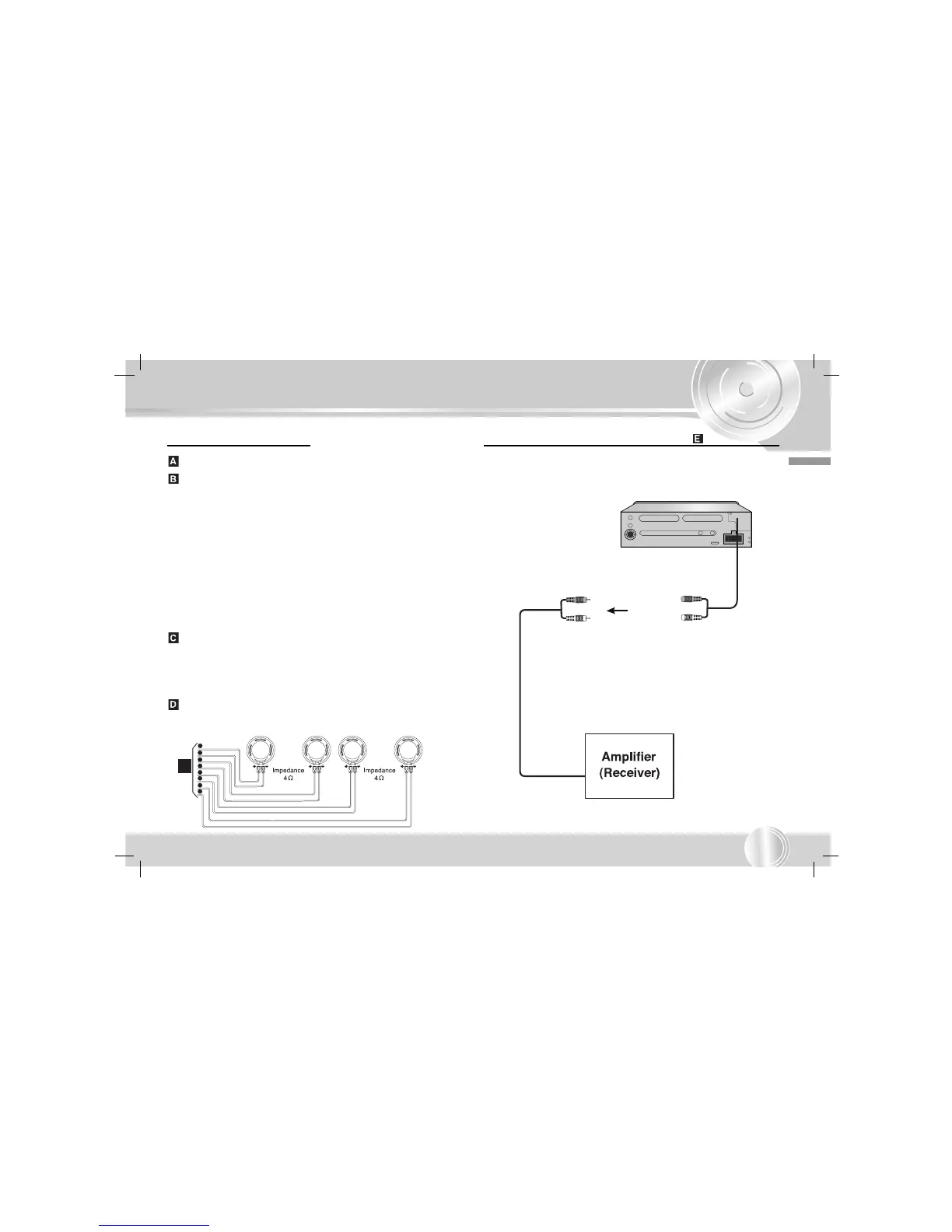

Connections
Connecting to the Car
From antenna
To the wiring of vehicle Colors of leads
1
BLACK : This lead is for the Ground connection.
2
ORANGE : This lead is for the phone line connection.
3
PINK : This lead is for the Dimmer line connection.
4 RED : This lead is for connection to the power supply
terminal when the ignition switch is set to ACC.
5 YELLOW : This lead is for connection to the Battery
(back-up) terminal from which power is
always supplied.
6 BLUE : This lead is for the power antenna connection.
7 BLUE/WHITE STRIPE : This lead is for the remote amplifier
on connection.
Connect the CD changer
• Your car receiver works as the control unit for a CD changer
which you can buy later, if you have not yet done so.
• The suitable cord will be provided together with the CD
changer as shown on the scheme.
Speaker Connections
Connecting to Auxiliary Equipment (OPTIONAL)
- Connect the AUDIO OUTPUT connector of this unit to the
AUDIO INPUT connector of Auxiliary Equipment.
