LG LAP240 - Main - Dac; Amp Circuit Diagram

19
15
21
22
20
: WAVEFORM NUMBER
A
1
2
3
4
5
6
7
8
9
10
11
12
B C D E F G H I J K L M N O P Q R ST
DAC/AMP
EAX65361602_1.0.0_MAIN_HD_SD
2014. 02. 28
3-323-31

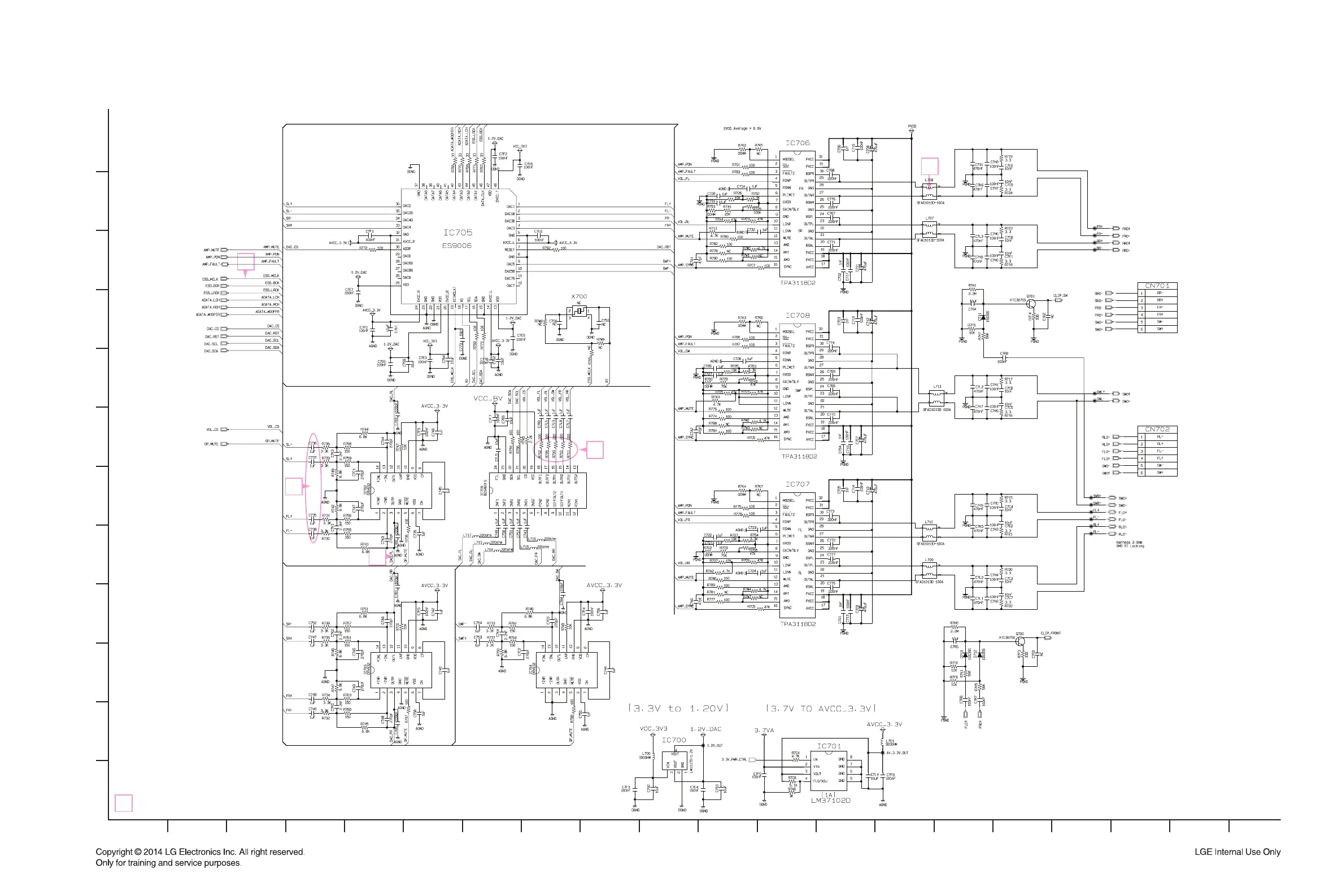

5. MAIN - DAC/ AMP CIRCUIT DIAGRAM
