Product Data
Due to our policy of continuous product innovation, some specications may change without notication.
© LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
LUU187, 189, 247, 367, 427HV
Description (Based on Cooling Mode)
PCB Connector
LUU247HV LUU367HV
Suction Temperature Thermistor
CN-TH3 CN-TH3
Discharge Temperature Thermistor
Condenser Outlet Temperature Thermistor
CN-TH2 CN-TH2
Outdoor Ambient Air Temperature Thermistor
Condenser Inlet Temperature Thermistor CN-TH4 CN-TH4
Pressure Sensor CN-TH1 P-SENSOR(H)
Table 11: LUU187~427 Four-Way Ceiling Concealed Outdoor Unit Thermistor Details.

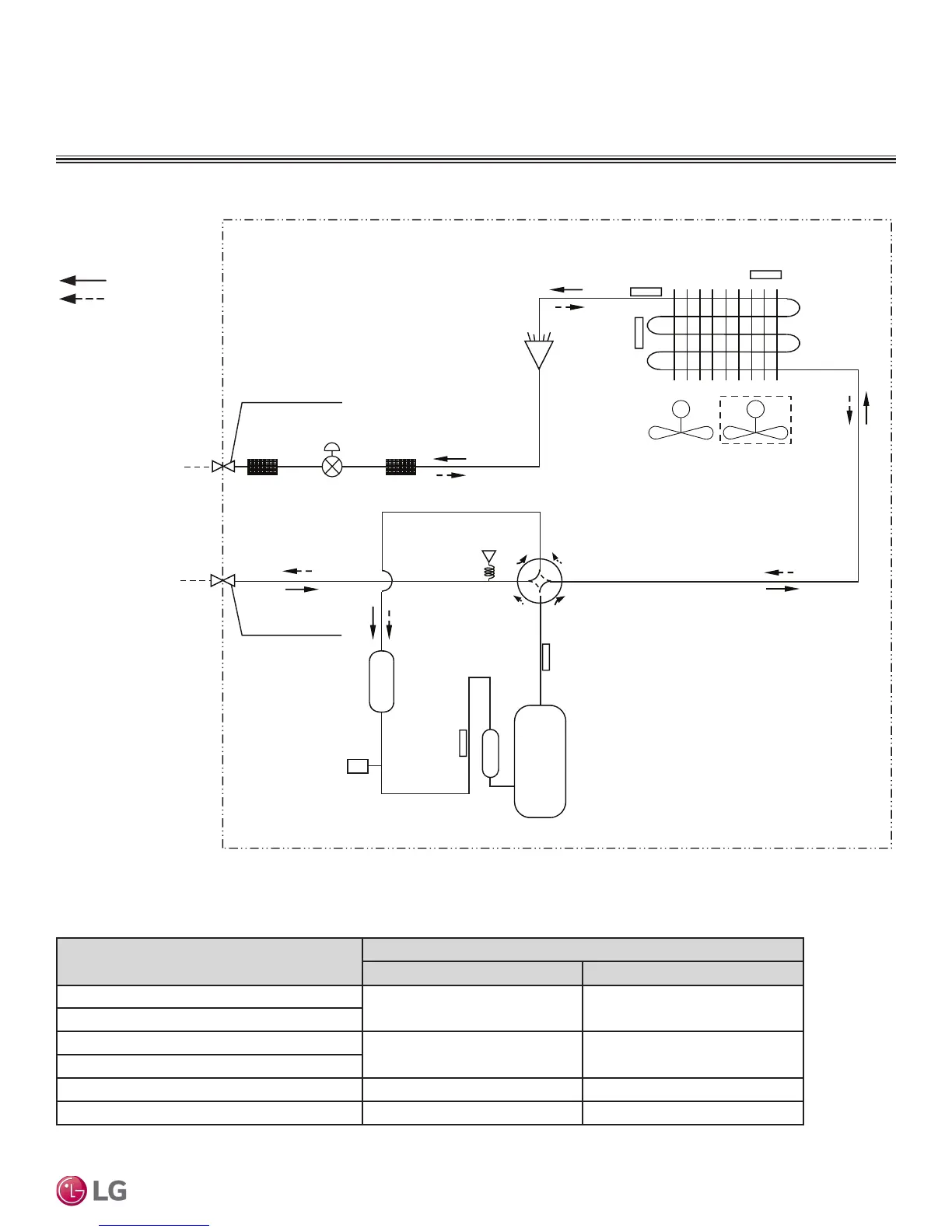

OUTDOOR UNIT REFRIGERANT FLOW DIAGRAM
Refrigerant Flow
Cooling
Heating
MM
High Pressure
Sensor
4 way
36k/42k model only
Valve
Discharge
Temperature
Thermistor
Suction
Temperature
Fusible
Plug
Thermistor
Accumulator
Inverter
Compressor
Strainer Strainer
Condenser Out
Temperature
Thermistor
Outdoor Ambient Air
Temperature
Thermistor
Ø3/8
Flare Connection
Ø5/8
Flare Connection
Condensing
Temperature
Thermistor
Electronic
Expansion Valve
Liquid Side
Piping
Vapor Side
Piping
SVC
SVC
Figure 22: LUU187, 189, 247, 367, 427HV Refrigerant Flow Diagram.
