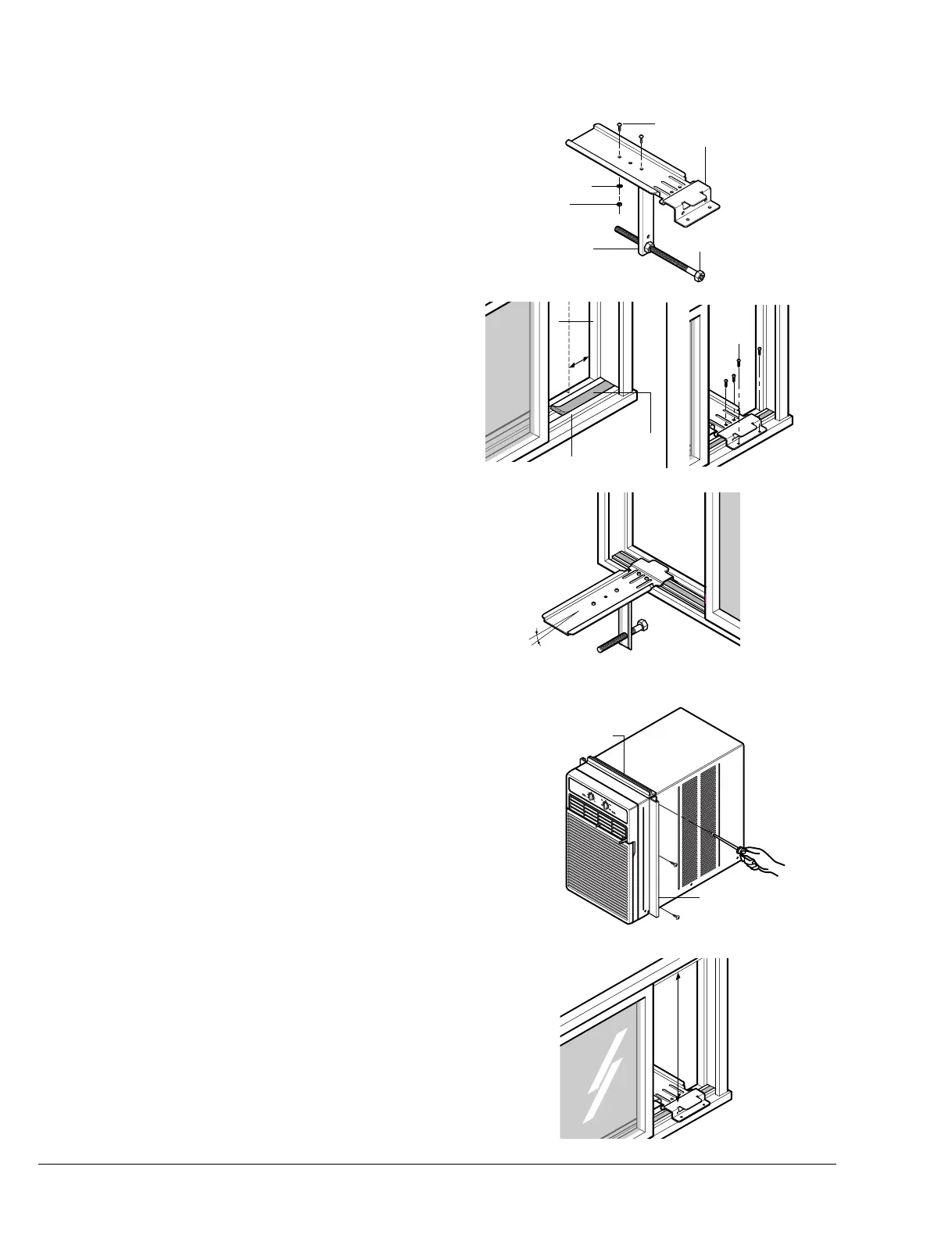

1. Loosely attach the Support Bracket to the bottom of
Bracket using Bolts, Washers, and Nuts. Attach the
Leveling bolt and nut. (See Figure 22)
2. Remove protective backing from Window Track Seal
and apply seal to window track. (See Figure 23)
3. Measure and lightly mark a line 8-1/4 inches from
window jamb. Center the Support Bracket assembly
on the window track and fasten with 4 Type C screws.
(See Figure 23)
4. Put the Support Bracket against the outside wall and
tighten the Bolts on top of the Bracket. Adjust the
Leveling Bolt so that the air conditioner will be
installed with a very slight tilt (about 1/4") downward
toward the outside for proper drainage.
Tighten the nut. (See Figure 24)
NOTE: DO NOT drill a hole in the bottom of the base
pan. The air conditioner is designed to operate
with the bottom of the base pan approximately
half-full of water.
5. Fasten Side Guides to the sides of the Air Conditioner
using 3 Type A screws per Guide. Start with first
screw at middle of Guide. (See Figure 25)
6. Fasten Upper Guide on the top of the Air Conditioner
using 3 Type A screws. (See Figure 25)
7. Measure height of window opening from top of
Bracket assembly as shown Fig. 26.
Subtract 20-3/4 inches. Mark this measurement on
Curtain and cut the Curtain. (See Figure 26)
