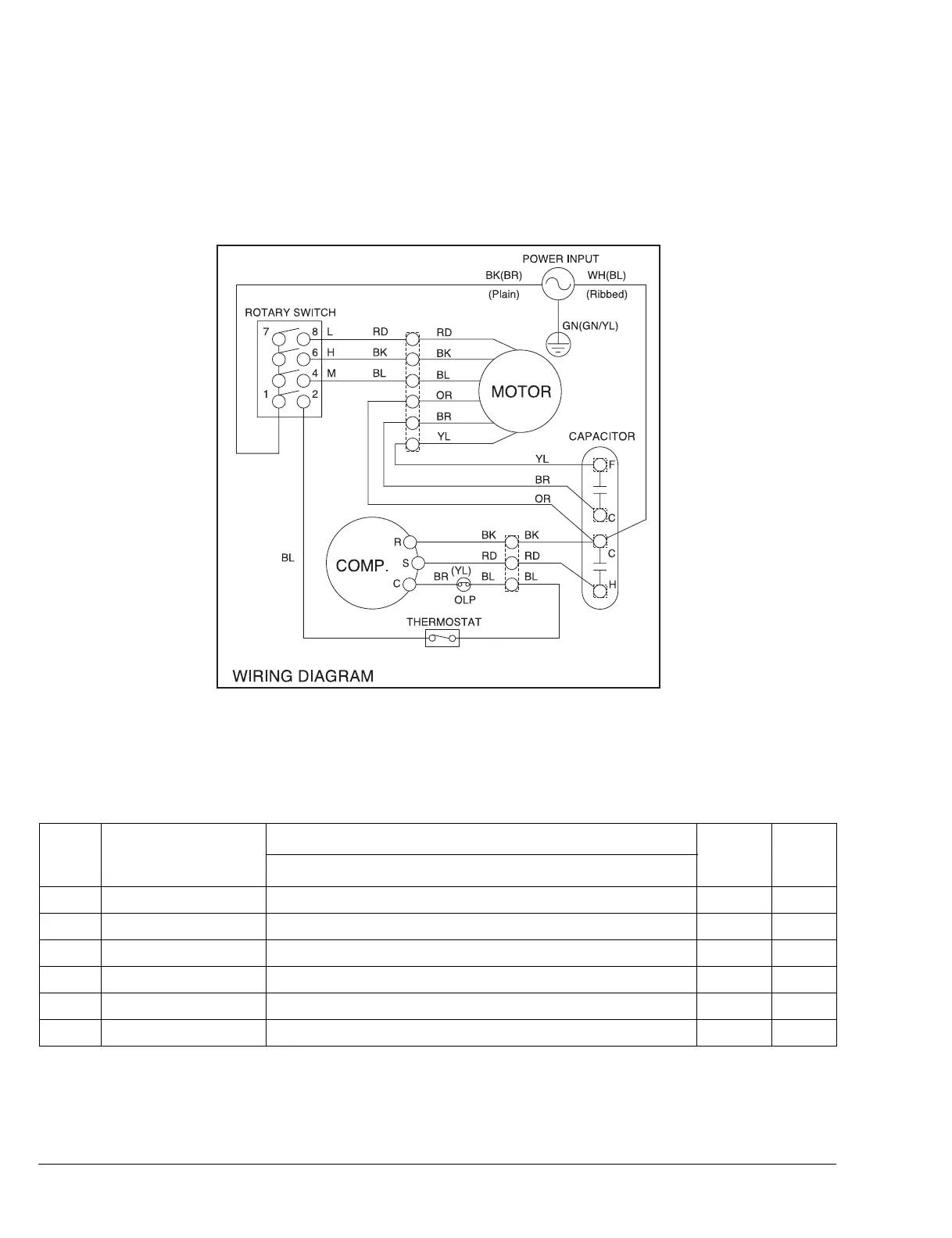

5.2 CIRCUIT DIAGRAM
■ MODEL : LC8000, LEA0810ACL
LC8000/LEA0810ACL
PART NO.
1 POWER CORD 6411A20011L 1 S
2 ROTARY SWITCH 2H00598E 1 S
3 FAN MOTOR 4681A20069A 1 S
4 CAPACITOR 6120AR2359H 1 S
5 THERMOSTAT 2H01109M 1 S
6 COMPRESSOR
2520UAGC2AA 1S
LOCATION
NO.
DESCRIPTION
RE-
MARKS
Q'TY
PER SET
S: Service Parts
N: Non Service Parts
