2.2 AIR HANDLING PARTS
2.2.1 AIR GUIDE AND TURBO FAN
1. Remove the front grille. (Refer to section 2.1.1)
2. Remove the cabinet. (Refer to section 2.1.2)
3. Remove the control box. (Refer to section 2.1.3)
4. Remove the 4 screws which fasten the brace.
5. Remove the brace.
6. Remove the 2 screws which fasten the upper air
guide. (See Figure 4)
7. Remove the upper air guide.
8. Remove the 2 screws which fasten the
evaporator.
9. Move the evaporator forward and pulling it upward
slightly. (See Figure 5)
10. Remove orifice by pulling two taps.
11. Remove the clamp with a hand plier which
secures the turbo fan.
12. Remove the turbo fan. (See Figure 6)
13. Remove the motor. (Refer to section 2.3.7)
14. Remove the 2 screws which fasten the lower air
guide from the base pan.
15. Remove the 2 screws which fasten the motor
mount from the base pan.
16. Remove the 2 screws which fasten the lower air
guide and motor mount.
17. Move the lower air guide backward and pull out
from the base pan. (Move the lower air giude
carefully.)
18. Re-install the components by referring to the
removal procedure, above.
2.2.2 FAN
1. Remove the cabinet. (Refer to section 2.1.2)
2. Remove the brace (Refer to section 2.2.1)
3. Remove 6 screws which fasten the condenser.
4. Move the condenser to the right carefully.
5. Remove the clamp with a hand plier which secures the
fan.
6. Remove the fan. (See Figure 7)
7. Re-install by referring to the removal procedure.

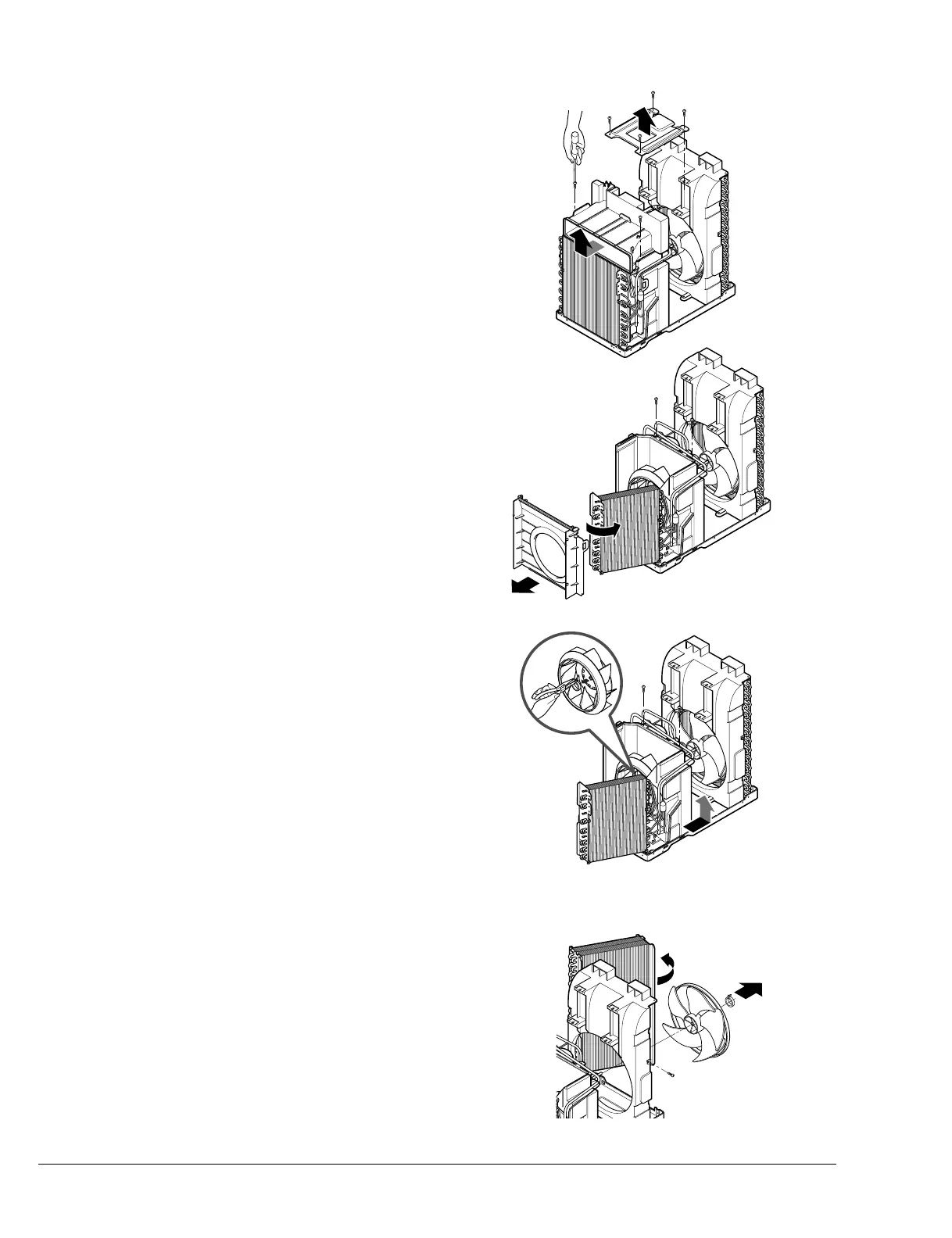

Figure 4
Figure 5
Figure 6
Figure 7
