- 7 -

Only for training and service purposes

LGE Internal Use Only

2.2.3 SHROUD

1. Remove the fan. (Refer to section 2.2.2)

2. Remove the shroud. (See Figure 8)

3. Re-install the components by referring to the

removal procedure, above.

2.3 ELECTRICAL PARTS

2.3.1 OVERLOAD PROTECTOR

1. Remove the cabinet. (Refer to section 2.1.2)

2. Remove the nut which fastens the terminal cover.

3. Remove the terminal cover. (See Figure 9)

4. Remove all the leads from the overload protector.

5. Remove the overload protector.

6. Re-install the components by referring to the

removal procedure, above.

2.3.2 COMPRESSOR

1. Remove the cabinet. (Refer to section 2.1.2)

2. Discharge the refrigerant system using a Freon

Recovery System.

If there is no valve to attach the recovery system,

install one (such as a WATCO A-1) before venting

the Freon

. Leave the valve in place after

servicing the system.

3. Remove the overload protector. (Refer to section

2.3.1)

4. After purging the unit completely, unbraze the

suction and discharge tubes at the compressor

connections.

5. Remove the 3 nuts and the 3 washers which

fasten the compressor.

6. Remove the compressor. (See Figure 10)

7. Re-install the components by referring to the

removal procedure, above.

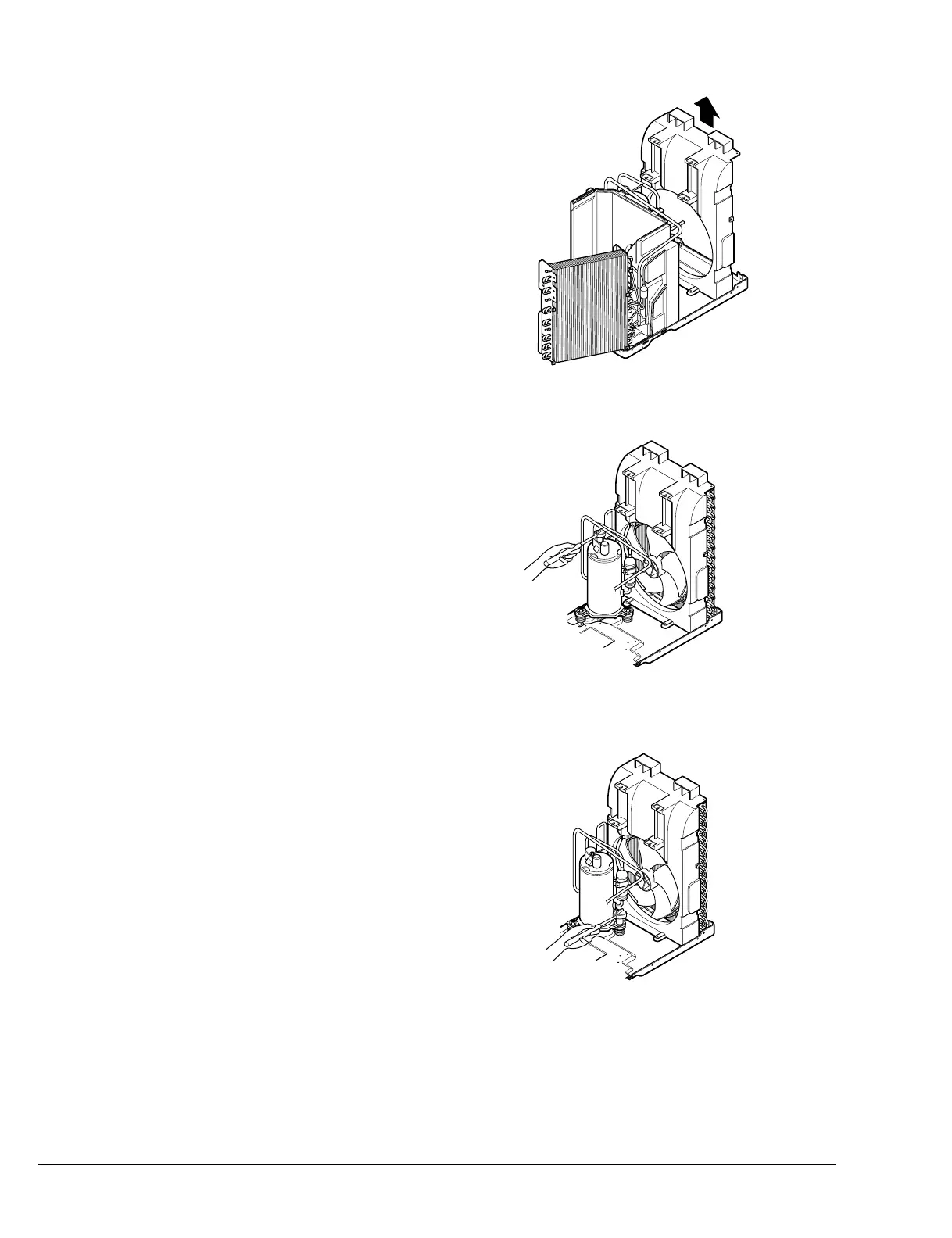

Figure 8

Figure 9

Figure 10
