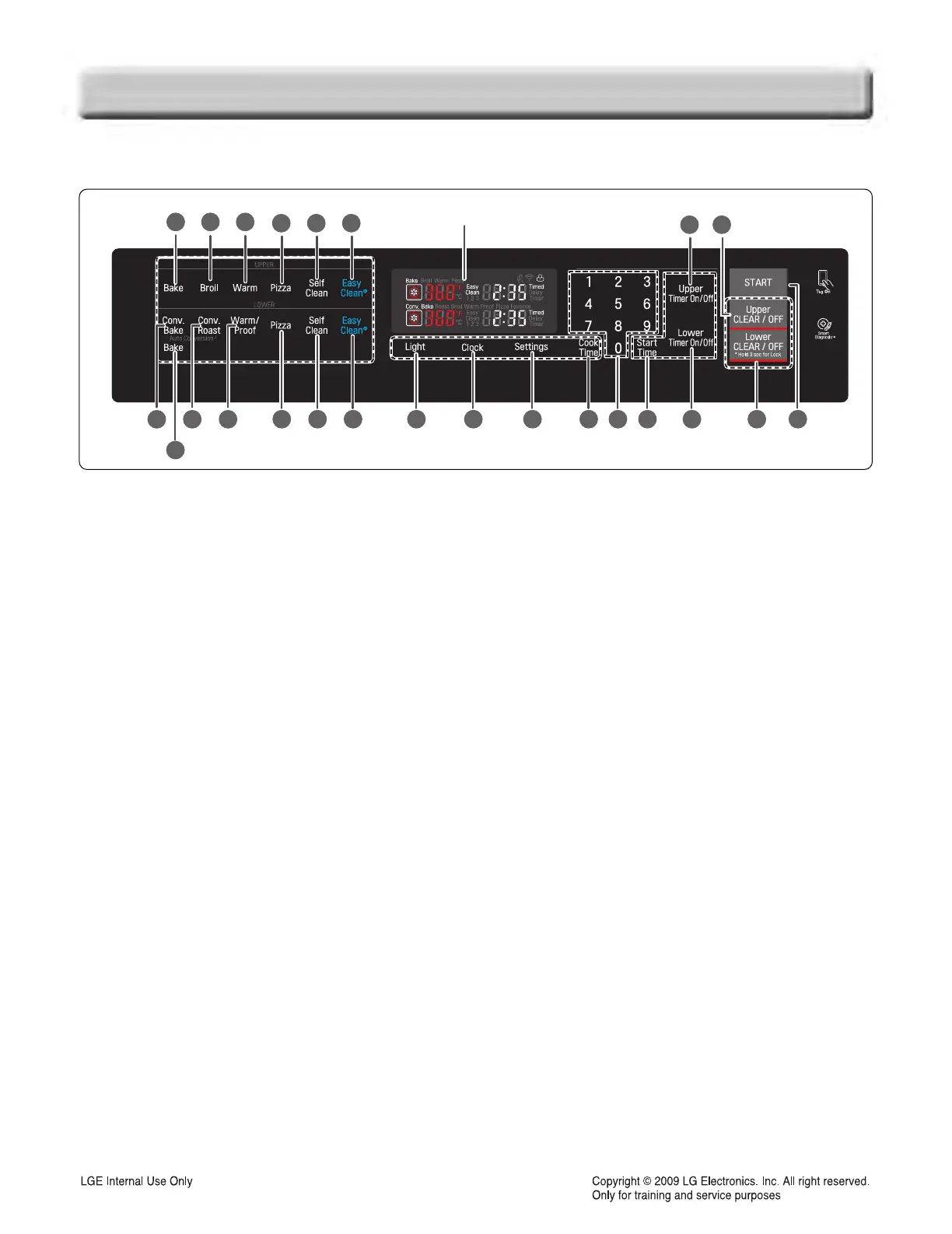

USING YOUR RANGE
CONTROL P
CONTROL P
ANEL FEA
ANEL FEA
TURES
TURES
1
2
3
4 5 6
Display
7 8
2019
18
141312
15
1716
23
2221
24
11109
Upper oven
1. BAKE: Use to select the Bake function of the upper
oven.
2. BROIL: Use to select the Speed Broil function of the
upper oven.
3. WARM: Use to select the Warm function of the upper
oven.
4. PIZZA: Use to select the Pizza function of the upper
oven.
5. UPPER SELF CLEAN: Use to select the Self Clean of
the upper oven.
6. UPPER EASY CLEAN: Use to select the Easy Clean
of the upper oven.
7. UPPER TIMER ON/OFF: Use to set or cancel the timer
of the upper oven.
8. UPPER CLEAR OFF: Use to stop cooking, cancel
settings of the upper oven.
Lower oven
9. CONV.BAKE: Use to select the Conv. Bake function of the
lower oven.
10. CONV.ROAST: Use to select the Conv. Roast
function of the lower oven.
11. WARM/PROOF: Use to select the Warm/Proof
function of the lower oven.
12. PIZZA: Use to select the Pizza function of the lower
oven.
13. LOWER SELF CLEAN: Use to select the Self Clean
of the lower oven.
14. LOWER EASY CLEAN: Use to select the Easy
Clean of the lower oven
15. BAKE: Use to select the Bake function of the lower
oven.
16. LOWER TIMER ON/OFF: Use to set or cancel the
timer of the lower oven.
17. LOWER CLEAR OFF: Use to stop cooking, cancel
settings of the lower oven.
To activate LOCKOUT press and hold for 3 seconds.
Common function
18. LIGHT: Use to turn the Oven lights of the oven on
and off.
19. CLOCK: Use to set the time of day.
20. SETTINGS: Use to change the oven settings
21. COOK TIME: Use to set the length of the cook time.
(Bake, Conv. Conv.Roast only)
22. NUMER PADS: Use to enter a temperature and all
times.
23. START TIME: Use to set delay time. (Bake, Conv.
Conv.Roast, Self clean only)
24. START: Use to START all functions in the oven.
