3-4
COMPONENT ACCESS

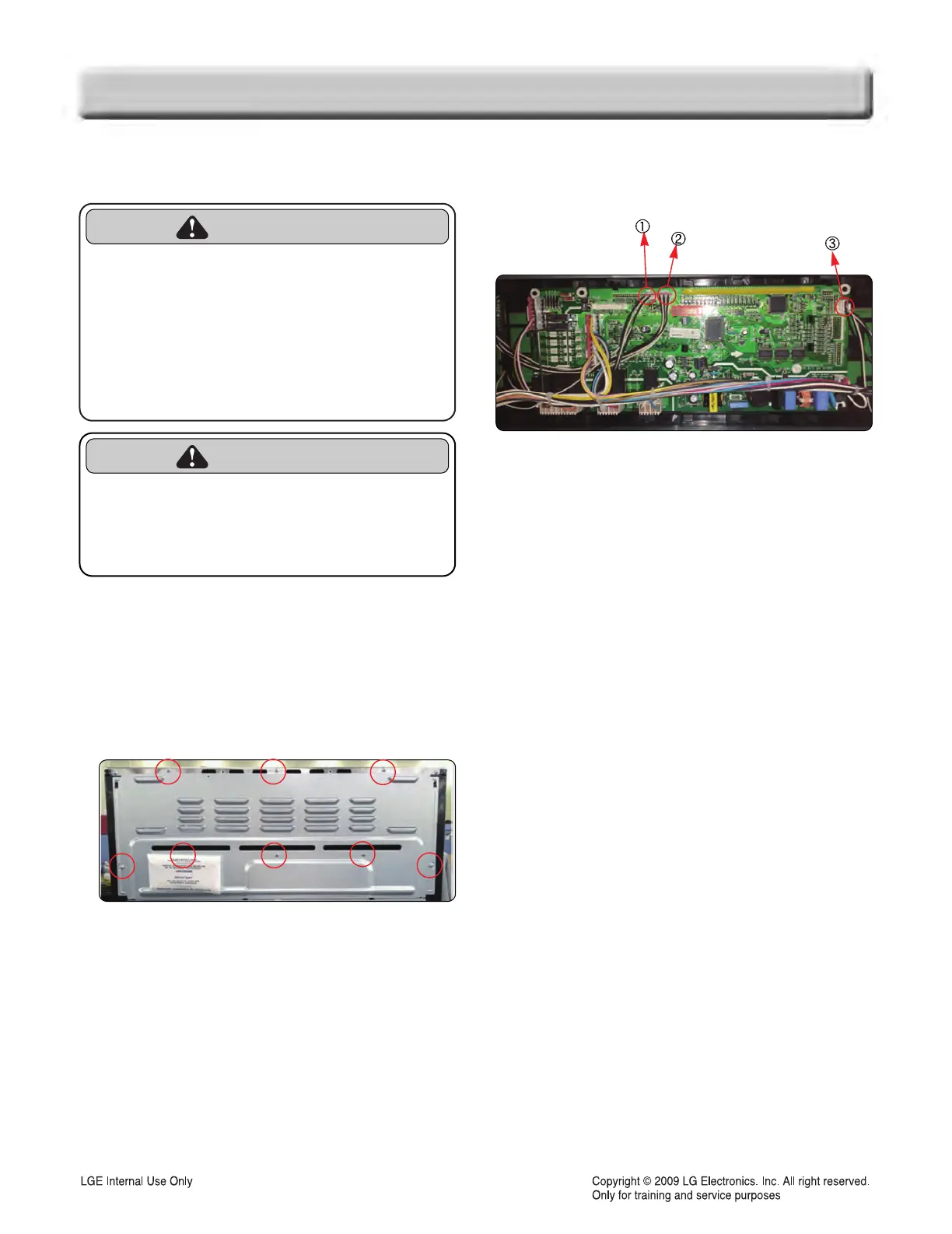

SERVICE INSTRUCTIONS (SIGNAL WIRE)
SERVICE INSTRUCTIONS (SIGNAL WIRE)
INSTRUCTIONS:
If you want to replace the signal harness, refer to
the above picture.
①①
NFC to Main PCB
②②
Buzzer PCB to Main PCB
③③
Touch PCB to Main PCB
1. Turn off the electrical supply and gas supply
going to the range.
2. Pull the range away from the wall so that you can
access the rear panel.
3. Remove the 8 screws from the rear control cover
and remove the cover.
WARNING
• DISCONNECT power supply cord
from the outlet before servicing.
• Replace all panels and parts before
operating.
• RECONNECT all grounding devices.
- Failure to do so can result in severe personal
injury, death or electric shock.
CAUTION
•
Be careful when you work on the gas
range handling the sheet metal part.
- Sharp edge may be present and you can cut
yourself.
To Next Page
