a VIDEO INPUT
Connect the camera’s video output to these
BNC connectors.
b LOOP OUT
The signal from VIDEO INPUT connector is
looped out to this connector.
c Power Cord Inlet (AC IN)
Connect the power plug.
d RS-422/485 Terminals
Connect RS422/485 compatible cameras.
Connect the LKD1000 controller to DATA2 ter-
minal.
e RS-232C Connector
Used to connect to a host device equipped with
RS-232C connector (such as a personal com-
puter). This unit can be controlled from other
devices via this connector.
f RELAY-OUT Terminals
Output terminals for alarm(relay) signal.
g
AUDIO INPUT
Connect the audio output of an external device.
h SPOT-OUT (BNC Type Connector)
Connect to spot monitor or display device.
i LAN Port
Connect the ethernet 10/100Mbps network
cable for controlling this unit via a PC network.
j MAIN-OUT (BNC Type Connector)
Connect to main monitor or display device.
k AUDIO OUT
Connect the audio input signal of an external
device.
l VGA
Connect a VGA monitor.
m USB Ports
Connect an optional extension USB device.
n ALARM-IN Terminals
Input terminals for alarm(relay) signal.

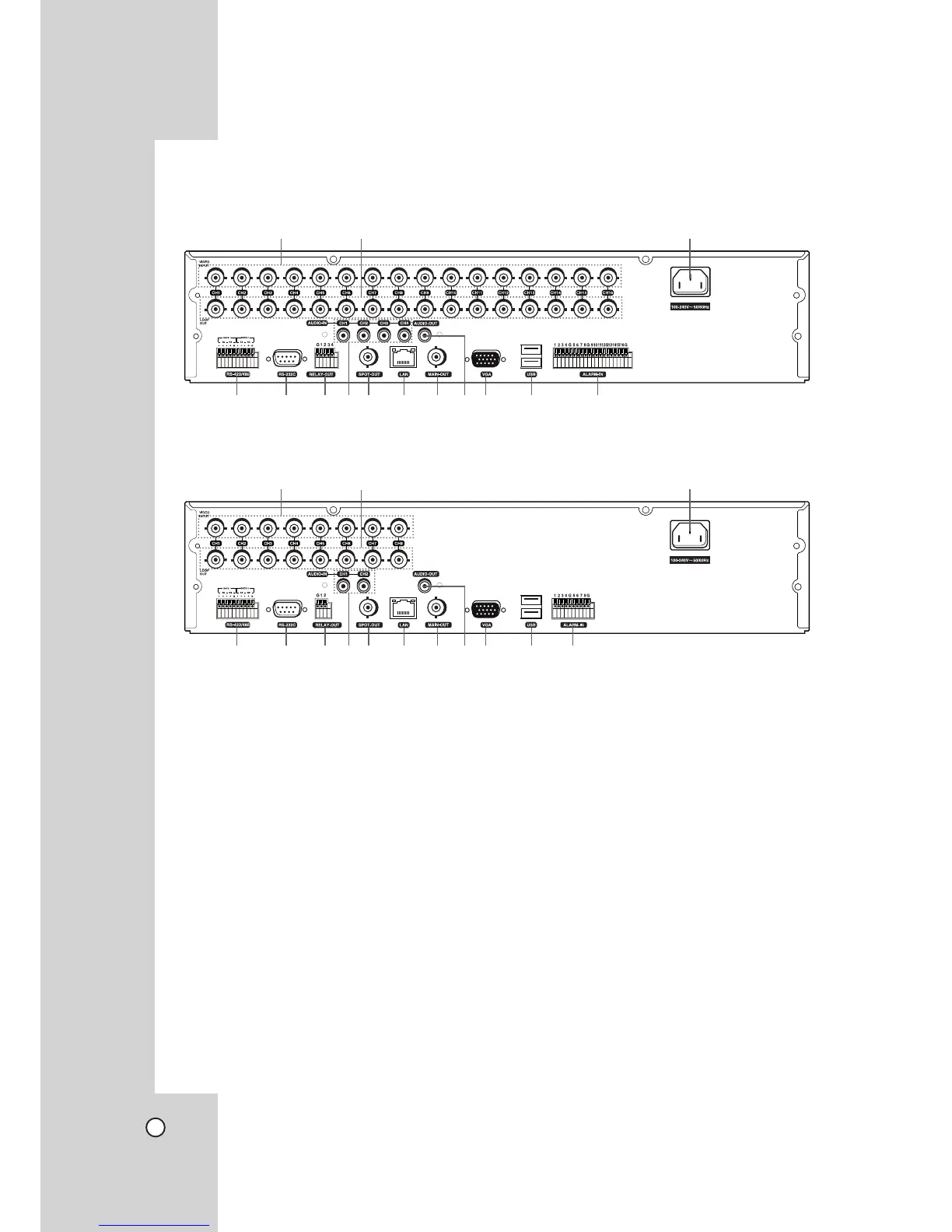

Rear Panel
x LE3116D/LE2116D
x LE3108D/LE2108D
ab c
defghijklm n
ab c
defghijklmn
