27

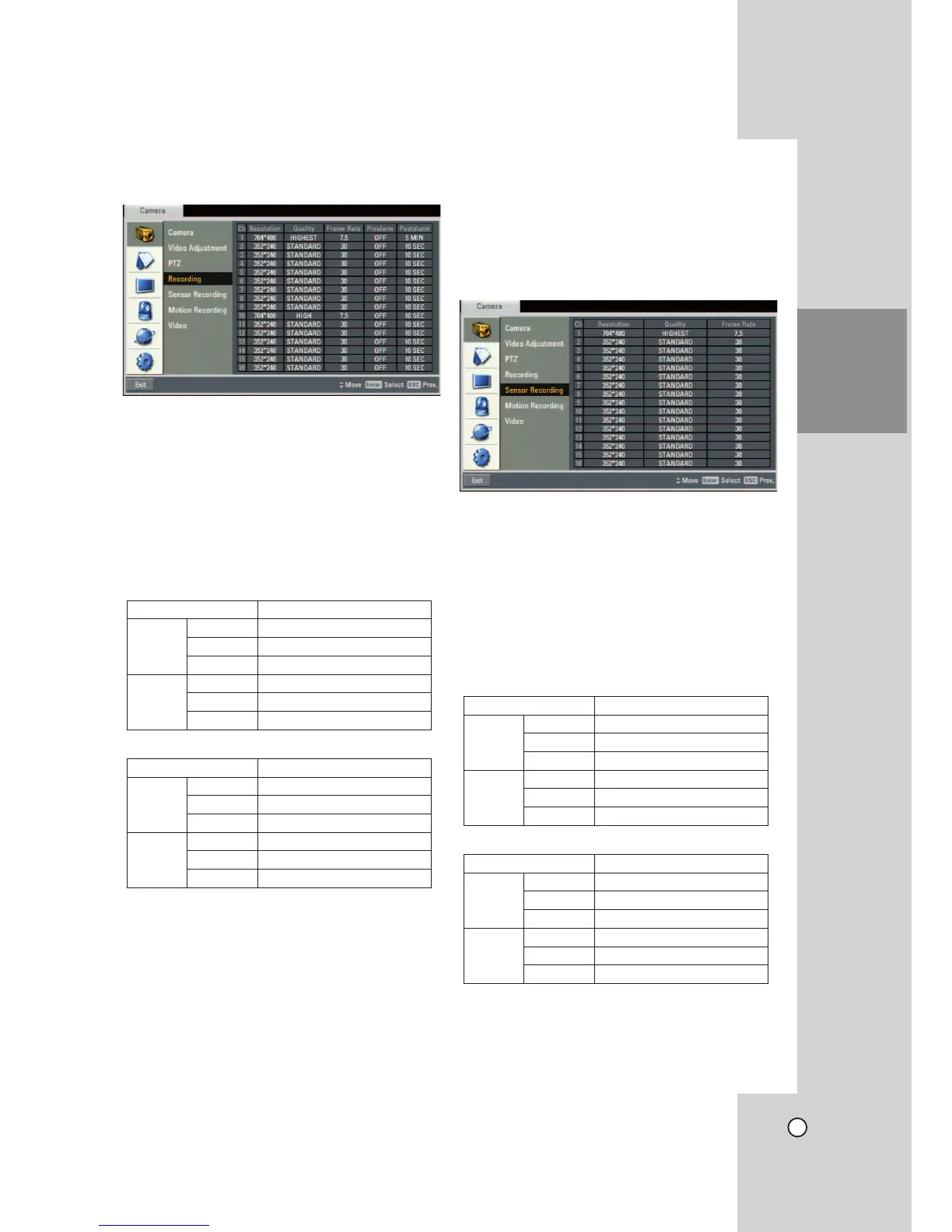

Recording
Settings concerning normal recording.
z Ch: Displays the channel number.
z Resolution: Selects the recording resolution.
z Quality: Selects the recording picture quality
(LOWEST, LOW, STANDARD, HIGH or
HIGHEST).
z Frame Rate: Selects the frame rate. The frame
rate is the number of recorded frames per second.
According to resolution, the frame rate is set
automatically. If you wish to set manually, refer to
the below.
LE3116D/LE3108D model
Resolution Frame Rate
NTSC
352*240 1, 3, 5, 7.5, 15, 20, 30
704*240 1, 3, 5, 7.5, 15
704*480 1, 3, 5, 7.5
PAL
352*288 1, 3, 5, 6, 12.5, 20, 25
704*288 1, 3, 5, 6, 12.5
704*576 1, 3, 5, 6
LE2116D/LE2108D model
Resolution Frame Rate
NTSC
352*240 1, 3, 5, 7.5, 15
704*240 1, 3, 5, 7.5
704*480 1, 3
PAL
352*288 1, 3, 5, 6, 12.5
704*288 1, 3, 5, 6
704*576 1, 3
z Prealarm: Specify the pre-event recording time that
records the situation until the sensor alarm signal
has input or motion has been detected. (OFF, 5,
10, 20, 30, 40, 50 or 60 SEC)
z Postalarm: Specify the post-event recording time
that records the situation from when the sensor
alarm signal has input or motion has been detect-
ed. (10, 20, 30, 40, 50 SEC or 1, 2, 3, 5, 10 MIN)
-
-
Note:
The setting values of Prealarm and Postalarm
options are also used as the same ones for Sensor
Recording and Motion Recording function.
Sensor Recording
Settings concerning sensor recording.
z Ch: Displays the channel number.
z Resolution: Selects the recording resolution.
z Quality: Selects the recording picture quality
(LOWEST, LOW, STANDARD, HIGH or
HIGHEST).
z Frame Rate: Selects the frame rate. The frame
rate is the number of recorded frames per second.
According to resolution, the frame rate is set
automatically. If you wish to set manually, refer to
the below.
LE3116D/LE3108D model
Resolution Frame Rate
NTSC
352*240 1, 3, 5, 7.5, 15, 20, 30
704*240 1, 3, 5, 7.5, 15
704*480 1, 3, 5, 7.5
PAL
352*288 1, 3, 5, 6, 12.5, 20, 25
704*288 1, 3, 5, 6, 12.5
704*576 1, 3, 5, 6
LE2116D/LE2108D model
Resolution Frame Rate
NTSC
352*240 1, 3, 5, 7.5, 15
704*240 1, 3, 5, 7.5
704*480 1, 3
PAL
352*288 1, 3, 5, 6, 12.5
704*288 1, 3, 5, 6
704*576 1, 3
-
-
