3. DISASSEMBLY
3-1 Removing Refrigerator Door
CAUTION : 
3. DISASSEMBLY
- 5 -
●
Left Door -FIG. 1&2
1.
Open door. Loosen top hinge cover screw (1).
Use flat tip screwdriver to pry back hooks on front underside of cover (2). Lift up cover.
2.
Disconnect door switch wire harness and remove the cover.
3. Disconnect all wire harnesses (3). Remove the grounding screw (4).
4. Rotate hinge lever (5) counterclockwise. Lift top hinge (6) free of hinge lever latch (7).
5. Lift the left refrigerator door until it is free of the middle hinge assembly and remove door.
6.
Place the door with the insides facing up, on a not scratch surface.
CAUTION: When lifting hinge free from the latch, be careful that door does not fall forward.
●
Right Door -FIG. 3&4
1. Open the door, Loosen top hinge cover screw (1). Lift up cover (2).
2.
Disconnect all wire harnesses (3).
3. Remove the grounding screw (4)
4. Rotate hinge lever (5) clockwise. Lift top hinge (6) free of hinge lever latch (7).
5.
Lift the right refrigerator door until it is free of the middle hinge assembly and remove door.
6.
Place the door with the insides facing up, on a not scratch surface.
CAUTION: When lifting hinge free from the latch, be careful that the door does not fall forward.

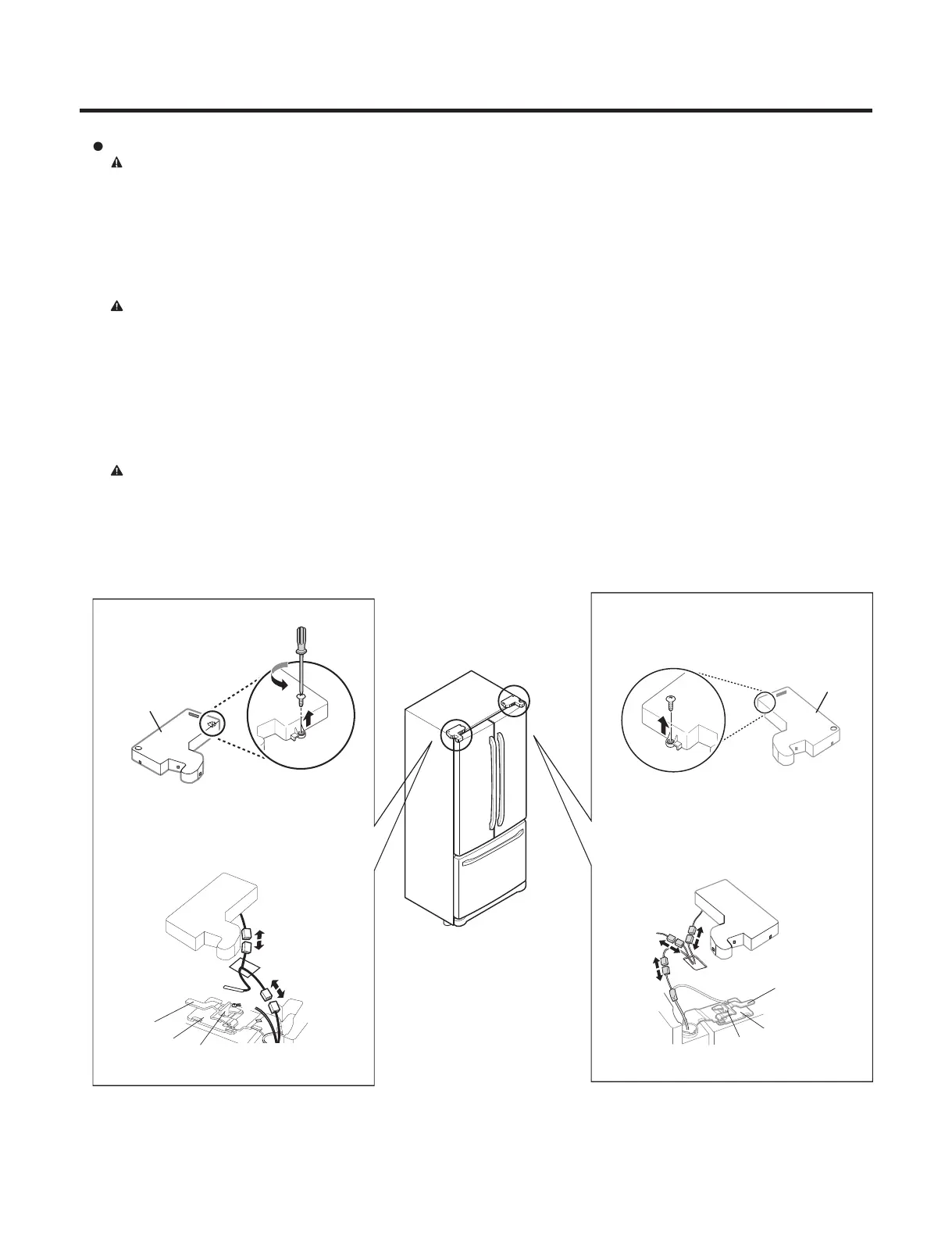

Figure 1
Figure 2
(1)
(2)
(3)
(4)
(6)
(7)
(5)
Figure 3
Figure 4
(1)
(2)
(3)
(4)
(5)
(6)
(7)
