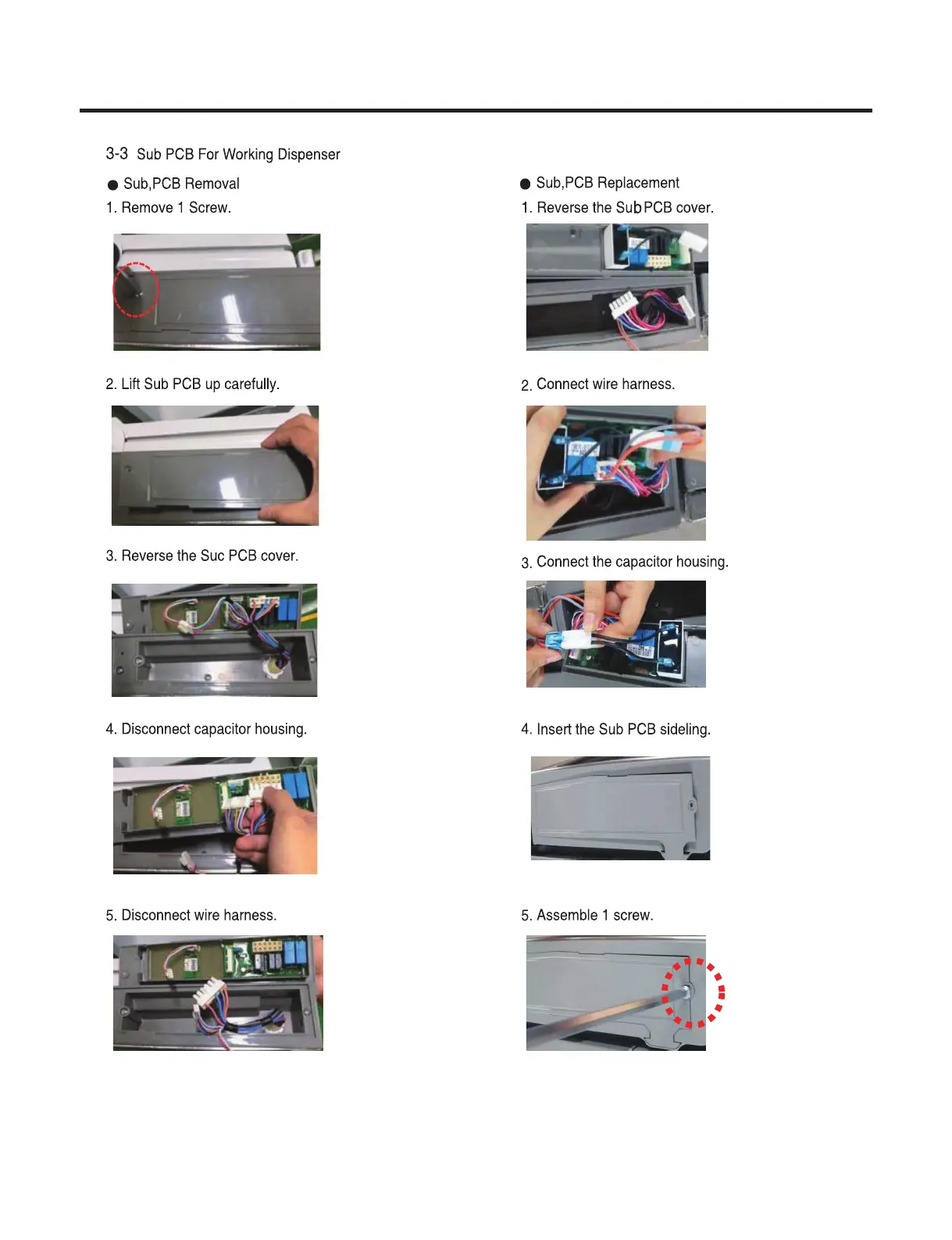

LG LFCC22426S - Sub Pcb

-7-
- 6 -
1. Remove gasket


3-2 DOOR

Mullion Removal
1. Remove 2 screws.

Door Gasket Removal
2. Lift Mullion up carefully.
3. Disconnect wire harness.

Door Gasket Replacement
1. Insert gasket into channel


2. Insert mullion into the channel.


Mullion Replacement
1. Connect wire harness.
3. Assemble 2 screws.
Figure 1
Figure 2
Figure 3
Figure 4
Figure 5
Figure 6
Figure 7
Figure 8
