-9-
- 8 -
˜
†
‘
’
€
•
‡†
‡‘ ‡’
‡€ ‡•

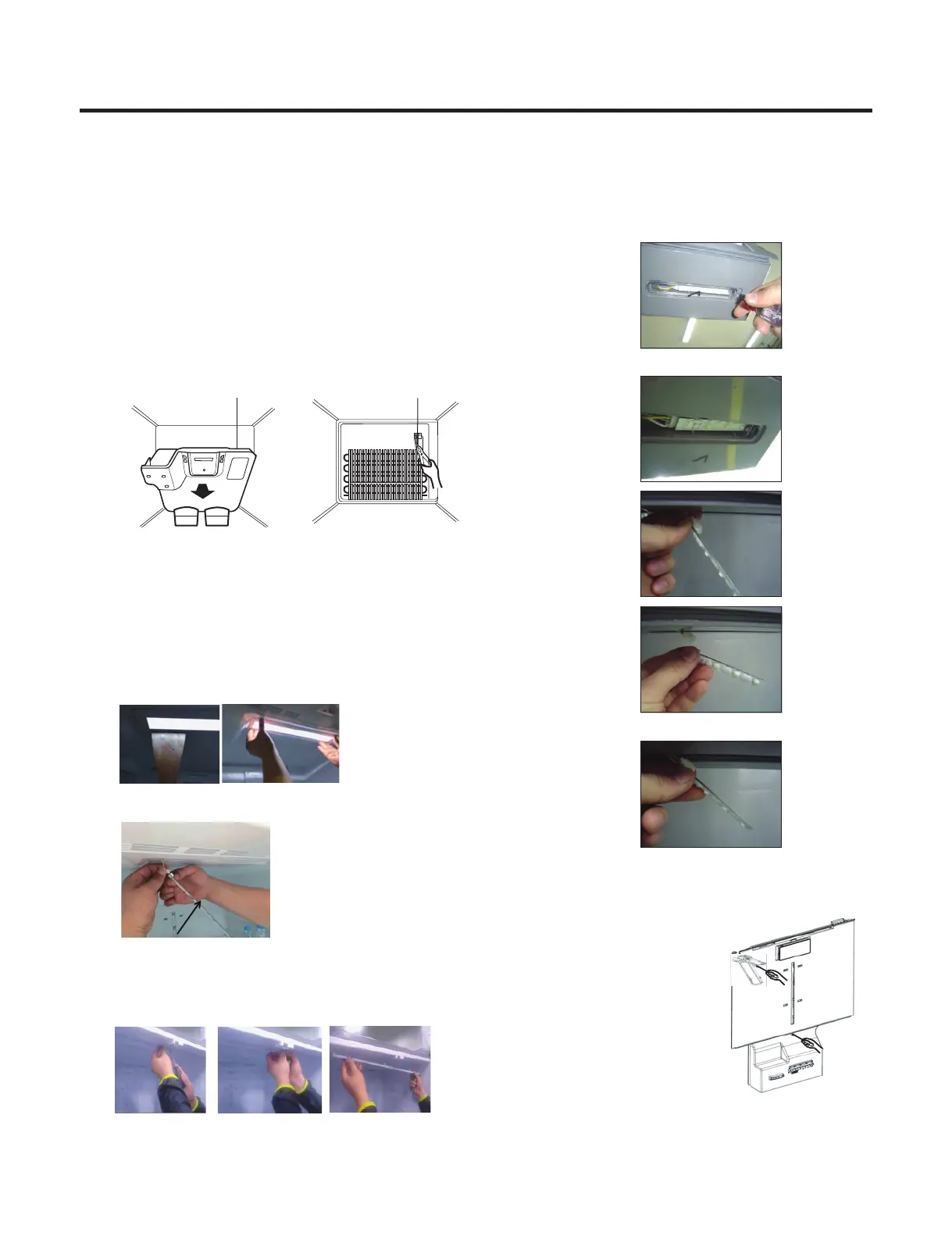

3-6 DEFROST CONTROL ASSEMBLY
Figure 12
Figure 13
3-4 Door Alignment
3-5 FAN AND FAN MOTOR(EVAPORATOR)
⁄fl‹f
Figure 9
Figure 10
Figure 11
3-7-2 Cap Decor LED LAMP(Bottom)
7RUHPRYHWKH/('DVVHPEO\
/('$VVHPEO\
5HPRYHWKHVFUHZDWWKH
&HQWHURI'XFW0XOWL
5HPRYHWKHVFUHZDQG
FRYHUILOWHU
'LVFRQQHFWWKHOHDGZLUH
RQWKHERWWRPSRVLWLRQ
3-6 DEFROST CONTROL ASSEMBLY
3-7 Lamp
3-7-1 Refrigerator Compartment Lamp
1) Pull out cover lamp as using sharp-edged tool.
Unplug, or disconnect power at the circuit breaker.
If necessary, remove top shelf or shelves.
Defrost Control assembly consists of Defrost Sensor and
FUSE-M.
The Defrost Sensor works to defrost automatically. It is
attachd to the metal side of the Evaporator and senses its
temperature. At 46℉(8℃), it turns the Defrost Heater off.
FUSE-M is a safety device for preventing over-heating of
the Heater when defrosting.
1. Pull out the grille assembly.
2. Separate the connector with the Defrost Control
assembly and replace the Defrost Control assembly after
cutting the Tie Wrap.
3Decor Duct(Grille) SVC.
Remove the Decor Duct with tools like flat-head
screwdriver.
3-8 Multi Duct
1. Unplug refrigerator power cord from electric outlet.
2. Open the refrigerator door to need diassembly.
3. Put flat screwdriver into service hole, remove the cover
of cap decor LED LAMP.
5. Replace LED assembly.
6. Assembly the cover in reverse order.
4. Remove the LED assembly from connector.
To Next Page
