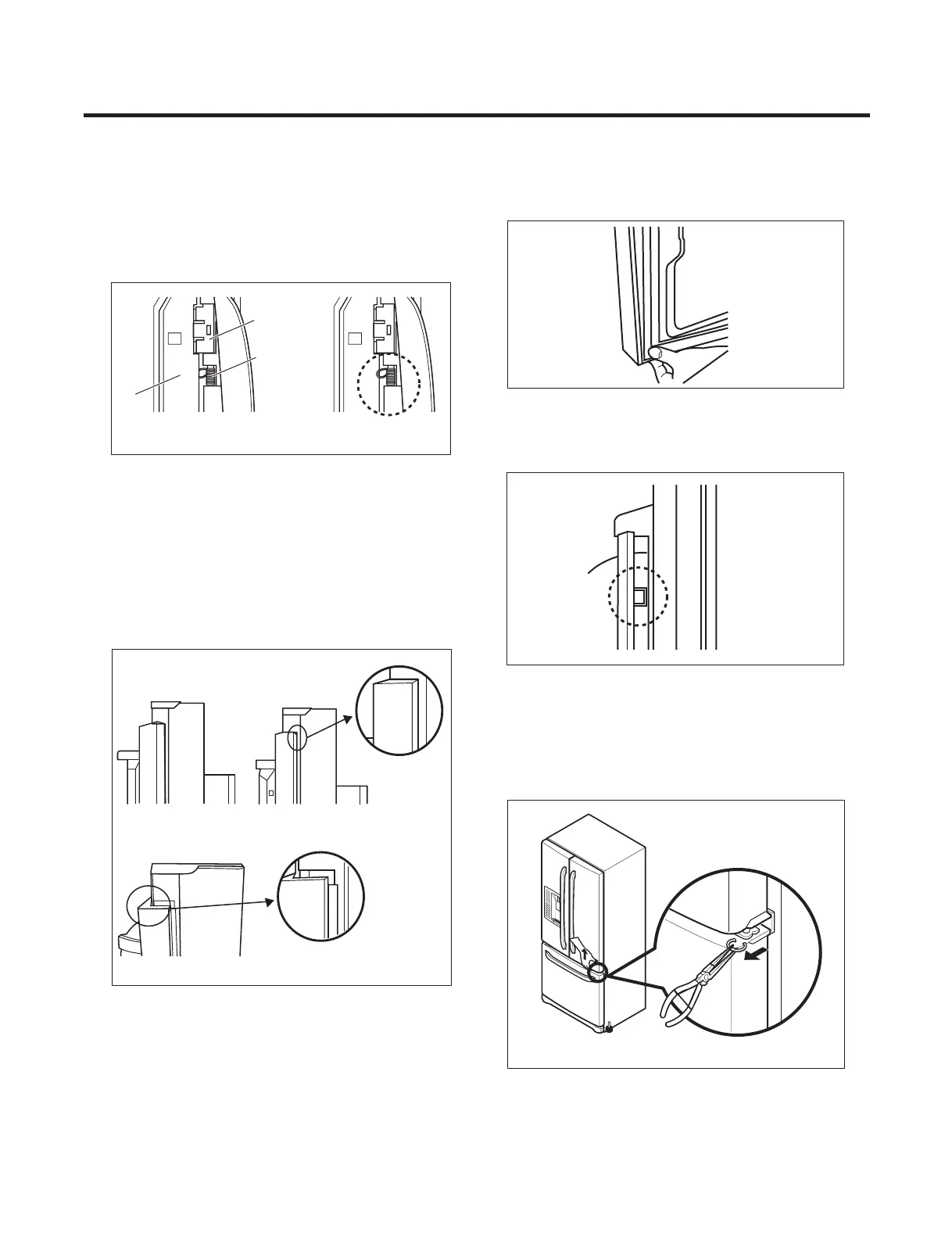

1. Insert gasket bracket clips
1) Insert gasket bracket edge beneath door frame edge.
2) Turn upper gasket bracket spring so that the spring
ends are in the door channel.
3) Push in clip until you hear it snap securely into place.
4) Push in remaining clip until you hear it snap securely
into place.
Note: Make sure that no part of gasket bracket edge
protrudes from beneath door frame edge.
2. Insert gasket into channel
1) Snap gasket assembly into the door bracket.
<Inserting the Gasket Assembly into the Bracket Door>
Door
Frame
Gasket
Bracket Clip
Spring
IncorrectCorrect
Incorrect
Correct
- 8 -
3-5 DOOR GASKET REPLACEMENT
2) Press gasket into channels on the three remaining
sides of door.
3) Replace door frame cover
Starting at top of cover and working down, snap cover
back into door.
If fridge door are uneven,
• Use the wrench to adjust the bolt in the door hinge to adjust
the height.(CCW to raise or CW to lower the height.)
3-6 DOOR ALIGNMENT
