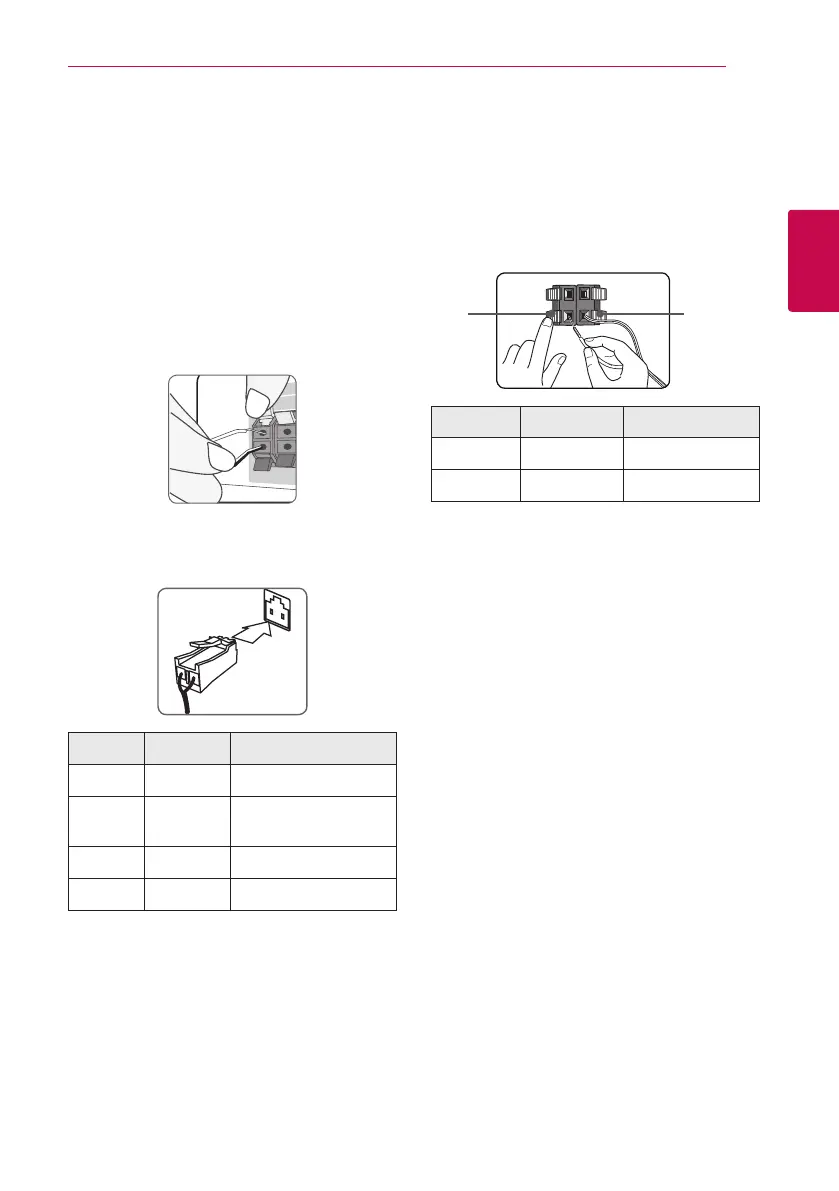

Speaker Connection

Attaching the speakers to the

player

1. Connect speaker wires to the player.

Each speaker wire is color-coded. Use matching

color wires for corresponding speakers.

Make sure the wire marked black goes in to the

terminal marked “–” (minus) and the other wire

goes in to the terminal marked “+” (plus).

Connect a woofer cord to the player. When

connecting a woofer cord to the player, insert

the connector until it clicks.

Color Speaker Position

Green Center Center

Orange

Sub

woofer

Any front position

Red Front Front right

White Front Front left

2. Connect the speaker wire to the terminal on the

speaker.

Make sure the wire marked black goes in to the

terminal marked “–” (minus) and the other wire

goes in to the terminal marked “+” (plus).

Attaching the rear speakers to

the wireless receiver

Connect the rear speakers to the wireless receiver

with the speaker cords.

Make sure the wire marked black goes in to the

terminal marked “–” (minus) and the other wire

goes in to the terminal marked “+” (plus).

(+)

(-)

Color Speaker Position

Grey Rear right Rear right

Blue Rear left Rear left
