LG LMV1852ST User Manual

– 14 –

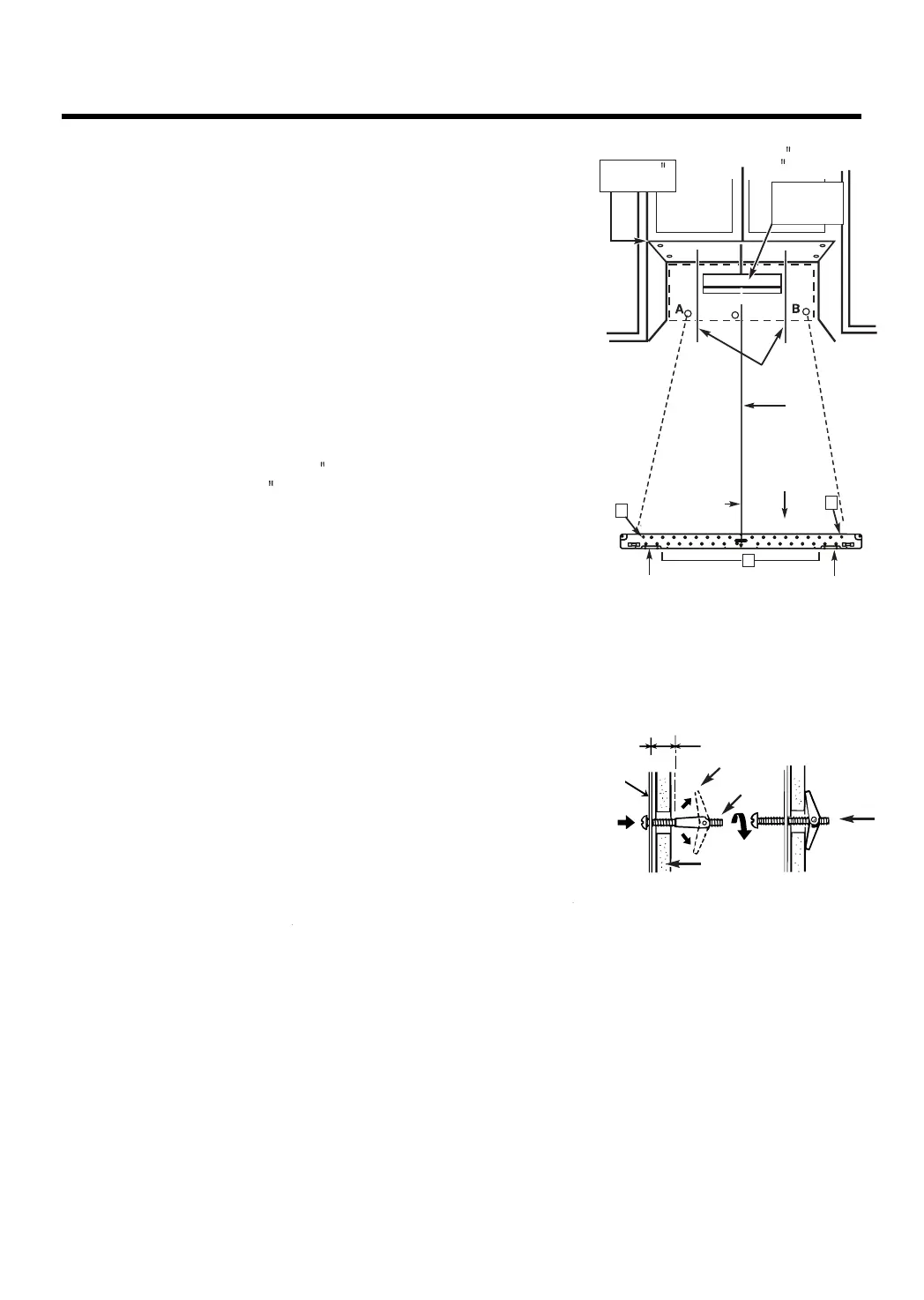

STEP 5: Install The Mounting Plate
C
B
A
The Oven Must Be Connected To At Least One
Wall Stud.
4. Attach the plate to the wall. To use spring toggle head bolts:
Remove the toggle wings from the bolts. Insert the bolts into
the mounting plate and replace the spring toggle head to 3/4
past the bolt ends. Insert the spring toggle head into the
holes in the wall to mount the plate. You may pull forward on
the plate to help in tightening the toggle bolts. Tighten all
bolts. See Figure 31.
3. Remove the template from the rear wall.
1. Center the rear wall template in the space by lining up the
plumb line on wall with centerline on template.Then securely
tape or tack the rear wall template in place.Make sure the
minimum width is 30 inches and that the top of the rear
wall template is located a minimum of 30 inches above
the cooking surface. See Figure 26.
NOTE: If the cabinets are not plumb, adjust the rear wall
template to the cabinets. If the front edge of the
cabinet is lower than the back edge, adjust the
template to be level with the cabinet front.
a stud. If there is a stud, drill a 3/16 hole for lag screws.
If there is no stud, drill a 5/8 hole for toggle bolts.
These holes must be used for mounting. If the holes are
not used, the installation will not be secure. Installer must
use these holes for proper installation. See Figure 30.
Use toggle bolts through these holes, unless one of them
lines up with a stud. Use a wood screw for studs.
Make sure to use at least 1 lag screw in a stud,
and 2 toggle bolts in the drywall or the plaster.
2. Drill holes at points A, B. Drill the third hole inside area C,
through one of the bottom holes to match the location of
NOTE: Cut out the shaded area marked F on the REAR
WALL TEMPLATE for wall-venting.
Figure 31
Figure 30
Wall
Mounting
Plate
Space More Than Wall Thickness
Bolt
End
Toggle Bolt
Toggle Wings1
3/16 Hole on Studs
5/8 Hole on Drywall Only
Minimum 66
From the Floor
For Wall -
Venting Only
Draw Lines
on Studs
Draw
Center Line
Center Line
Mounting Plate
Support Tab
Support Tab

LG LMV1852ST Specifications

General

Turntable	Yes
Control type	Touch
Product color	Stainless steel
Microwave power	- W
Appliance placement	Countertop
Number of power levels	10
Connected load	1000 W

Weight and Dimensions

Depth	381 mm
Width	736.6 mm
Height	406 mm
Weight	22000 g
