– 7 –

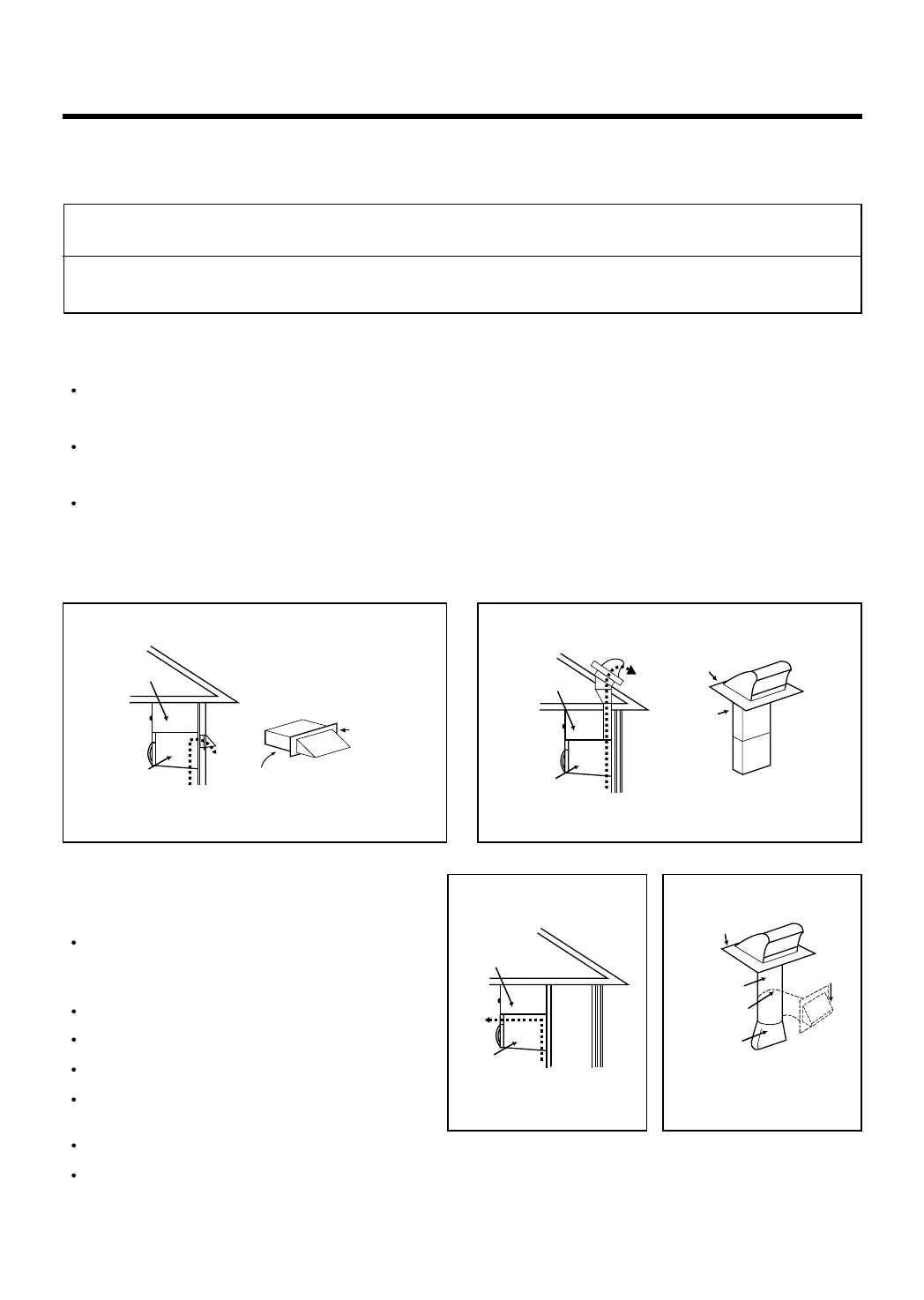

STEP 2: Prepare The Venting System
THIS OVEN MUST BE PROPERLY VENTED!
NOTE: The ductwork you need for outside ventilation is not included with your oven. The standard ductwork
fittings and length are shown in Figure 10, page 8.
You may vent your oven in one of three ways. However, do NOT vent into a wall cavity, an attic, or an unused
area.
Roof-venting If your oven is located on an outside wall near the roof, as in Figure 7 (3 1/4" x 10" duct) and
Figure 9 (6" round duct.)
Wall-venting If your oven is located on an outside wall of your house, as in Figure 6 (3 1/4" x 10" duct) and
Figure 9 (6" round duct.)
Room-venting If your oven is located on an inside wall of your house, as in Figure 8.
NOTE: If you choose the rear exhaust method (roof or wall-venting), be sure there is enough clearance within the
wall for the exhaust duct.
REMEMBER AS YOU INSTALL THE
VENTING:
Keep the length of the ductwork and the number
of elbows to a minimum to ventilate your oven
efficiently. See examples on page 8.
Keep the size of the ductwork the same.
Do not install two elbows together.
Use duct tape to seal all joints in the duct system.
Use caulking to seal the exterior wall or roof
opening around the cap.
Cabinet
Oven
Wall Mounting
Through-the-wall Duct
Wall Cap
3 1/4"x10"
Duct
Cabinet
Oven
Figure 6
Wall Venting
Through-the-roof
3 1/4"x10"
Duct
Roof Cap
Roof Venting
Cabinet
Oven
Figure 7
Roof Venting
Figure 8
Room Venting
6"min diameter
Round Duct
3 1/4" to Round
Duct Transition
3 1/4" to Round
Ductwork Transition
Roof Cap
Wall Cap
Elbow
Figure 9
W ARNING
w
After installation, you should check outside hood opening and operation.
When you install the oven, please refer to the Installation Manual.
For the outside hood opening position and size refer to the upper cabinet template or rear wall template.
